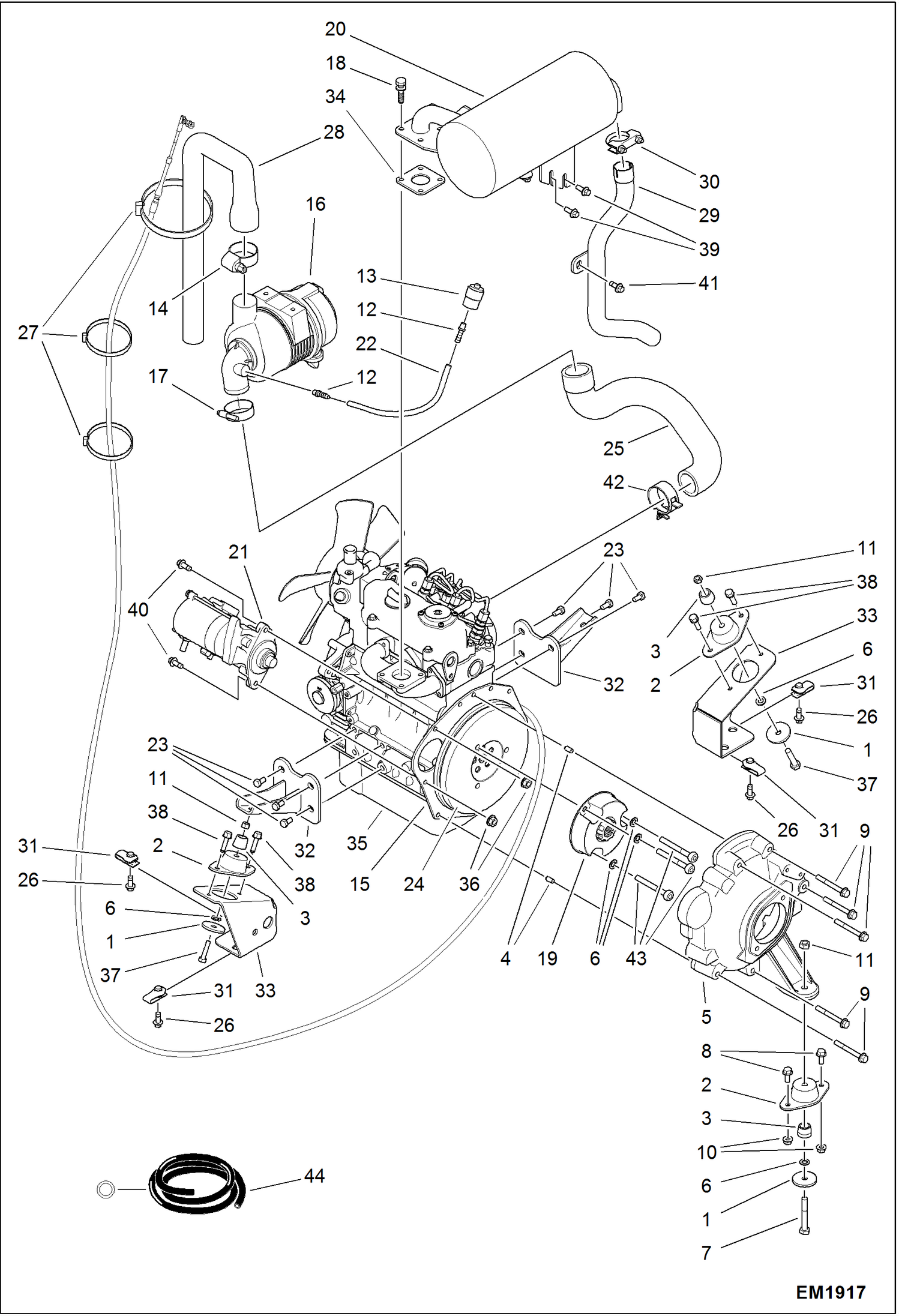

Запчасти Bobcat 321 ENGINE & ATTACHING PARTS (Air Cleaner, Muffler, Engine Mounts) POWER UNIT

1

872229

WASHER

2

6653764

MOUNT

3

6804522

SPACER

4

7101341

PIN

5

7103510

MACHINE PUMP MOUNT

6

15EM100

WASHER

7

1CM1070

BOLT

8

29CM820

SCREW

9

29CM870

BOLT

10

51DM8

NUT

11

53DM10

NUT

12

6505813

CONNECTOR

13

6515007

GAUGE

14

6557720

HOSE bulk - sold per foot

15

6683017

PLATE REAR END

16

6675529

FILTER See Illustration AIR FILTER/ EM6360

17

42HC250

CLAMP

18

4CM822

BOLT

19

6683843

COUPLER

20

6685916

MUFFLER W/Ref. 46

21

6688372

STARTER See Illustration STARTER/ EM1856

22

HOSE NLA - 11'' (279 mm) long - Order Ref. 14

23

6733378

SCREW

24

6979771

FLYWHEEL

25

6806886

HOSE

26

29CM1025

BOLT

27

6624289

STRAP, TIE

28

6808932

HOSE

29

7103246

TUBE

30

7108173

CLAMP

31

6675722

NUT

32

7116317

MOUNT ASSY, ENGINE

33

7145890

SUPPORT Was 7116319 - A

34

6680583

GASKET MUFFLER Was 6575580 - A

35

6686978

ENG, D722 13.9 HP EPA T2 / EU STG II W/Ref. 15, 24

36

43DM8

NUT

37

1CM1055

BOLT

38

26GM8016

SCREW

39

29CM816

SCREW

40

29CM830

CAPSCREW

41

29CM1020

BOLT

42

5HM53

CLAMP Was 5HM00053B - D

43

3GM1016

SCREW HEX SOCKT 12.9 Was 3GM01016B - D

44

42H32

HS CLAMP5
