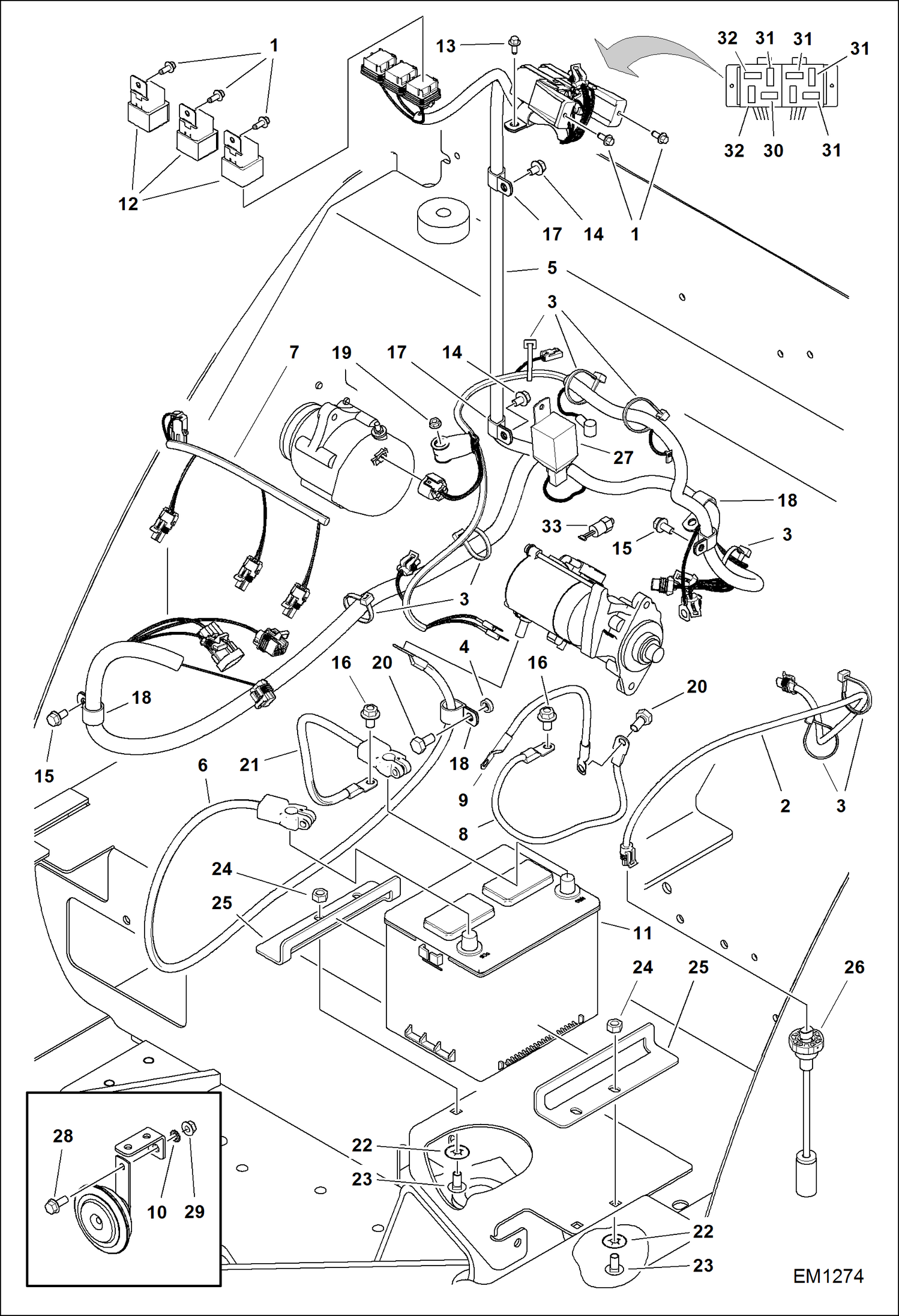

Запчасти Bobcat 321 ELECTRICAL INSTALLATION ELECTRICAL SYSTEM

1

6810157

BOLT

2

6587177

HARNESS

3

6624289

STRAP, TIE

4

6810385

BUSHING

5

7105065

HARNESS ENGINE

5

6567537

DIODE

6

7105068

CABLE, POSITIVE

7

7135650

HARNESS VALVE SWITCH

8

7141302

CABLE GND FRAME

9

7141303

CABLE GND STARTER

10

10EM80

WASHER

11

6670251

BATTERY, DRY 530 AMP 530 AMP Was 6669600 - D

12

6670312

SWITCH, MAGNETIC relay

13

26GM6016

SCREW

14

29CM812

BOLT

15

29CM816

SCREW

16

29CM1016

BOLT

17

30H38

CLIP

18

30H46

CLIP

19

43DM6

NUT

20

5CM1020

SCREW

21

6807431

CABLE

22

6675859

RETAINER

23

28CM816

BOLT

24

1DM8

NUT

25

7102619

CLAMP BATTERY

26

7179838

SENSOR FUEL Was 6680437 - A

27

6670872

TIMER

28

29CM820

SCREW

29

43DM8

NUT

30

6707620

FUSE, 10A MINI 5 10A

31

6707621

FUSE, 15A MINI 5 15A

32

6707622

FUSE, 20A MINI 5 20A
