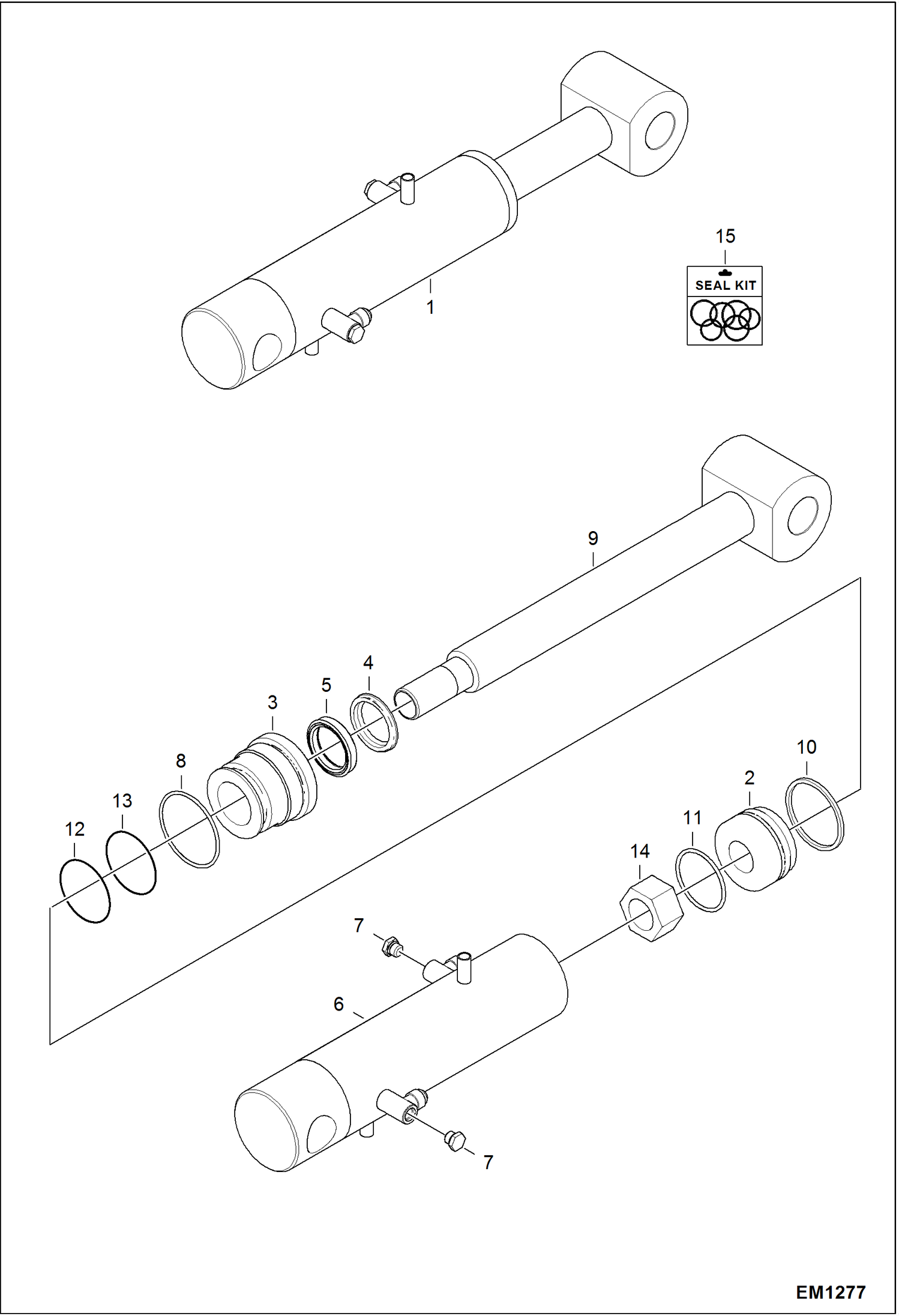

Запчасти Bobcat 321 BLADE CYLINDER HYDRAULIC SYSTEM

1

7114888

CYL ASSY 323 BLADE W/Ref. 2-16

2

6537256

PISTON

3

6537865

HEAD

4

6666543

WIPER, ROD CYL

5

6667325

SEAL

6

7114889

TUBE ASSY SERVICE W/Ref. 7-9

7

TUBE NLA - Order Ref. 6

8

6812170

PLUG W/ O-ring - W/Ref. 16

9

82K140

O-RING

10

7115054

SHAFT W/A

11

6519328

SEAL

12

54K30126

O-RING

13

54K60128

O-RING

14

73K328

RING

15

92D16

NUT

16

75K3

O-RING

17

7137785

KIT, SEAL CYLINDER W/Ref. 4-5, 9, 11-15
