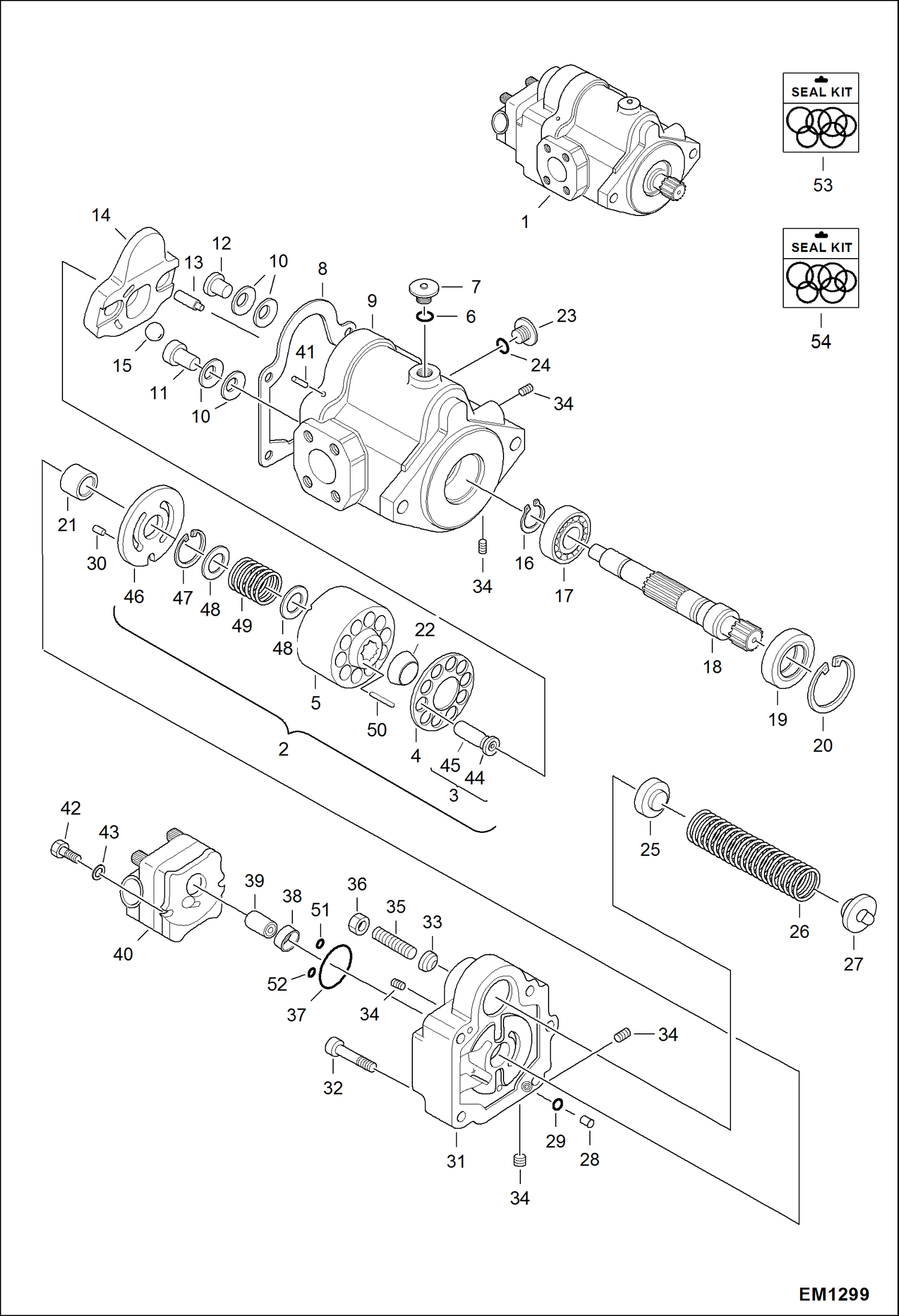

Запчасти Bobcat 321 HYDRAULIC PUMP HYDRAULIC SYSTEM

1

6688448

PUMP PISTON W/Ref. 2-52

2

6688089

KIT, ROTARY GROUP W/Ref. 3-5, 22, 44-50

3

6688090

PISTON W/Ref. 44-45

4

7012656

HOLDER, SHOE

5

7012654

BARREL, CYLINDER

6

7010811

O-RING

7

PLUG NLA

8

7012649

PACKING

9

BODY NLA

10

CUP NLA

11

STOPPER NLA

12

STOPPER NLA

13

ROD NLA

14

PLATE, SWASH NLA

15

BALL NLA

16

RING, SNAP NLA

17

BEARING, BALL NLA

18

SHAFT NLA

19

7012650

SEAL, OIL

20

RING, SNAP NLA

21

BEARING, NEEDLE NLA

22

7012657

HOLDER, BARREL

23

PLUG NLA

24

7010811

O-RING

25

GUIDE, SPRING NLA

26

SPRING NLA

27

GUIDE, SPRING NLA

28

PIN NLA

29

7012651

O-RING

30

PIN NLA

31

BODY NLA

32

BOLT NLA

33

7012652

SEAL, WASHER

34

PLUG NLA

35

SCREW NLA

36

NUT Pos.15 - NLA

37

6688537

O-RING

38

COLLAR NLA

39

COUPLER NLA

40

6693120

GEAR PUMP

41

PIN NLA

42

SCREW NLA

43

WASHER NLA

44

7012645

SHOE

45

7012648

PISTON

46

7012655

PLATE, VALVE

47

7012659

RING, SNAP

48

7012647

RETAINER

49

7012658

SPRING

50

7012646

NEEDLE

51

6688538

O-RING

52

6688539

O-RING

53

6688091

KIT W/Ref. 6, 8, 19, 24, 29, 33, 37, 51-52

54

6688919

SEAL KIT use W/Ref. 40
