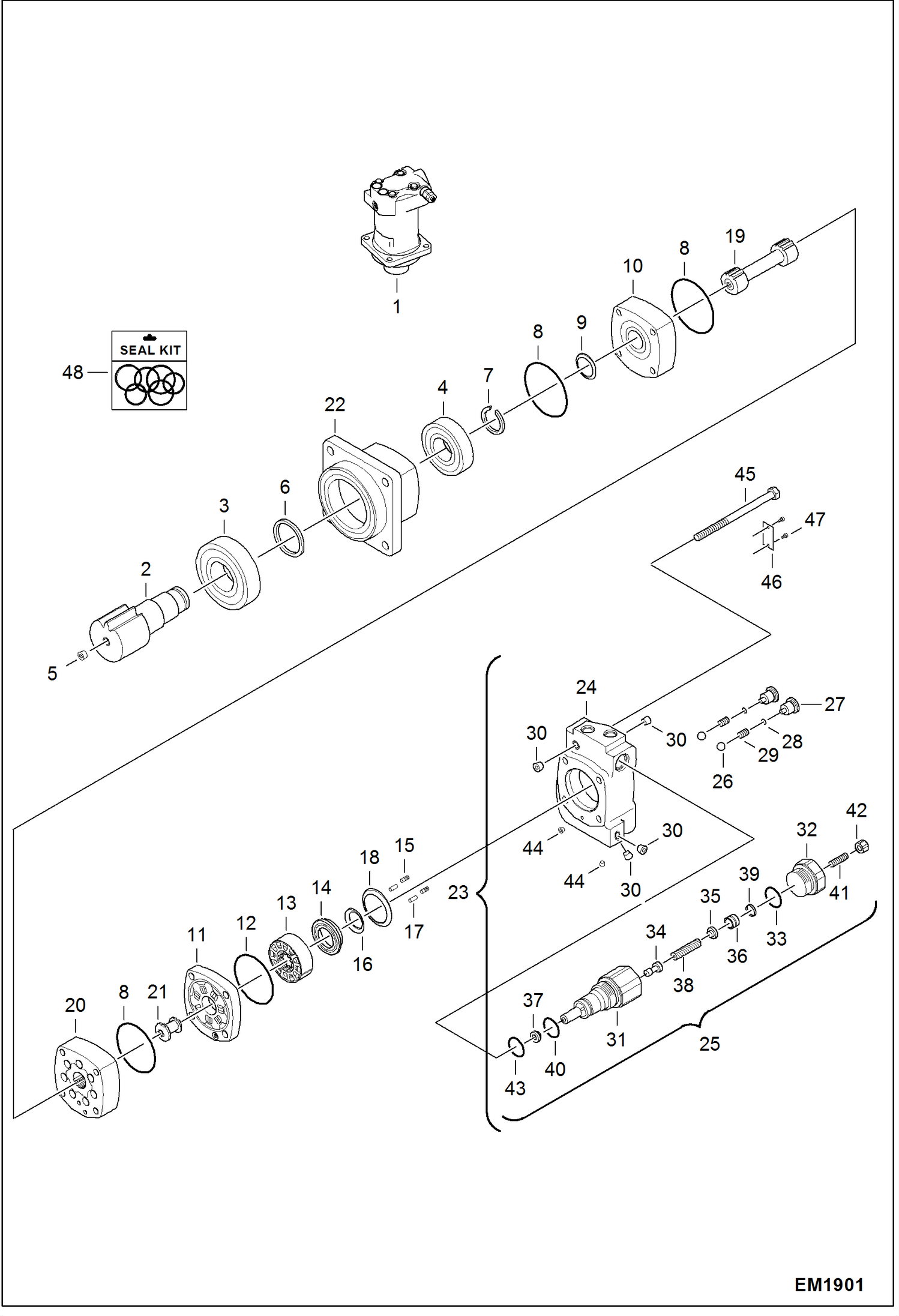

Запчасти Bobcat 321 SLEW MOTOR HYDRAULIC SYSTEM

1

6689671

MOTOR W/Ref. 2-48

2

6693160

PINION GEAR

3

6693161

BALL BEARING

4

6693162

BALL BEARING

5

6653303

PLUG

6

X-RING NLA

7

6653163

SNAP RING

8

O-RING NLA - Was 6653296 - A

9

1992098

SEAL

10

6693164

WEAR PLATE

11

6693165

VALVE PLATE

12

6653297

O-RING

13

6684144

VALVE

14

6630027

BALANCE RING

15

1992088

SPRING

16

6693929

SEAL, INNER FACE Was 6518267 - D

17

1992102

PIN

18

6693166

OUTER FACE SEAL

19

6693167

DRIVE

20

6693182

ROLLER

21

6693168

VALVE DRIVE

22

6693171

SEAL KIT W/Ref. 6, 8-9, 12, 16, 18, 28, 33, 39-40, 43

23

6693169

VALVE HOUSING ASSY W/Ref. 24-44

24

HOUSING, VALVE NLA

25

6693170

RELIEF CARTRIDGE W/Ref. 31-43

26

BALL, STEEL NLA

27

PLUG NLA

28

6653305

O-RING

29

SPRING NLA

30

PLUG NLA

31

HOUSING NLA

32

SCREW, GIDE NLA

33

6684150

O-RING

34

NEEDLE, VALVE NLA

35

SPRING, SEAT NLA

36

PLUG NLA

37

PLUG, ORIFICE NLA

38

SPRING NLA

39

6684151

O-RING

40

O-RING NSS - Order Ref 22 - Was 6653307

41

BOLT NLA

42

NUT NLA

43

6684152

O-RING

44

PLUG NLA

45

6653294

BOLT

46

PLATE, NAME NLA

47

RIVET NLA

48

6693159

BEARING HOUSING
