Запчасти Bobcat 321 DRIVE MOTOR HYDRAULIC SYSTEM

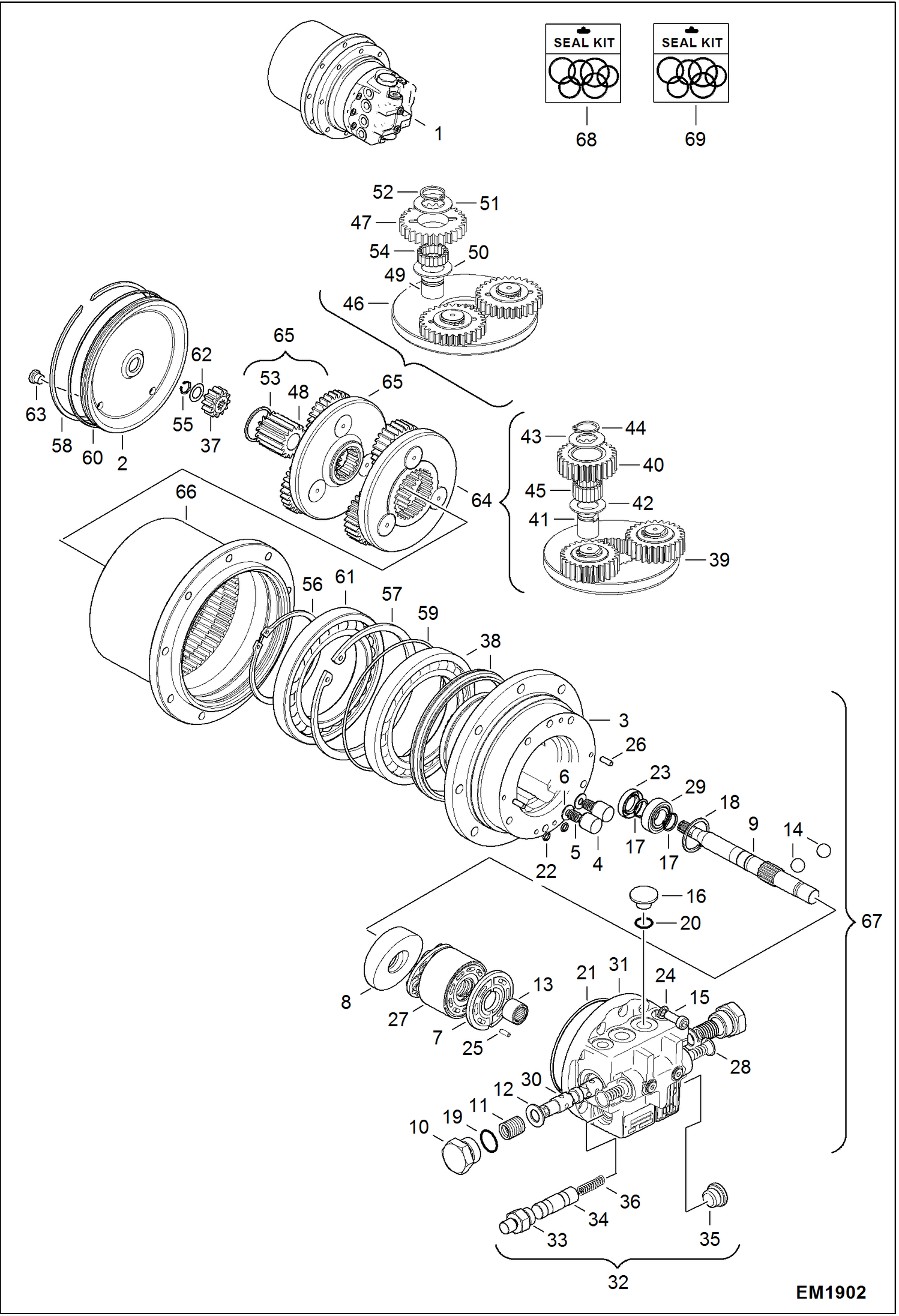

Схема запчастей Bobcat 321 - DRIVE MOTOR HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6688447

MOTOR DRIVE W/Ref. 2-67

2

6688096

COVER

3

6688098

HUB

4

6688099

PISTON

5

6688100

SPRING

6

6688101

WASHER

7

6671905

PLATE

8

6693117

SWASH PLATE 9-15 DEGREES 9°-15°

9

6688103

SHAFT

10

6688104

PLUG W/Ref.19

11

6688105

SPRING

12

6688106

WASHER

13

6667781

BEARING

14

6688107

BALL

15

6688108

BOLT

16

6693118

PLASTIC PLUG

17

6667756

SNAP RING

18

6688109

RING

19

6667777

O-RING

20

6692863

ORING

21

6667779

O-RING

22

6688110

O-RING

23

6667774

SEAL

24

6667788

WASHER

25

6667782

DOWEL PIN

26

6688111

PIN

27

6688112

KIT

28

6693053

SHOCKPROOF VALVE

29

6688114

BEARING

30

6688115

VALVE

31

6688116

COVER

32

6688117

VALVE W/Ref. 33-36

33

NIPPLE NLA - Order Ref. 32

34

PISTON, VALVE NLA - Order Ref. 32

35

PLUG W/ O-ring - NLA - Order Ref. 32

36

SPRING NLA - Order Ref. 32

37

6667752

GEAR

38

6667754

BEARING W/ front seal

39

6693061

PLANETARY CARRIER

40

6667755

GEAR

41

6693116

PIN

42

6667757

WASHER

43

6667758

WASHER

44

6667759

SNAP RING

45

6667760

BEARING

46

6693059

PLANETARY CARRIER

47

6693062

PLANET GEAR

48

6667753

GEAR

49

6693115

PIN

50

6667757

WASHER

51

6667758

WASHER

52

6667759

SNAP RING

53

6667764

SNAP RING

54

6667763

BEARING

55

6688118

RING

56

6667765

SNAP RING

57

6667766

SNAP RING

58

6667767

SNAP RING

59

6667768

O-RING

60

6667769

O-RING

61

6667770

BEARING

62

6688119

SHIM

63

6676161

PLUG W/ O-ring

64

6667792

GEAR ASSY W/Ref. 39-45

65

6693119

PLANETARYGEAR SET W/Ref. 46-54

66

6667748

HOUSING

67

6693058

MOTOR, HYDRAULIC W/Ref. 3-31

68

6688120

KIT basic - W/Ref. 19-23, 59-60

69

6688121

KIT major rebuild - W/Ref. 19-23, 38, 59-60

Выбрано товаров: 69
