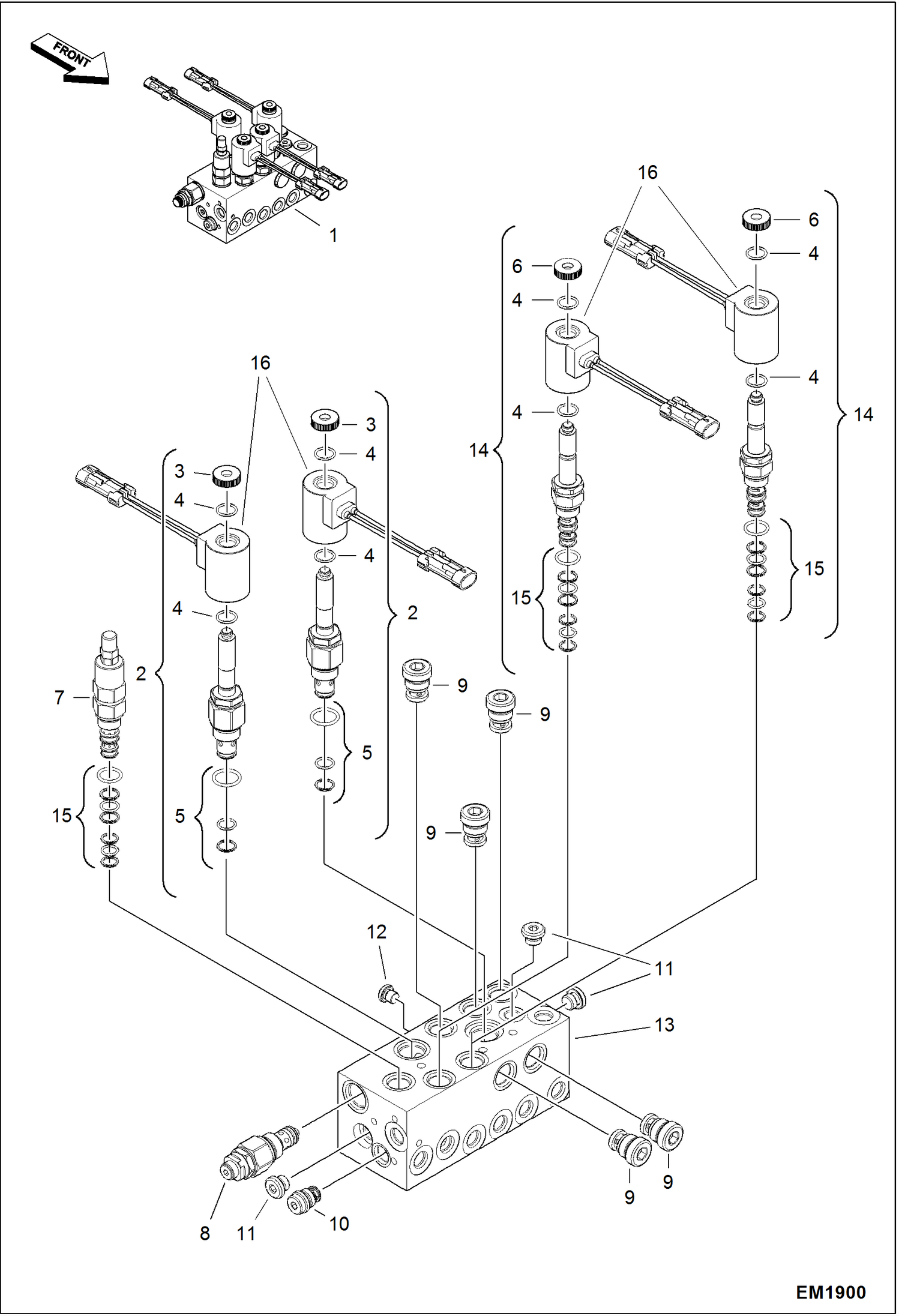

Запчасти Bobcat 321 VALVE ASSY (Manifold) HYDRAULIC SYSTEM

1

6688554

MANIFOLD ASSY W/Ref. 2-16

2

6693145

KIT (EC10M/10NB) W/Ref. 3-5

3

6688624

NUT

4

7011891

O-RING Was 6679509 - D

5

6679508

SEAL KIT

6

6688625

NUT

7

6679033

VALVE W/Ref. 15

8

6693143

VALVE SIDE

9

6679062

VALVE

10

7011895

KIT SEAL + SCREW Was 6678990 - D

11

7011894

PLUG Was 6678992 - D

12

6678993

PLUG

13

6693142

VALVE BODY

14

6693144

VALVE W/Ref. 4, 6, 15

15

7011888

KIT SEAL Was 6679078 - D

16

6678984

COIL
