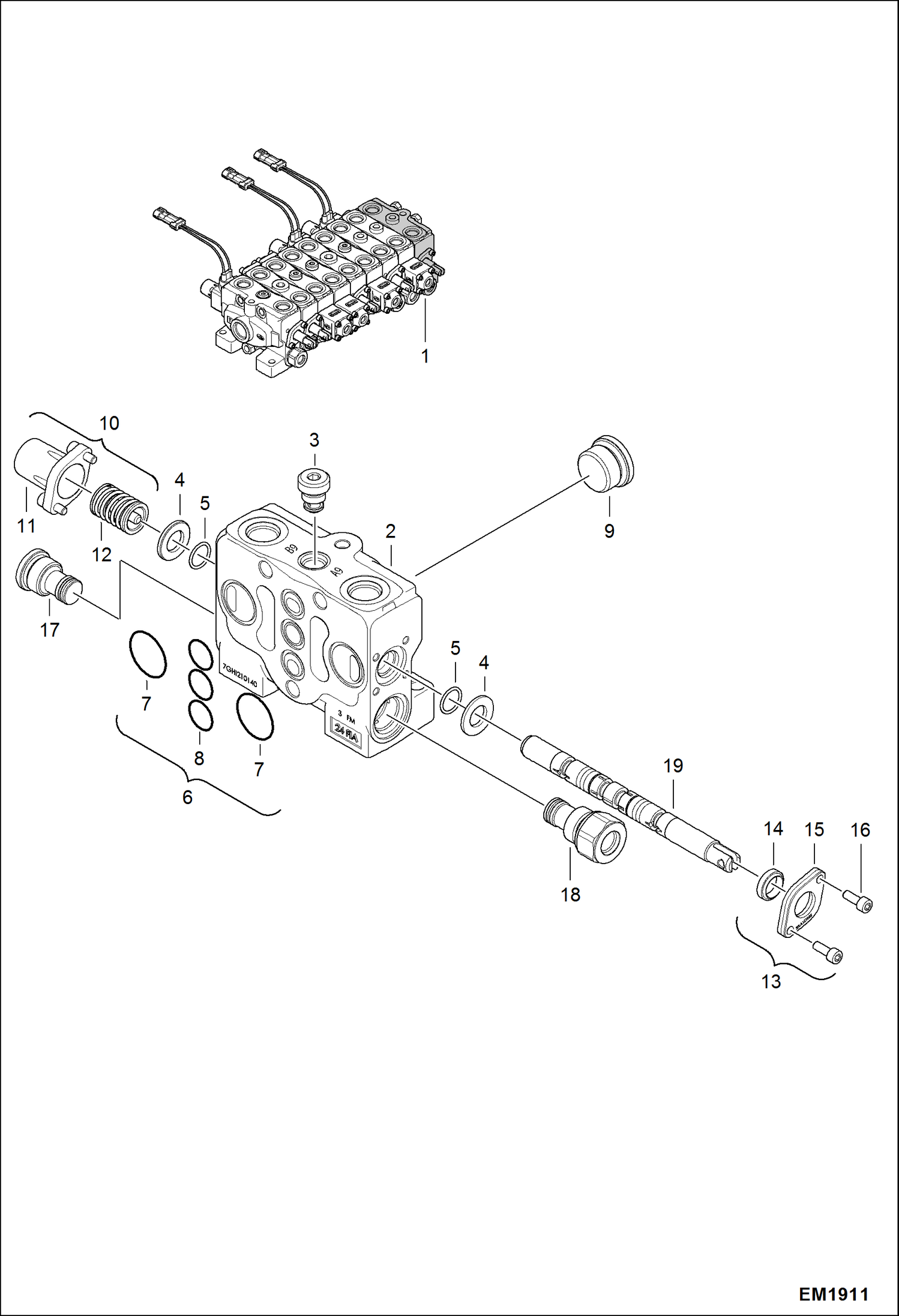

Запчасти Bobcat 321 VALVE SECTION (Blade) HYDRAULIC SYSTEM

1

6688426

VALVE W/Ref. 2-20

2

6693135

KIT W/Ref. 3-9

3

BLOCK NLA - Order Ref. 2

4

6680095

WASHER

5

6680094

O-RING

6

6680066

KIT between sections - W/Ref. 7-8

7

O-RING NLA - Order Ref. 6

8

O-RING NLA - Order Ref. 6

9

6680093

PLUG

10

6693138

KIT W/Ref. 11-12

11

6679496

END CAP

12

7015392

SPRING ASSY

13

6680097

KIT W/Ref. 14-16

14

6679912

SEAL

15

6679911

SLEEVE

16

6680071

SCREW

17

6680057

PLUG

18

6693139

GF/SDS100-SAE6 INLET JOINT

19

6693123

H102/SDS100 320/22D BLADE SPOOL

20

6680058

PLUG
