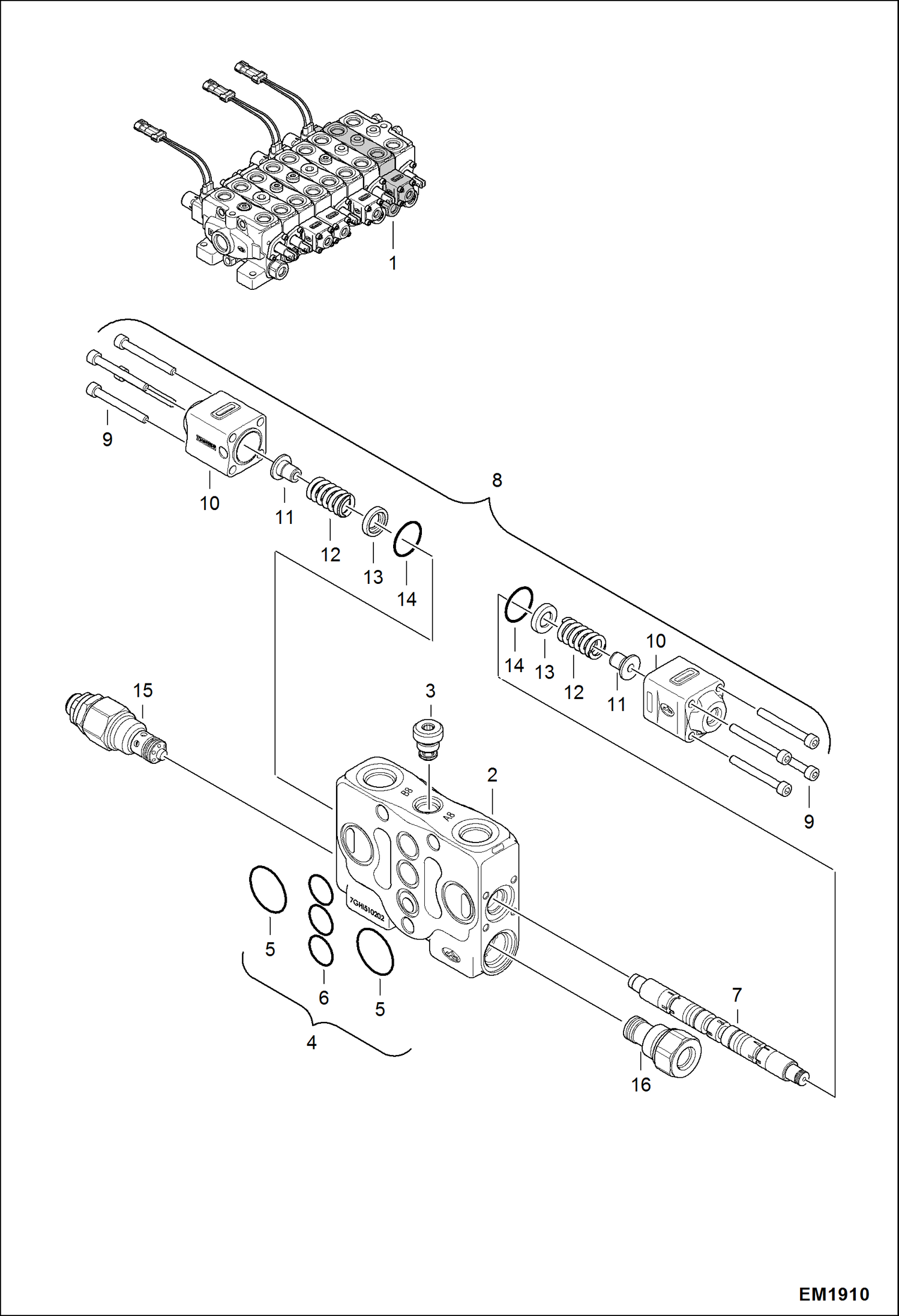

Запчасти Bobcat 321 VALVE SECTION (Slew) HYDRAULIC SYSTEM

1

6688425

VALVE W/Ref. 2-17

2

6693130

KIT W/Ref. 3-7

3

BLOCK, VALVE NLA - Order Ref. 2

4

6680066

KIT between sections - W/Ref. 5-6

5

O-RING NLA - Order Ref. 4

6

O-RING NLA - Order Ref. 4

7

6680093

PLUG

8

6688427

KIT W/Ref. 9-14

9

6682248

SCREW

10

7015360

CAP

11

7015361

BUSHING

12

7015362

SPRING

13

7015363

BUSHING

14

O-RING NLA - Order Ref. 8

15

6686238

VALVE

16

6693139

GF/SDS100-SAE6 INLET JOINT

17

6693125

I124/SDS100 319 SLEW SPOOL
