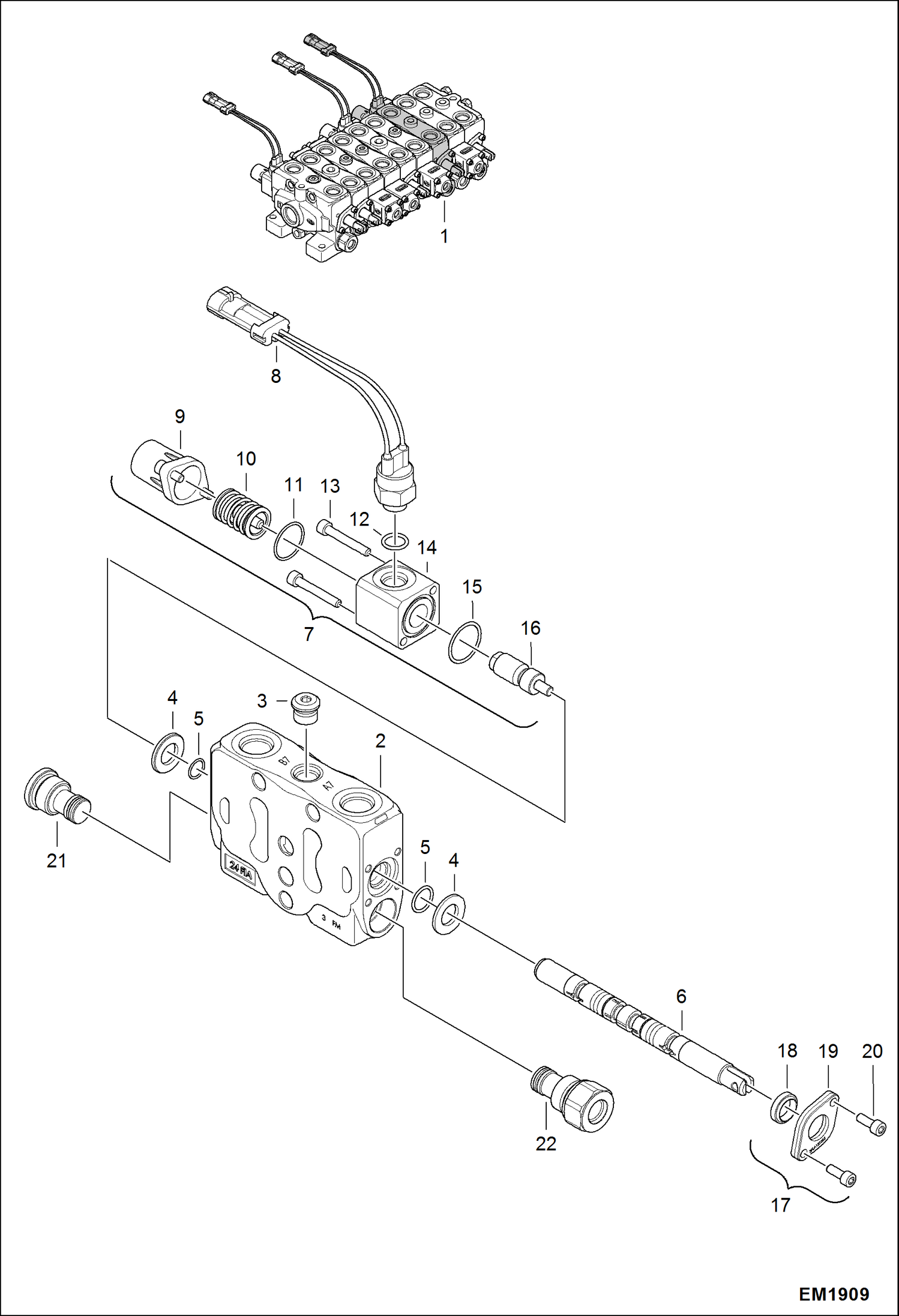

Запчасти Bobcat 321 VALVE SECTION (LH Travel) HYDRAULIC SYSTEM

1

6688424

VALVE W/Ref. 2-23

2

6693131

KIT

3

BLOCK NLA - Order Ref. 2

4

6680095

WASHER

5

6680094

O-RING

6

6680093

PLUG

7

6689031

KIT W/Ref. 8-16

8

6679913

SWITCH

9

6679496

END CAP

10

7015380

SPRING ASSY

11

O-RING NLA - Order Ref. 7

12

6679605

O-RING

13

6679501

SCREW

14

7015381

CAP

15

6679604

O-RING

16

6685780

CONTROL ASSY

17

6680097

KIT W/Ref. 18-20

18

6679912

SEAL

19

6679911

SLEEVE

20

6680071

SCREW

21

6680057

PLUG

22

6693139

GF/SDS100-SAE6 INLET JOINT

23

6693122

H2H03/SDS100 SPOOL
