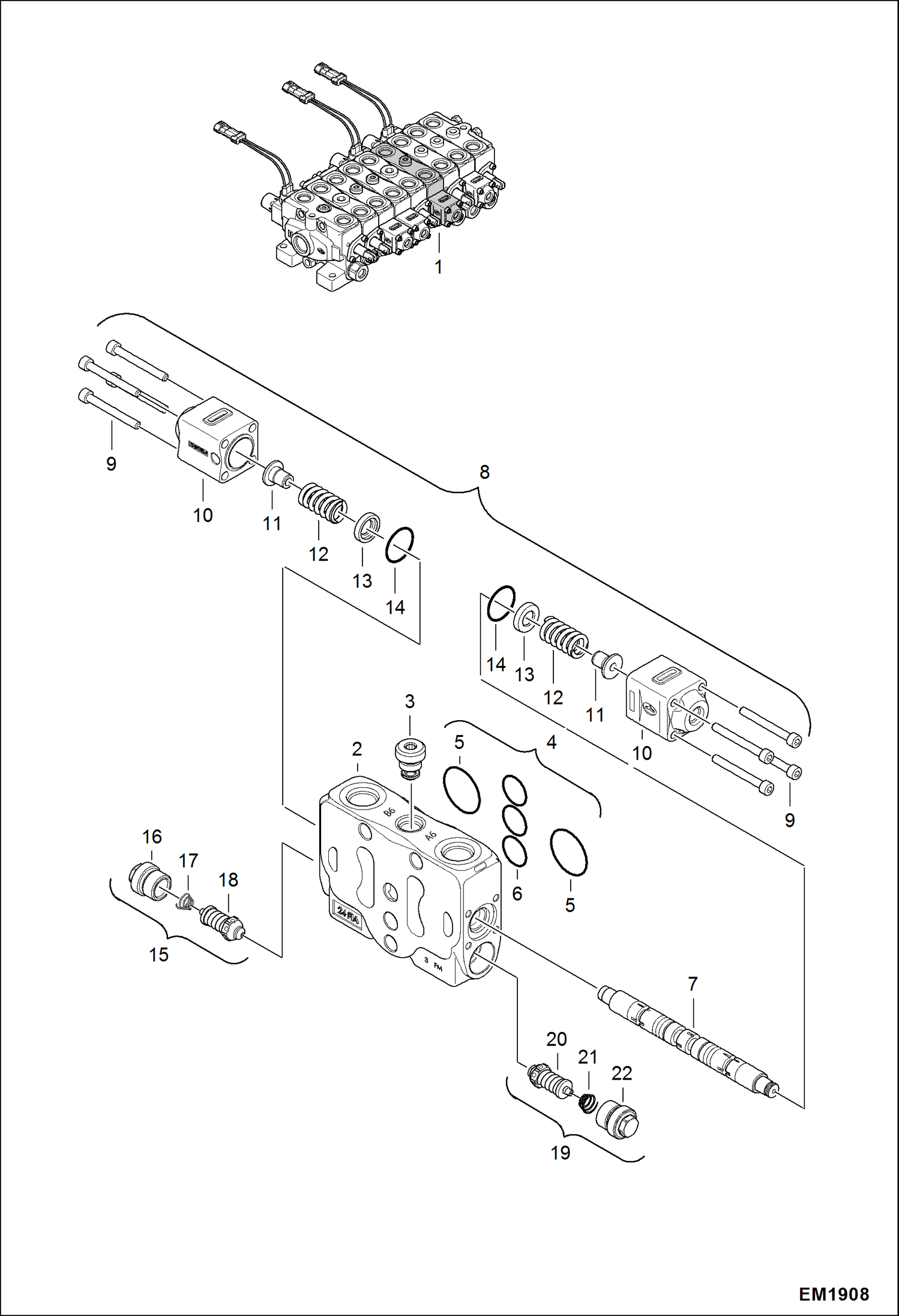

Запчасти Bobcat 321 VALVE SECTION (Boom) HYDRAULIC SYSTEM

1

6688423

VALVE W/Ref. 2-23

2

6693132

KIT W/Ref. 3-7

3

BLOCK NLA - Order Ref. 2

4

6680066

KIT between sections - W/Ref. 5-6

5

O-RING NLA - Order Ref. 4

6

O-RING NLA - Order Ref. 4

7

6680093

PLUG

8

6688427

KIT W/Ref. 9-14

9

6682248

SCREW

10

7015360

CAP

11

7015361

BUSHING

12

7015362

SPRING

13

7015363

BUSHING

14

O-RING NLA - Order Ref. 8

15

6693137

KIT W/Ref. 16-18

16

6686241

PLUG

17

7015357

SPRING

18

7015364

SPOOL

19

6693136

KIT W/Ref. 20-22

20

7015369

SPOOL

21

7015357

SPRING

22

6686241

PLUG

23

6693126

I126/SDS100 SPOOL
