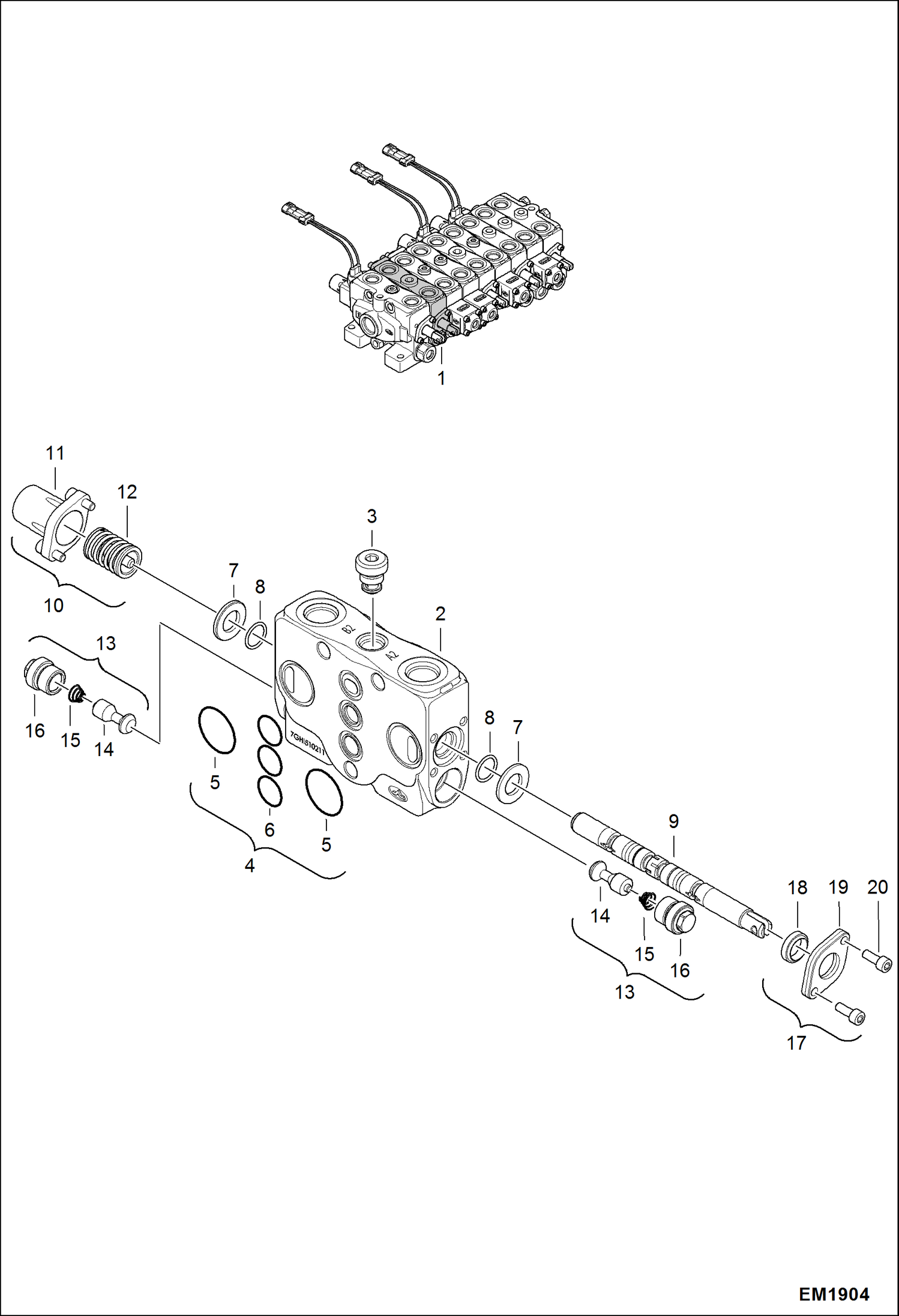

Запчасти Bobcat 321 VALVE SECTION (Offset) HYDRAULIC SYSTEM

1

6688419

VALVE W/Ref. 2-21

2

6693129

KIT W/Ref. 3-9

3

BLOCK NLA - Order Ref. 2

4

6680066

KIT between sections - W/Ref. 5-6

5

O-RING NLA - Order Ref. 4

6

O-RING NLA - Order Ref. 4

7

6680095

WASHER

8

6680094

O-RING

9

6680093

PLUG

10

6680068

KIT W/Ref. 11-12

11

6679496

END CAP

12

7015356

SPRING ASSY

13

6680247

VALVE W/Ref. 14-15

14

7015358

SPOOL

15

7015357

SPRING

16

6686241

PLUG

17

6680097

KIT W/Ref. 18-20

18

6679912

SEAL

19

6679911

SLEEVE

20

6680071

SCREW

21

6693121

H104/SDS100 319 SPOOL
