Запчасти Bobcat 321 HYDRAULIC CIRCUITRY (Cooler/Filter) HYDRAULIC SYSTEM

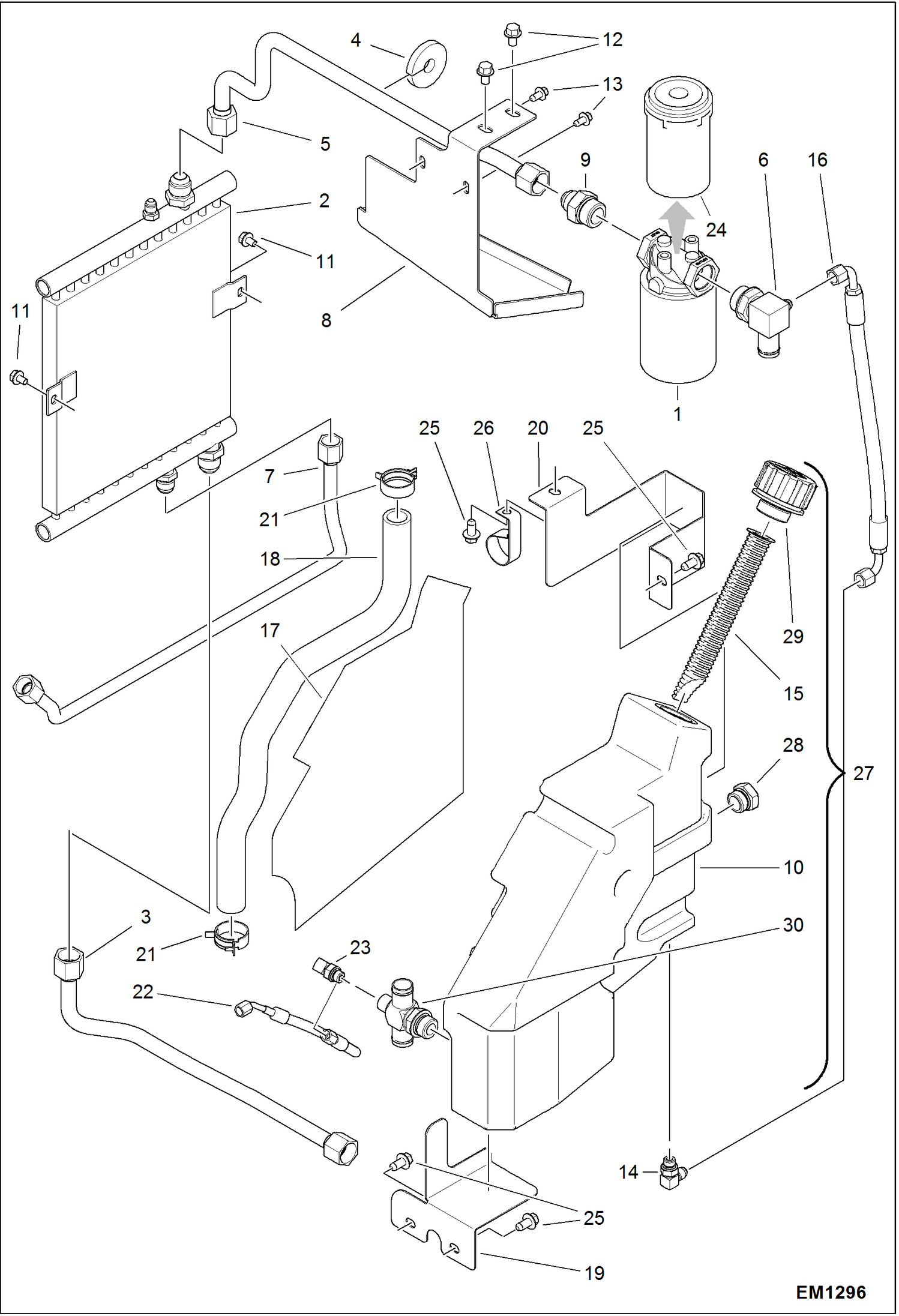

Схема запчастей Bobcat 321 - HYDRAULIC CIRCUITRY (Cooler/Filter) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6654897

FILTER ASSY W/ref. 33

2

6675291

COOLER

3

6806810

TUBE

4

6807239

SEAL

5

6812952

TUBE

6

7106192

TEE

7

7116531

TUBELINE

8

7120774

BRACKET FILTER

9

15KB1216

FITTING, HYD CONNECTOR W/Ref. 10

10

79K16

O RING 10

11

29CM812

BOLT

12

35C610

BOLT 5

13

26GM8016

SCREW

14

17KB0606

FITTING W/ O-ring - W/Ref. 15 Was 17KB606 - D

15

79K6

O RING 10

16

7106193

HOSE

17

6808113

INSULATION

18

6810208

HOSE

19

7110693

SUPPROT HYD TANK

20

7110694

SUPPORT HYD TANK

21

5HM35

HOSECLAMP

22

7175446

HOSE ASSY Was 7106586 - A

23

17KB0406

FITTING, HYD ELBOW w/ref. 79k6 - W/Ref. 24 Was 17KB406 - D

24

79K6

O RING 10

25

26GM10020

BOLT

26

30HJ624

CLAMP

27

7110940

TANK ASSY HYDR W/Ref. 28-32

28

6665915

GAUGE

29

6692836

CAP, HYDRAULIC TANK Was 6674690 - A

30

6806993

TEE

31

7174380

TANK, HYD Was 7105886 - A

32

7134222

SCREEN Was 6587168 - A

33

6653336

ELEMENT

Выбрано товаров: 33
