Запчасти Bobcat 321 HYDRAULIC CIRCUITRY (Lower Group) HYDRAULIC SYSTEM

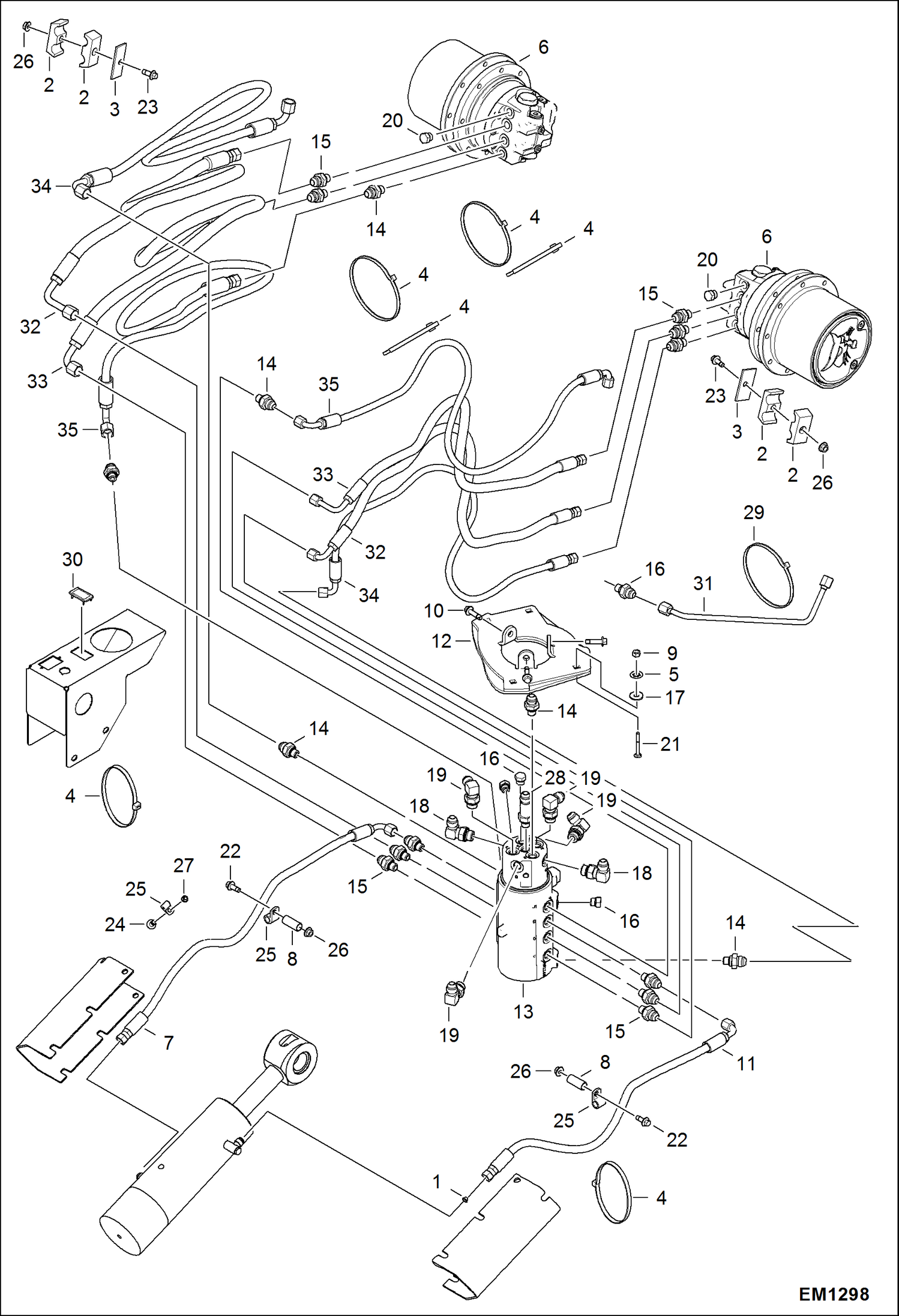

Схема запчастей Bobcat 321 - HYDRAULIC CIRCUITRY (Lower Group) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6586430

ORIFICE

2

6592506

CLAMP

3

6592507

PLATE

4

6624289

STRAP, TIE

5

6674264

RETAINER NUT

6

6688447

MOTOR DRIVE See Illustration DRIVE MOTOR/ EM1902

7

6805758

HOSE

8

6805878

SPACER

9

4DM10

NUT

10

7183437

SCREW Was 59CM1016 - A

11

7117443

HOSE ASSY

12

7104971

MOUNT SWIVEL

12

7184124

MOUNT, SWIVEL Was 7156115 - A

13

7102237

SWIVEL

13

7156120

SWIVEL, HYD ASSY See Illustration SWIVEL JOINT/ EM1679

14

15KB0406

FTG HYD S CONNECTOR W/Ref. 16 Was 15KB406 - D

15

15KB0606

FITTING, HYD CONNECTOR W/ O-ring - W/Ref. 16 Was 15KB606 - D

16

79K6

O RING 10

17

17EM100

WASHER

18

17KB0406

FITTING, HYD ELBOW w/ref. 79k6 - W/Ref. 16 Was 17KB406 - D

19

17KB0606

FITTING W/ O-ring - W/Ref. 16 Was 17KB606 - D

20

24K5

PLUG

21

28CM1040

BOLT use with swivel mount 7184124

21

28CM1030

BOLT use with swivel mount 7156115

22

29CM1055

BOLT

23

29CM1060

SCREW

24

29CM816

SCREW

25

30H38

CLIP

26

43DM10

NUT

27

43DM8

NUT

28

16KB0606

FTG HYD L CONNECTOR W/Ref. 16 Was 16KB606 - D

29

6624289

STRAP, TIE

30

6665314

PLUG

31

7149830

TUBELINE

32

7153969

HOSE, ASSY

33

7153970

HOSE, ASSY

34

7153971

HOSE, HYD

35

7153972

HOSE, HYD

36

92K5

PLUG

Выбрано товаров: 39
