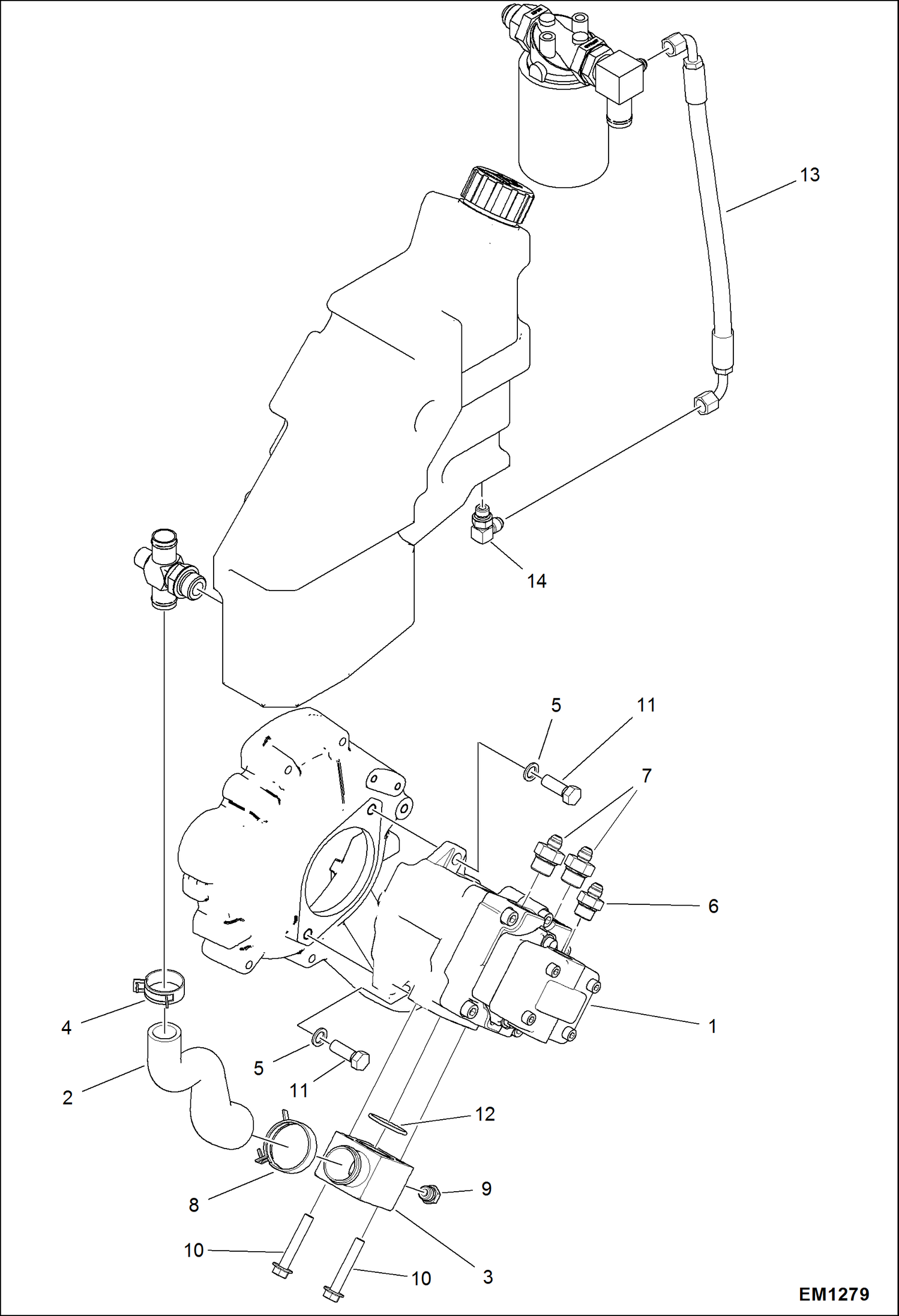

Запчасти Bobcat 321 HYDRAULIC CIRCUITRY (Pump Installation) HYDRAULIC SYSTEM

1

6688448

PUMP PISTON See Illustration HYDRAULIC PUMP/ EM1299

2

7104970

HOSE

3

7104981

BLOCK

4

5HM35

HOSECLAMP

5

15EM120

WASHER

6

15KB0608

FITTING, HYD CONNECTOR W/Ref. 15 Was 15KB608 - D

7

15KB0610

FITTING, HYD CONNECTOR W/Ref. 16 Was 15KB610 - D

8

5HM47

CLAMP

9

24K5

PLUG

10

29CM1060

SCREW

11

55CM1235

BOLT

12

58K222

O-RING

13

7106193

HOSE

14

17KB0606

FITTING W/ O-ring - W/Ref. 17 Was 17KB606 - D

15

79K8

O RING 10

16

79K10

O RING 10

17

79K6

O RING 10
