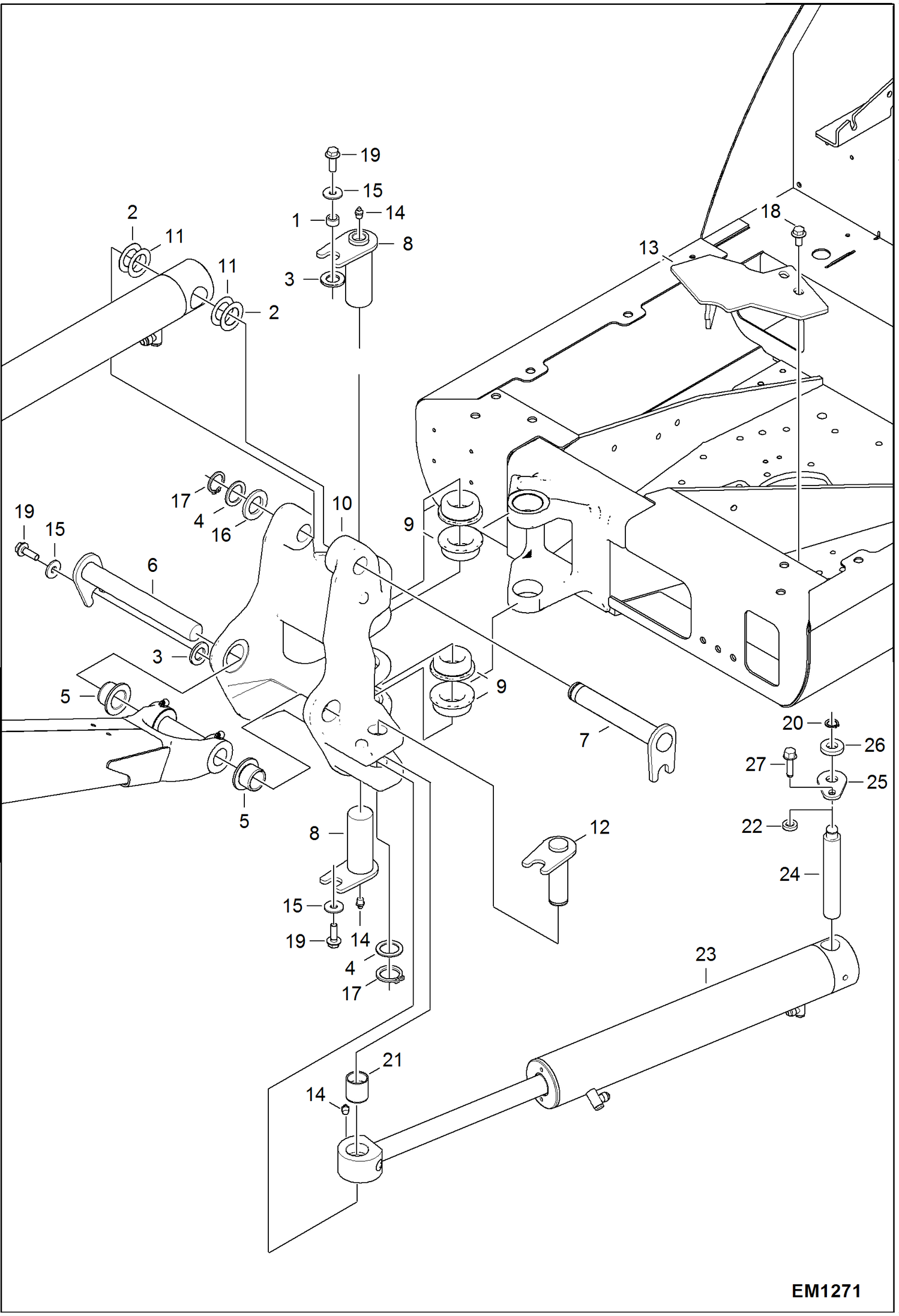

Запчасти Bobcat 321 SWING BRACKET WORK EQUIPMENT

1

6503451

SPACER

2

6533856

SHIM use as required - in combination W/Ref. 11

3

6576033

WASHER

4

6589699

WASHER

5

6677918

BUSHING

6

7102842

PIN W/A W/A

7

7103248

PIN W/A W/A

8

7104172

PIN W/A W/A

9

7104175

BUSHING

10

7108501

SWING FRAME MACH

11

7120208

WASHER use as required - in combination W/Ref. 2

12

7124312

PIN W/A Was 6805807 - A

13

7124851

BRACKET W/A Was 7109726 - A

14

10H25

FITTING, GREASE 5

15

17EM100

WASHER

16

1EM270

WASHER

17

22J19

SNAP RING

18

29CM1020

BOLT

19

29CM1030

BOLT

20

6662745

SNAP RING

21

6804060

BUSHING

22

6814436

WASHER

23

7102920

CYL ASSY 319 SWING See Illustration SWING CYLINDER/ EM1850

24

7112321

PIN

25

7112322

EAR

26

1EM180

WASHER

27

26GM10030

BOLT
