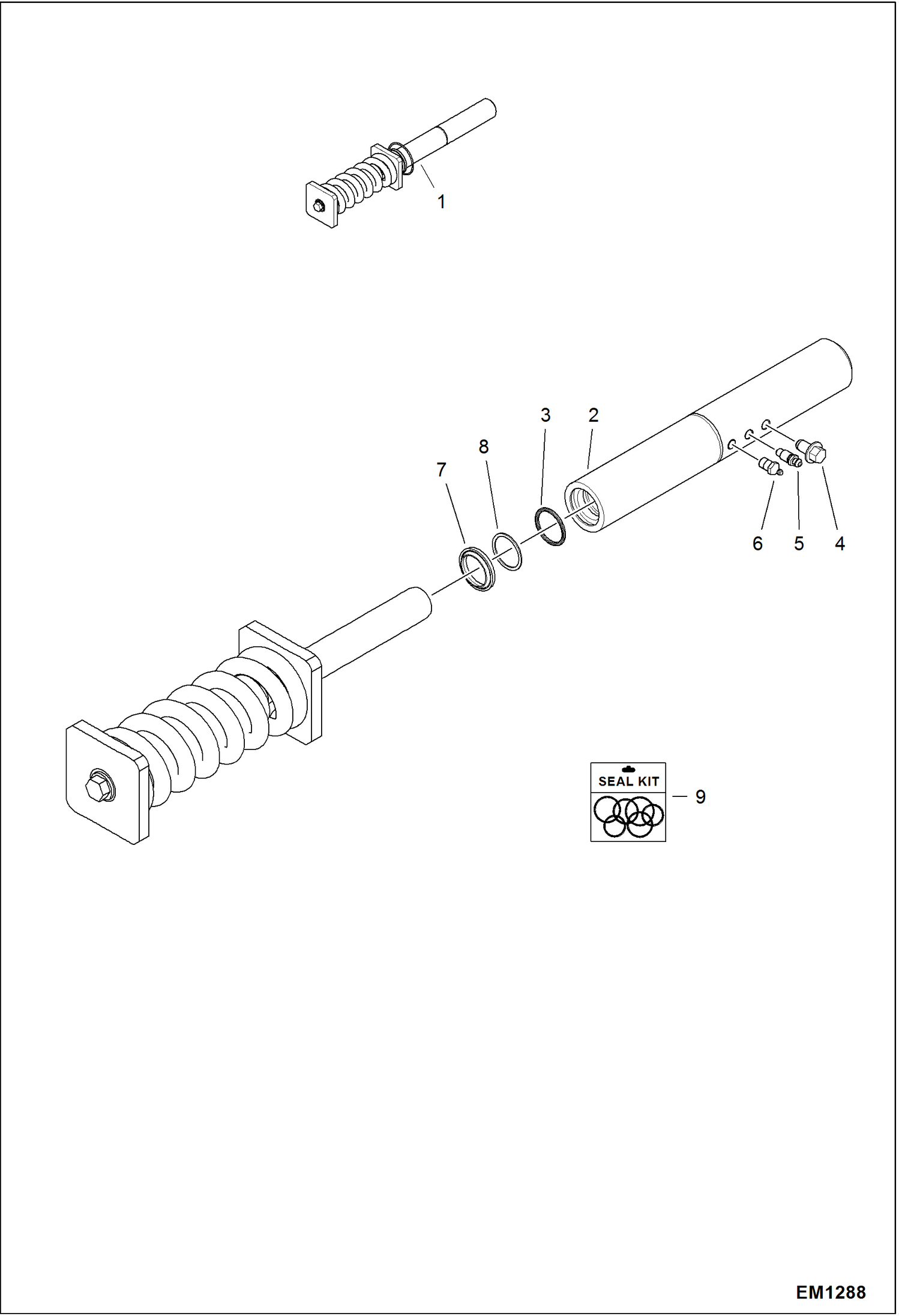

Запчасти Bobcat 321 TRACK TENSIONER UNDERCARRIAGE

1

7121351

CYLINDER W/Ref. 2-15 - Was 7121350 - D

2

6589532

SHAFT NSS

3

6589536

SPACER

4

6589537

PLATE NSS

5

6645812

SCREW, BLEED

6

6655752

FITTING 68,900 kpa (10,000 psi) - DO NOT SUBSTITUTE

7

6665208

SEAL

8

6689071

RING BACKUP

9

7121352

TUBE W/A

10

18EM2448

WASHER Was 1EM240 - A

11

1CM2470

BOLT

12

26GM10020

BOLT

13

58K218

O RING 10

14

6533648

SPRING NSS

15

7121410

SEAL KIT W/Ref. 7-8
