OPERATOR CAB (Installation)

Запчасти Bobcat 321 OPERATOR CAB (Installation) MAIN FRAME

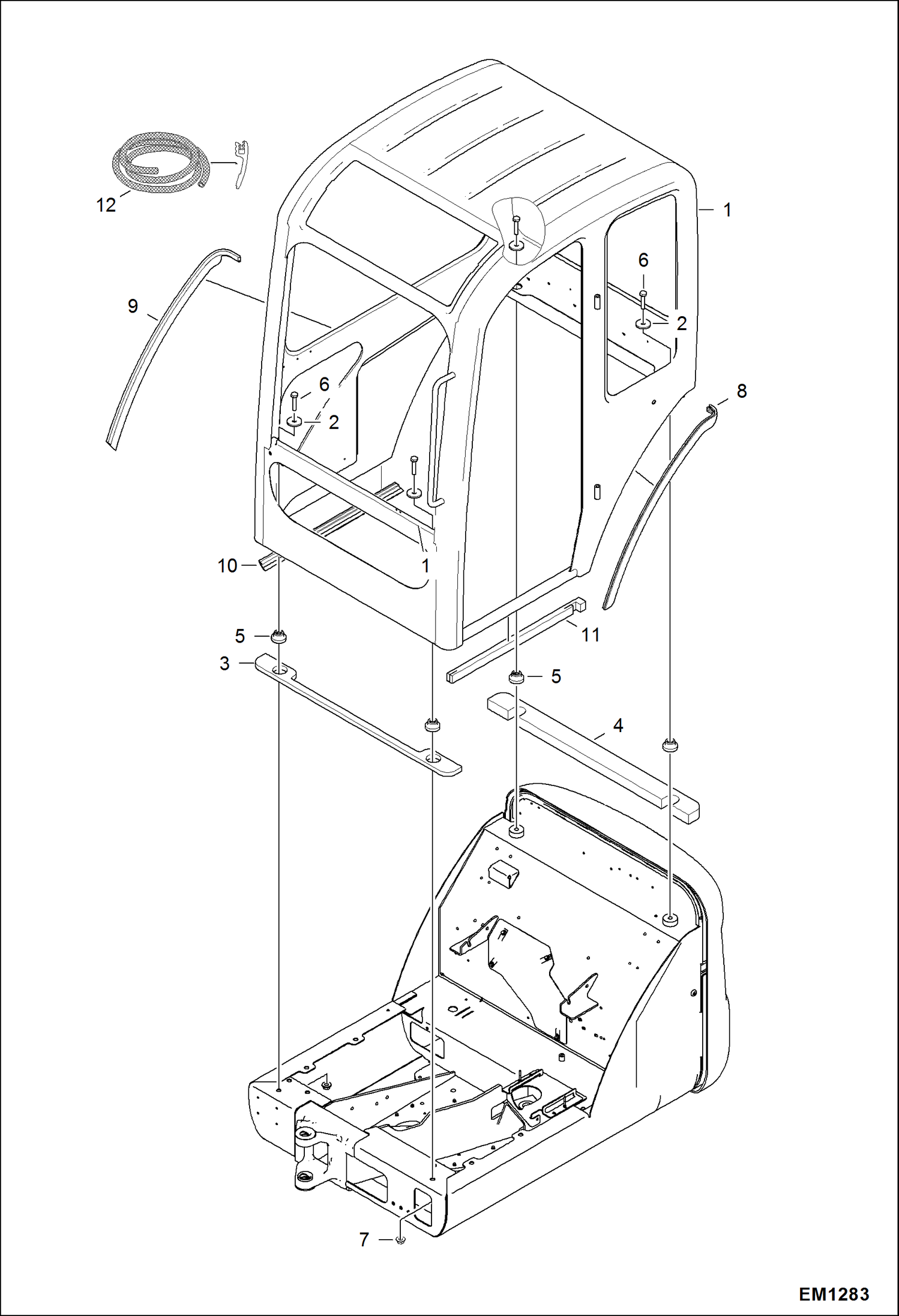

Схема запчастей Bobcat 321 - OPERATOR CAB (Installation) MAIN FRAME
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7109077

CAB NSS

2

6805244

WASHER

3

6816176

SEAL

4

6816177

SEAL

5

7001052

MOUNT, ENG Was 6804026 - A

6

10CM1455

BOLT

7

43DM14

NUT

8

SEAL, CAB NLA - 33'' (839 mm) long - Order Ref. 11

9

SEAL, CAB NLA - 33.1'' (841 mm) long - Order Ref. 11

10

SEAL, CAB NLA - 26.7'' (679 mm) long - Order Ref. 11

11

6817343

SEAL 951 mm (3.12') long

12

7101051

SEAL
