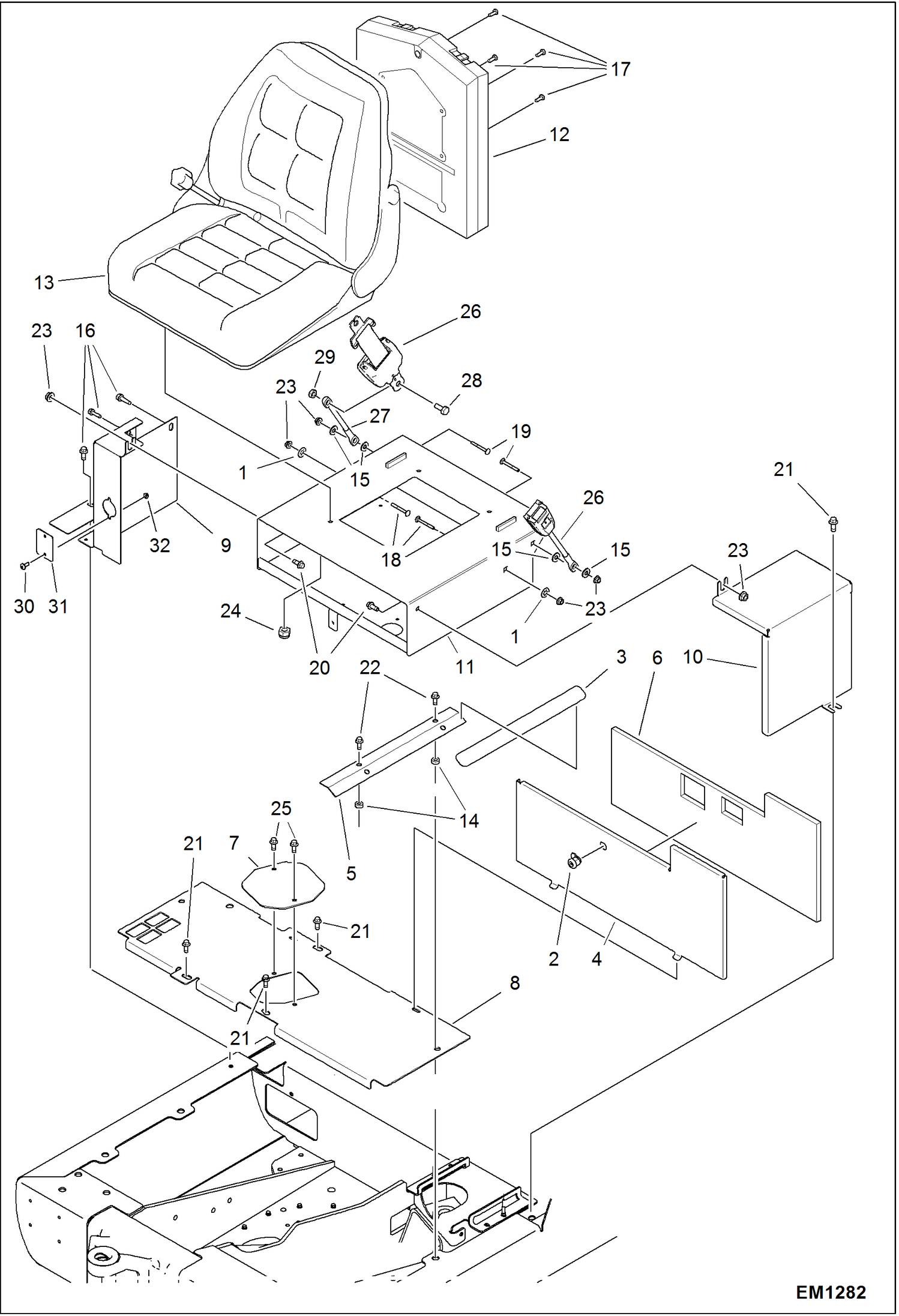

Запчасти Bobcat 321 OPERATOR SEAT INSTALLATION (W/seat #7180305) MAIN FRAME

1

6674264

RETAINER NUT

2

6675723

LOCK

3

6807327

SAFETY TREAD

4

7108969

COVER FRONT

5

7111123

ANGLE

6

7120138

INSULATION Was 6809004 - A

7

7143811

COVER, MOTOR

8

7143812

PLATE, FLOOR

9

7144959

COVER, RH Was 7110823 - A

10

7144960

COVER, LH Was 7110824 - A

11

7171069

TRAY, SEAT

12

7178637

BOX, MANUAL

13

7180305

SEAT ASSY

14

7187082

SPACER Was 6503451 - A

15

15EM100

WASHER

16

26GM10020

BOLT

17

27CM510

SCREW

18

28CM1030

BOLT

19

28CM1040

BOLT

20

29CM1020

BOLT

21

29CM1030

BOLT

22

29CM1045

BOLT Was 1CM1040 - A

23

43DM10

NUT

24

51DM8

NUT

25

84G3108

BOLT

26

7207354

BELT, SEAT Was 7143563 - A

27

7207356

CABLE, STALK Was 7163348 - A

28

1CM1025

BOLT

29

53DM10

NUT

30

6803202

SCREW

31

7111122

COVER

32

43DM6

NUT
