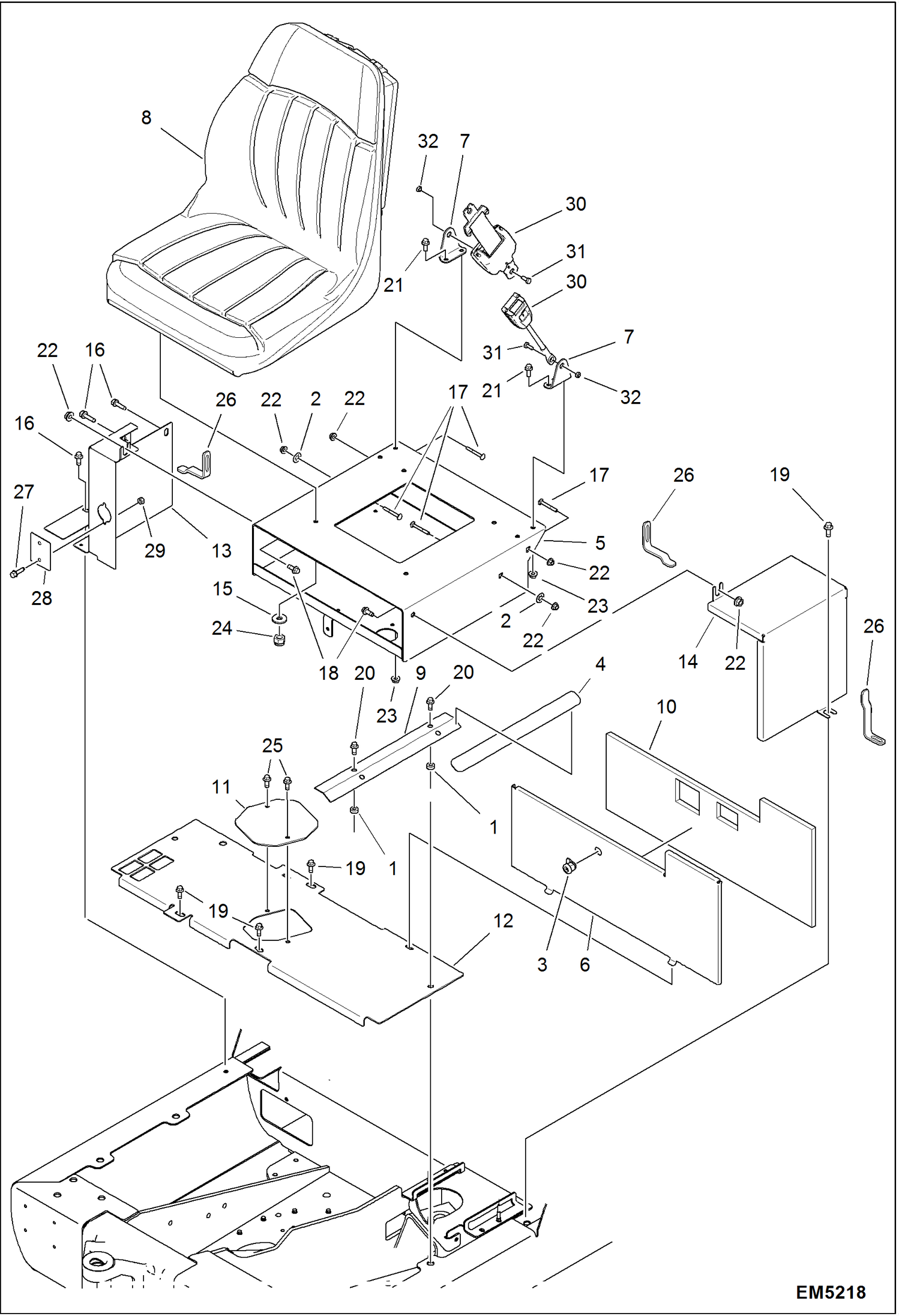

Запчасти Bobcat 321 OPERATOR SEAT INSTALLATION (W/seat #7110397) MAIN FRAME

1

6503451

SPACER

2

6674264

RETAINER NUT

3

6675723

LOCK

4

6807327

SAFETY TREAD

5

7108962

SEAT TRAY W/A

6

7108969

COVER FRONT

7

7109909

BRACKET SEAT BELT

8

7110397

SEAT, ASSY

9

7111123

ANGLE

10

7120138

INSULATION Was 6809004 - A

11

7143811

COVER, MOTOR

12

7143812

PLATE, FLOOR

13

7144959

COVER, RH Was 7110824 - A

14

7144960

COVER, LH Was 7110823 - A

15

17EM100

WASHER

16

26GM10020

BOLT

17

28CM1030

BOLT

18

29CM1020

BOLT

19

29CM1030

BOLT

20

29CM1045

BOLT Was 1CM1040 - A

21

29CM820

SCREW

22

43DM10

NUT

23

43DM8

NUT

24

59D5

NUT 5

25

84G3108

BOLT

26

BRACKET Use W/Ref. 12-13 - #7110823 & #7110824 Was 7114509 - B

27

6803202

SCREW

28

7111122

COVER

29

43DM6

NUT

30

7207354

BELT, SEAT Was 7143563 - A

31

18C716

BOLT

32

86D7

NUT
