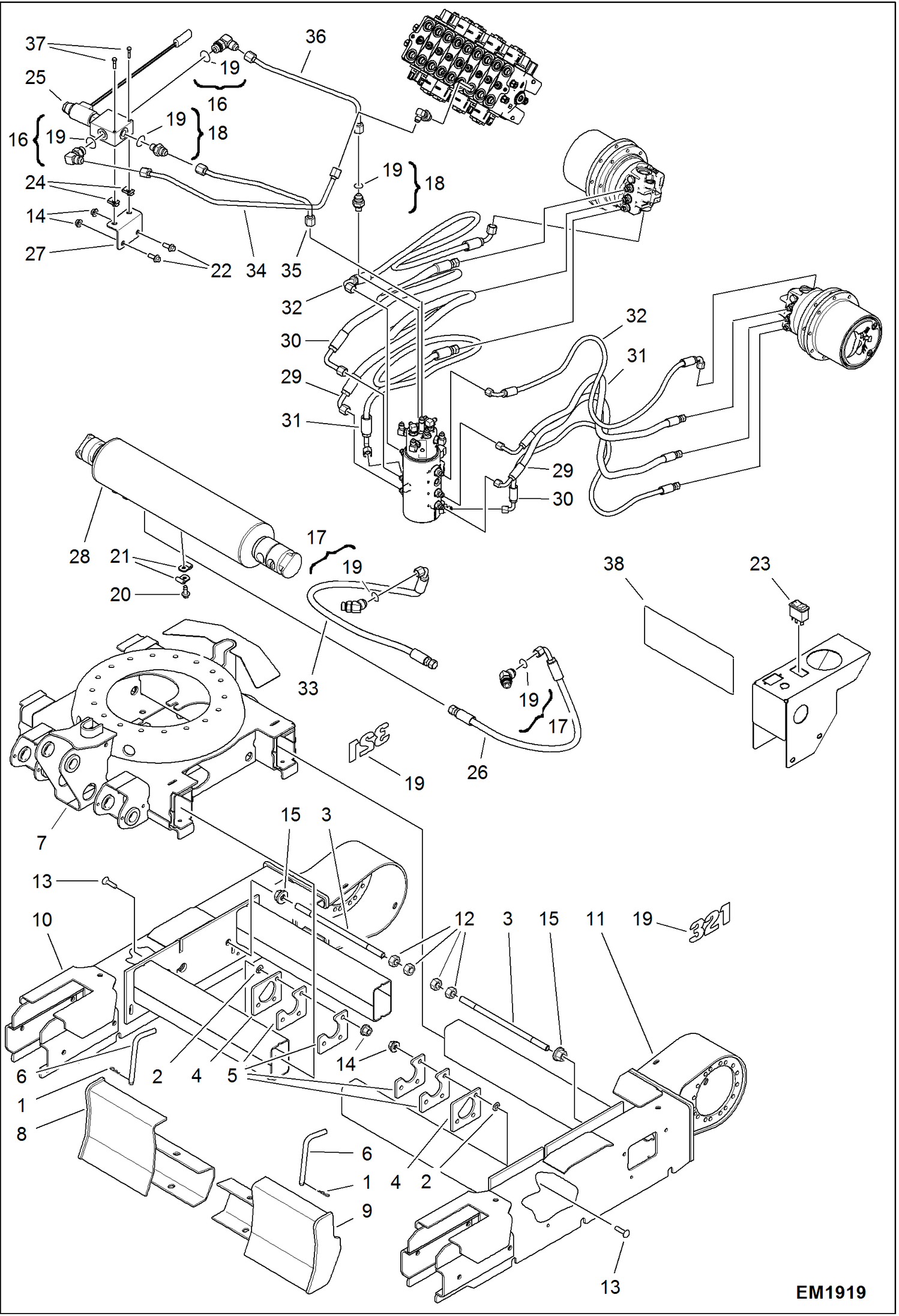

Запчасти Bobcat 321 EXPANDABLE UNDERCARRIAGE ACCESSORIES & OPTIONS

1

1306637

CLIP

2

6674264

RETAINER NUT

3

6805050

ROD

4

6805377

MOUNT

5

6805378

MOUNT

6

6805445

PIN

7

7124620

UNDERCARRIAGE W/A

8

7139266

BLADE, RH

9

7139273

BLADE, LH

10

7150755

FRAME, TRACK RH

11

7150756

FRAME, TRACK LH

12

1DM16

NUT

13

28CM1040

BOLT

14

51DM10

NUT

15

51DM16

NUT

16

17KB0606

FITTING W/ O-ring - W/Ref. 19 Was 17KB606 - D

17

18KB0606

FITTING, HYD ELBOW W/ O-ring - W/Ref. 19 Was 18KB606 - D

18

15KB0606

FITTING, HYD CONNECTOR W/ O-ring - W/Ref. 19 Was 15KB606 - D

19

79K6

O RING 10

20

29CM820

SCREW

21

30H38

CLIP

22

29CM1025

BOLT

23

6674025

SWITCH

24

6676026

NUT

25

6686508

BLOCK See Illustration SELECTOR VALVE/ EM1095

26

7103836

HOSE ASSY

27

7109284

BRACKET

28

7114691

CYLINDER See Illustration TRACK CYLINDER/ EM1920

29

7115649

HOSE ASSY

30

7115650

HOSE ASSY

31

7115651

hOSE ASSY

32

7115652

HOSE ASSY

33

7117442

HOSE ASSY

34

7122090

TUBELINE

35

7122091

TUBELINE

36

7122092

TUBELINE

37

1CM650

SCREW

38

7120144

DECAL LIFT CAPACITY 321 only

39

7138029

DECAL MODEL 321 Model 321 - 321 only
