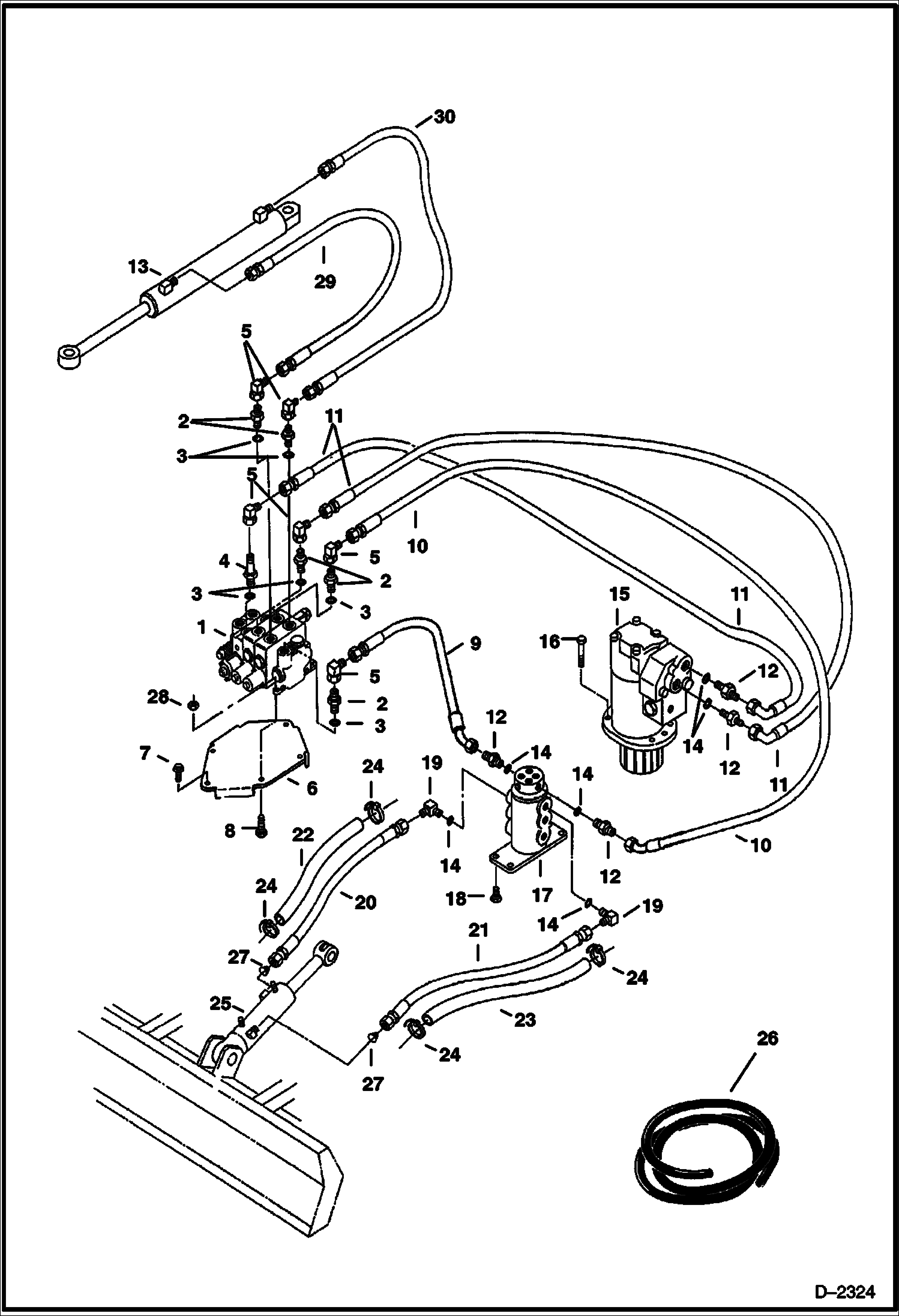

Запчасти Bobcat 320 HYDRAULIC CIRCUITRY (Blade & Swing) (S/N 511722859 -511723645) HYDRAULIC SYSTEM

1

6666878

VALVE See Illustration CONTROL VALVE ASSEMBLY/ B24429 3-spool

2

743108

FITTING W/Ref. 3

3

79K8

O RING 10

4

16KB0608

FITTING, HYD CONNECTOR W/Ref. 3 - Was 6587170 - A

5

11K5

FITTING

6

6595474

PLATE Mounting

7

29CM1035

SCREW

8

1CM1030

BOLT

9

HOSE See Illustration HYDRAULIC CIRCUITRY/ D2366 See BTIE-043 NLA - for new Hose Routing - Was 6535449 - A

10

HOSE See Illustration HYDRAULIC CIRCUITRY/ D2366 See BTIE-043 NLA - for new Hose Routing - Was 6587679 - A

11

6532126

HOSE See Illustration HYDRAULIC CIRCUITRY/ D2366 for new Hose Routing

12

15K5

FITTING W/Ref. 14

13

CYLINDER See Illustration SWING CYLINDER/ B20005 Boom Swing

14

79K6

O RING 10

15

6669539

SWING MOTOR See Illustration SWING MOTOR/ D2041 See BTIE-055 Was 6659533 - A

16

1CM1040

BOLT

17

6664409

SWIVEL JOINT See Illustration SWIVEL JOINT/ B14077

18

29CM1025

BOLT Use with swivel joint 6664409

19

17K5

ELBOW W/Ref. 14 - used with Swivel Joint 6664409

20

6597884

HOSE Was 6589723 - A

21

6597885

HOSE Was 6589724 - A

22

COVER NLA - Order Ref. 26 - 25'' (635mm) long

23

COVER NLA - Order Ref. 26 - 30'' (762mm) long

24

6665221

CABLE TIE Metal - Requires Tool MEL-1427 to install cable tie - Was 1715312B - A

25

CYLINDER See Illustration BLADE CYLINDER/ B18867 Blade

26

6649389

HOSE COVER Bulk - Sold Per Foot

27

6586430

ORIFICE .35'' - 0,90mm

27

6802681

ORIFICE .064''

27

6802682

ORIFICE .082''

28

1DM10

NUT

29

HOSE See Illustration HYDRAULIC CIRCUITRY/ D2366 See BTIE-043 NLA - for new Hose Routing - Was 6700215 - A

30

HOSE See Illustration HYDRAULIC CIRCUITRY/ D2366 See BTIE-043 NLA - for new Hose Routing - Was 6535444 - A
