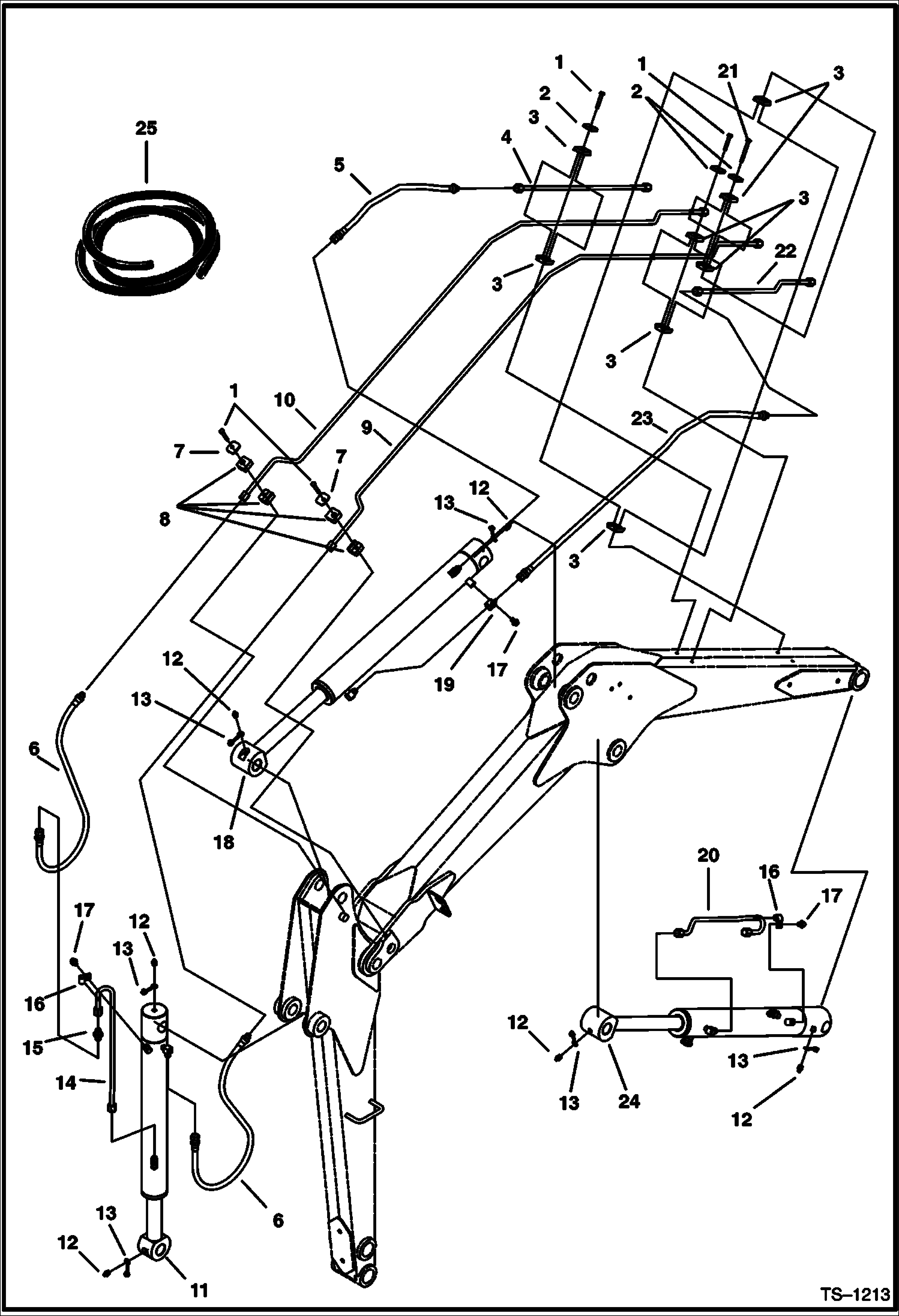

Запчасти Bobcat 320 HYDRAULIC CIRCUITRY (Boom & Arm) (S/N 511721116 & Above) HYDRAULIC SYSTEM

1

1CM640

SCREW

2

6535422

COVER Clamp

3

6578870

CLAMP

4

6595655

TUBE Was 6589173 - A

5

6597892

HOSE W/hose guard - Was 6589020 - C

5

COVER NLA - 21'' (533mm) long - Order Ref. 25

5

6665221

CABLE TIE Metal - requires tool MEL-1427 to install the cable tie

6

6597891

HOSE W/hose guard - Was 6587497 - C

6

COVER NLA - 36'' (900mm) long - Order Ref. 25

6

6665221

CABLE TIE Metal - requires tool MEL-1427 to install the cable tie

7

6665102

COVER Clamp

8

6665103

CLAMP

9

6595657

TUBE Was 6589177 - A

10

6595658

TUBE Was 6589178 - A

11

CYLINDER See Illustration BUCKET CYLINDER/ PE2532 Bucket

12

10H25

FITTING, GREASE 5

13

6652943

COVER grease fitting

14

6595659

TUBELINE, HYD Was 6589319 - A

15

87F5

FITTING

16

30H22

CLIP

17

29CM812

BOLT

18

CYLINDER See Illustration ARM CYLINDER/ B14212 Arm

19

30H37

CLAMP

20

6595654

TUBE

21

1CM660

BOLT

22

6595656

TUBE Was 6589174 - A

23

6597893

HOSE W/hose guard - Was 6589019 - C

23

COVER NLA - 42'' (1067mm) long - Order Ref. 25

23

6665221

CABLE TIE Metal - requires tool MEL-1427 to install the cable tie

24

CYLINDER See Illustration BOOM CYLINDER/ B14213 Boom

25

6649389

HOSE COVER Bulk-Sold Per Foot
