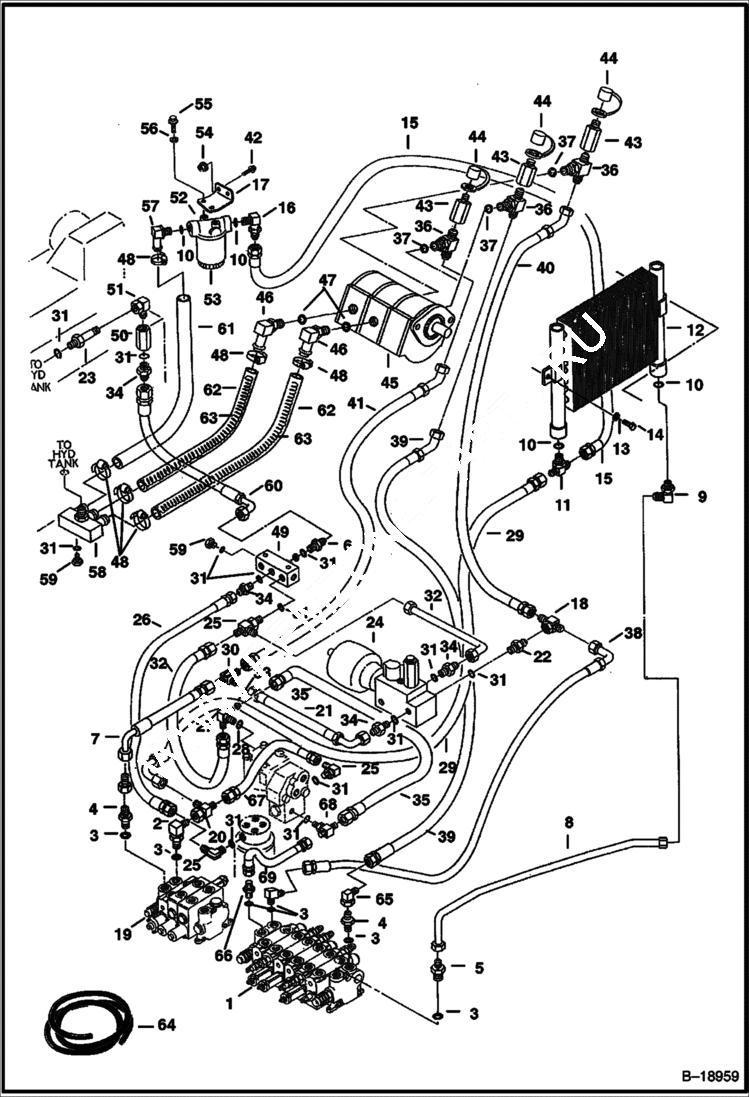

Запчасти Bobcat 320 HYDRAULIC CIRCUITRY (Pump to Valve to Cooler to Filter) (S/N 511725131 & Above) HYDRAULIC SYSTEM

1

6665003

VALVE See Illustration RELIEF VALVE/ C3364 6-spool

2

784568

ELBOW W/Ref. 3

3

79K10

O RING 10

4

731794

CONNECTR W/Ref. 3

5

15K7

FITTING W/Ref. 3

6

743108

FITTING

7

6537092

HOSE

8

6589994

TUBE

9

17KB1012

FITTING, HYD ELBOW W/Ref. 10 - Was 1302104 - A

10

79K16

O RING 10

11

6588344

TEE W/Ref. 10

12

6670250

OIL COOLER Was 6661759 - A

13

15EM80

WASHER

14

1CM816

BOLT

15

6587945

HOSE

16

731016

ELBOW W/Ref. 10

17

6588346

BRACKET Filter

18

14K5

TEE

19

6666878

VALVE See Illustration CONTROL VALVE ASSEMBLY/ B24429 3-spool

20

13K6

TEE

21

6628478

HOSE

22

7000000

ADAPTER See Illustration ACCUMULATOR VALVE/ C3418 Incl. W/Ref. 24

23

16K5

FITTING W/Ref. 31

24

6667814

MANIFOLD See Illustration ACCUMULATOR VALVE/ C3418 Joystick - W/Ref. 22

25

17K5

ELBOW W/Ref. 31

26

6530892

HOSE

27

17KB0604

ELBOW UNION W/Ref. 28 - Was 6579647 - A

28

79K4

O RING 10

29

6595087

HOSE

30

10K6

FITTING W/Ref. 37

31

79K6

O RING 10

32

6596738

TUBE

33

6593801

ORIFICE

34

15K5

FITTING W/Ref. 31

35

6801429

TUBE

36

19K6

FITTING W/Ref. 37 - .75'' thread

36

19KB810

FITTING, HYD TEE W/Ref. 37 - .875'' thread

37

79K8

O RING 10 .75'' ID

37

79K10

O RING 10 .875'' ID

38

6628422

HOSE

39

6587275

HOSE

40

6628421

HOSE

41

6595727

HOSE

42

29CM820

SCREW

43

6646635

COUPLER Diagnostic

44

6630367

CAP

45

PUMP See Illustration RELIEF VALVE/ C3364 See BTIE-025

46

6587230

ELBOW W/Ref. 47 - .875'' thread

46

7235691

FITTING, HYD ELBOW W/Ref. 47 - 1.31'' thread

47

79K10

O RING 10 .875'' ID

47

79K16

O RING 10 1.31'' ID

48

42H12

CLAMP 10

49

6667830

DRAIN BLOCK Drain

50

6667552

FILTER

51

11K5

FITTING

52

6654897

FILTER ASSY W/Ref. 53

53

6653336

ELEMENT Filter

54

42DM8

NUT

55

1C610

BOLT

56

4E6

WASHER

57

6588349

ELBOW W/Ref. 10

58

6588348

ELBOW W/Ref. 10

59

24K5

PLUG W/Ref. 31

60

6586582

HOSE

61

HOSE NLA - Order Ref. 64 - 35'' (889mm) long

62

HOSE NLA - Order Ref. 64 - 13'' (330mm) long

63

6537025

SPRING

64

755622

HOSE-BULK/FOOT Bulk - Sold Per Foot

65

11K6

UNION

66

26GM6016

SCREW

66

731795

CONNECTR W/Ref. 3

67

6801427

HOSE

68

19K5

FITTING W/Ref. 31

69

6801428

TUBE
