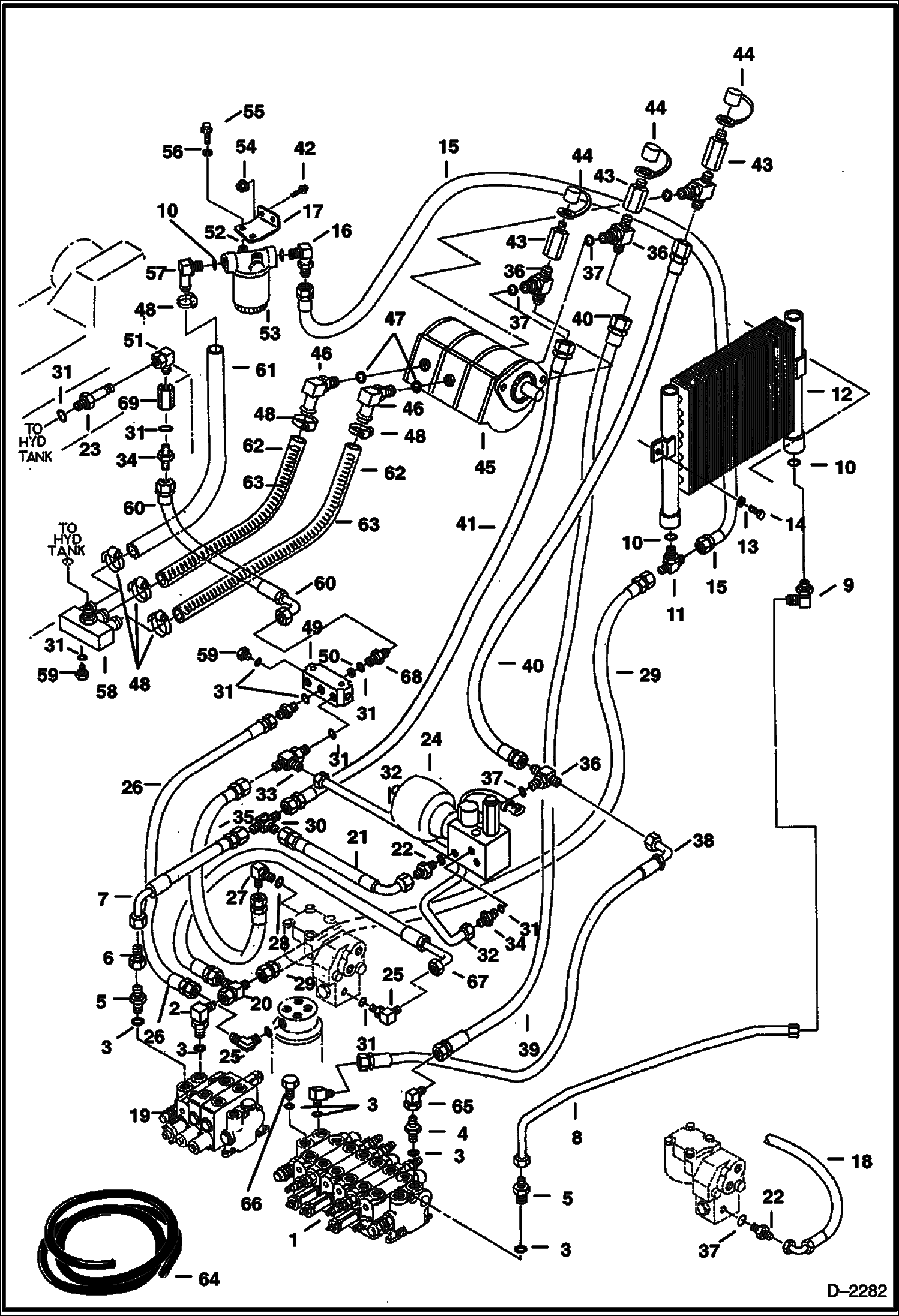

Запчасти Bobcat 320 HYDRAULIC CIRCUITRY (Pump to Valve to Cooler to Filter) (S/N 511721412 & 511724214) HYDRAULIC SYSTEM

1

6665003

VALVE See Illustration RELIEF VALVE/ C3364 6-spool

2

784568

ELBOW W/Ref. 3

3

79K10

O RING 10

4

731794

CONNECTR W/Ref. 3

5

15K7

FITTING W/Ref. 3

6

784244

ADAPTOR

7

6537092

HOSE

8

6589994

TUBE

9

17KB1012

FITTING, HYD ELBOW W/Ref. 10 - Was 1302104 - A

10

79K16

O RING 10

11

6588344

TEE W/Ref. 10

12

6670250

OIL COOLER Was 6661759 - A

13

15EM80

WASHER

14

1CM816

BOLT

15

6587945

HOSE

16

731016

ELBOW W/Ref. 10

17

6588346

BRACKET filter

18

6537088

HOSE

19

6665002

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2267 3-spool

19

6666878

VALVE See Illustration CONTROL VALVE ASSEMBLY/ B24429 3-spool

20

13K6

TEE

21

6595040

HOSE

22

15K6

ADAPTER W/Ref. 37

23

16K5

FITTING W/Ref. 31

24

MANIFOLD See Illustration JOYSTICK MANIFOLD/ B13776 Joystick

25

17K5

ELBOW W/Ref. 31

26

6530892

HOSE

27

17KB0604

ELBOW UNION W/Ref. 28 - Was 6579647 - A

28

79K4

O RING 10

29

6595087

HOSE

30

10K6

FITTING W/Ref. 37

31

79K6

O RING 10

32

6588371

TUBE

33

21K5

TEE W/Ref. 31

34

15K5

FITTING W/Ref. 31

35

6536789

HOSE

36

19K6

FITTING W/Ref. 37 - .75'' thread

36

19KB810

FITTING, HYD TEE W/Ref. 37 - .875'' thread

37

79K8

O RING 10 .75'' ID

37

79K10

O RING 10 .875'' ID

38

6595086

HOSE Was 6539835 - A

39

6587275

HOSE

40

6587276

HOSE

41

6595727

HOSE Was 6595039 - A

42

29CM820

SCREW

43

6646635

COUPLER diagnostic

44

6630367

CAP

45

PUMP See Illustration GEAR PUMP/ B20155 See BTIE-025 - A

46

6587230

ELBOW W/Ref. 47 - .875'' thread

46

7235691

FITTING, HYD ELBOW W/Ref. 47 - 1.31'' thread

47

79K10

O RING 10 .875'' ID

47

79K16

O RING 10 1.31'' ID

48

42H12

CLAMP 10

49

6667829

BLOCK Drain - W/Ref. 50 & 68 - Was 6587439 - A

49

6667830

DRAIN BLOCK Drain - W/O Screen - Ref. 50

50

6587439

DISC screen

51

11K5

FITTING

52

6654897

FILTER ASSY W/Ref. 53

53

6653336

ELEMENT filter

54

42DM8

NUT

55

1C610

BOLT

56

4E6

WASHER

57

6588349

ELBOW W/Ref. 10

58

6588348

ELBOW W/Ref. 10

59

24K5

PLUG W/Ref. 31

60

6587277

HOSE Use when Screen, Ref. 50 is used

60

6586582

HOSE Use when Inline Filter, Ref. 69 is used

61

HOSE NLA - Order Ref. 64 - 35'' (889mm) long

62

HOSE NLA - Order Ref. 64 - 13'' (330mm) long

63

6537025

SPRING

64

755622

HOSE-BULK/FOOT Bulk - Sold Per Foot

65

11K6

UNION

66

24K7

PLUG W/Ref. 3

67

6537418

HOSE

68

743108

FITTING W/Ref. 37

69

6667552

FILTER Inline
