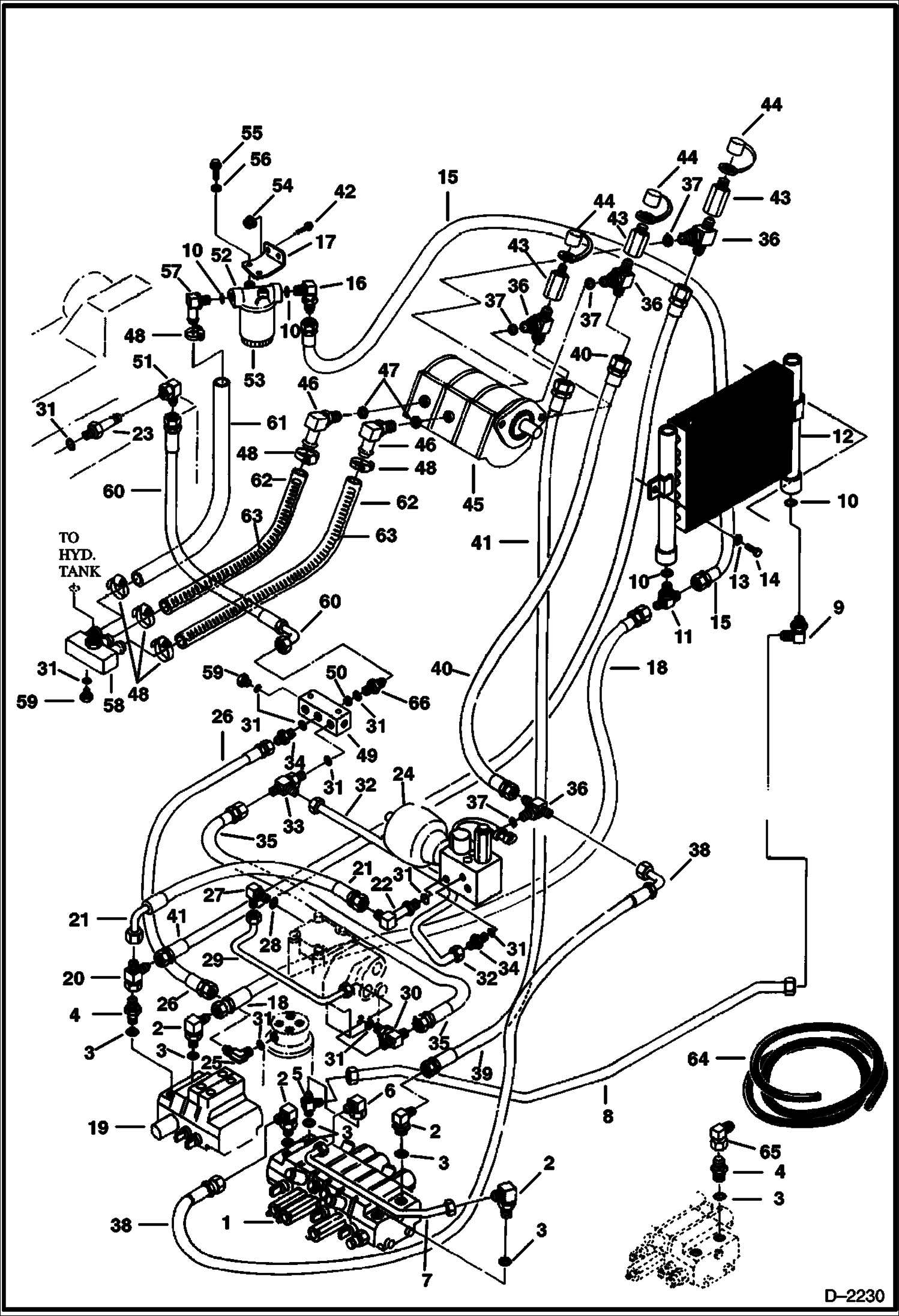

Запчасти Bobcat 320 HYDRAULIC CIRCUITRY (Pump to Valve to Cooler to Filter) (S/N 511720001-511721411) HYDRAULIC SYSTEM

1

6661592

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2099 6-spool

2

784568

ELBOW W/Ref. 3

3

79K10

O RING 10

4

731794

CONNECTR W/Ref. 3

5

21K7

TEE W/Ref. 3

6

6662768

ELBOW

7

6587806

TUBE

8

6588345

TUBE

9

17KB1012

FITTING, HYD ELBOW W/Ref. 10 - Was 1302104 - A

10

79K16

O RING 10

11

6588344

TEE W/Ref. 10

12

6670250

OIL COOLER Was 6661759 - A

13

15EM80

WASHER

14

1CM816

BOLT

15

6587945

HOSE

16

731016

ELBOW W/Ref. 10

17

6588346

BRACKET filter

18

6588427

HOSE

19

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2118 NLA - 3-spool - Was 6661593 - A

20

13K6

TEE

21

6536783

HOSE

22

6812820

ELBOW W/Ref. 31 - Was 6511914 - A

23

16K5

FITTING W/Ref. 31

24

MANIFOLD See Illustration JOYSTICK MANIFOLD/ B13776 Joystick

25

6654378

ELBOW

25

17K5

ELBOW W/Ref. 31

26

6530892

HOSE

27

17KB0604

ELBOW UNION W/Ref. 28 - Was 6579647 - A

28

79K4

O RING 10

29

6587122

TUBE

30

19K5

FITTING W/Ref. 31

31

79K6

O RING 10

32

6588371

TUBE

33

21K5

TEE W/Ref. 31

34

15K5

FITTING W/Ref. 31

35

6536789

HOSE

36

19K6

FITTING W/Ref. 37 - .75'' thread

36

19KB810

FITTING, HYD TEE W/Ref. 37 - .875'' thread

37

79K8

O RING 10 .75'' ID

37

79K10

O RING 10 .875'' ID

38

6539835

HOSE

39

6587275

HOSE

40

6587276

HOSE

41

6587278

HOSE

42

29CM820

SCREW

43

6646635

COUPLER Diagnostic

44

6630367

CAP

45

PUMP See Illustration GEAR PUMP/ B20155 See BTIE-025

46

6587230

ELBOW W/Ref. 47 - .875'' thread

46

7235691

FITTING, HYD ELBOW W/Ref. 47 - 1.31'' thread

47

79K10

O RING 10 .875'' ID

47

79K16

O RING 10 1.31'' ID

48

42H12

CLAMP 10

49

6667829

BLOCK Drain - W/Ref. 50 & 66 - Was 6587437 - A

49

6667830

DRAIN BLOCK Drain - W/O Ref. 50 - See Service Letter Dated Aug. 20, 96

50

6587439

DISC Screen

51

11K5

FITTING

52

6654897

FILTER ASSY W/Ref. 53

53

6653336

ELEMENT Filter

54

42DM8

NUT

55

1C610

BOLT

56

4E6

WASHER

57

6588349

ELBOW W/Ref. 10

58

6588348

ELBOW W/Ref. 10

59

24K5

PLUG W/Ref. 31

60

6587277

HOSE

61

HOSE NLA - Order Ref. 64 - 35'' (889mm) long

62

HOSE NLA - Order Ref. 64 - 13'' (330mm) long

63

6537025

SPRING

64

755622

HOSE-BULK/FOOT Bulk - Sold Per Foot

65

ELBOW NLA - Order Ref. 2 - Was 11K000006B - B

66

743108

FITTING W/Ref. 37
