Запчасти Bobcat 320 HYDRAULIC CIRCUITRY (Joystick Controls) (ISO) (S/N 511724215 & Above) HYDRAULIC SYSTEM

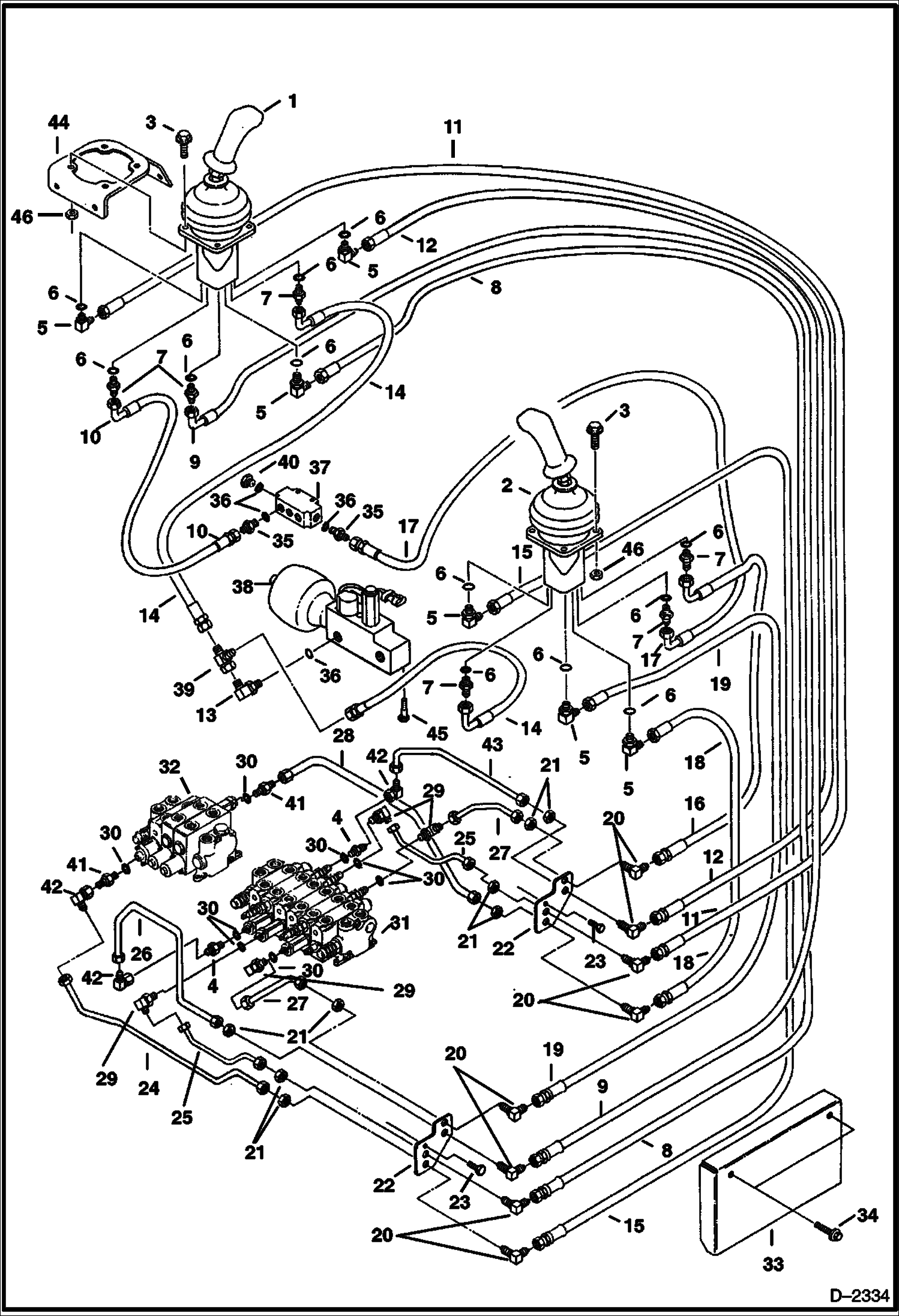

Схема запчастей Bobcat 320 - HYDRAULIC CIRCUITRY (Joystick Controls) (ISO) (S/N 511724215 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6667722

JOYSTICK, RH See Illustration R.H. JOYSTICK CONTROLS/ D1972 - RH

2

6667721

JOYSTICK See Illustration L.H. JOYSTICK CONTROLS/ D1973 - LH

3

26GM8020

SCREW

4

6665375

RESTRICTOR Restrictor - W/Ref. 30

5

1316049

ELBOW W/Ref. 6

6

79K6

O RING 10

7

1308081

ADAPTER W/Ref. 6

8

6597817

HOSE

9

6597816

HOSE

10

6597815

HOSE

11

6597819

HOSE

12

6597818

HOSE

13

17K5

ELBOW W/Ref. 36

14

6597809

HOSE

15

6597588

HOSE

16

6597811

HOSE

17

6597580

HOSE

18

6597585

HOSE

19

6597582

HOSE

20

88F3

ELBOW 5

21

86F3

LOCKNUT

22

6587012

PLATE

23

29CM1025

BOLT

24

6594800

TUBE

25

6589996

TUBE

26

6589998

TUBE

27

6589995

TUBE

28

6589999

TUBE

29

17K3

ELBOW W/Ref. 30

30

79K4

O RING 10

31

6665861

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2099 6-spool

32

6666878

VALVE See Illustration CONTROL VALVE ASSEMBLY/ B24429 3-spool

33

6587013

COVER

34

29CM1055

BOLT

35

15K5

FITTING W/Ref. 36

36

79K6

O RING 10

37

6667830

DRAIN BLOCK Drain

38

6667814

MANIFOLD See Illustration CONTROL VALVE ASSEMBLY/ D2099 Joystick

39

13K5

TEE

40

24K5

PLUG W/Ref. 36

41

15K3

CONNECTOR W/Ref. 30

42

11K3

ELBOW

43

6589997

TUBE

44

6597302

MOUNT L.H. & R.H.

45

29CM830

CAPSCREW

46

1DM6

NUT

Выбрано товаров: 46
