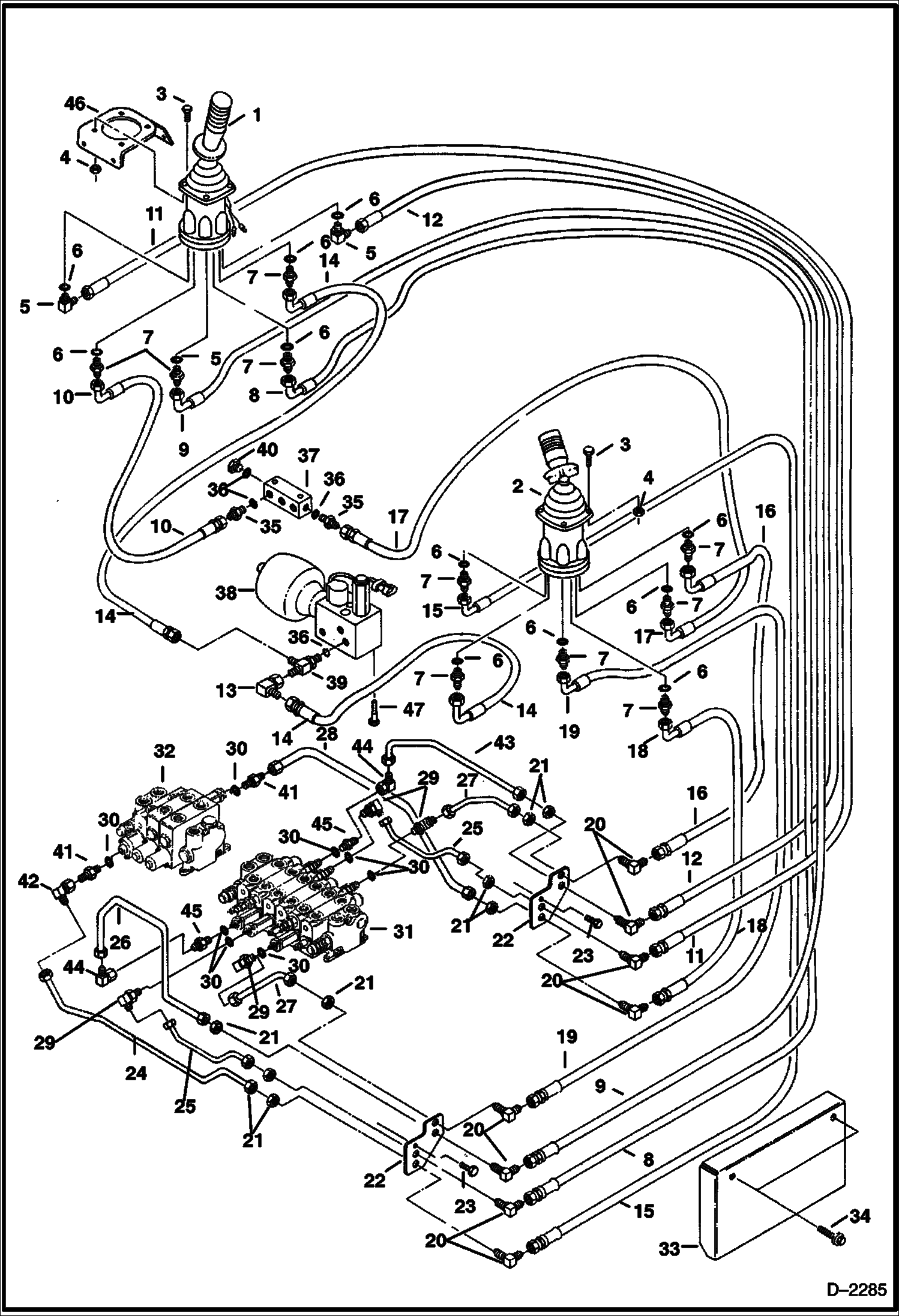

Запчасти Bobcat 320 HYDRAULIC CIRCUITRY (Joystick Controls) (ISO) (S/N 511721412 & 511724214) HYDRAULIC SYSTEM

1

6654120

JOYSTICK ASSY. See Illustration R.H. JOYSTICK CONTROLS/ D1972 - RH

2

6654119

JOYSTICK ASSY. See Illustration L.H. JOYSTICK CONTROLS/ D1973 - LH

3

1CM625

BOLT

4

1DM6

NUT

5

6657392

ELBOW W/Ref. 6

6

6655244

O-RING

7

6654895

ADAPTER W/Ref. 6

8

6595217

HOSE

9

6587288

HOSE

10

6579167

HOSE

11

6595218

HOSE

12

6587289

HOSE

13

11K5

FITTING

14

6618198

HOSE

15

6588370

HOSE

16

6588388

HOSE

17

6587294

HOSE

18

6588387

HOSE

19

6588389

HOSE

20

88F3

ELBOW 5

21

86F3

LOCKNUT

22

6587012

PLATE

23

1CM1025

BOLT

24

6594800

TUBE

25

6589996

TUBE

26

6589998

TUBE Was 6599998 - D

27

6589995

TUBE

28

6589999

TUBE

29

17K3

ELBOW W/Ref. 30

30

79K4

O RING 10

31

6665003

VALVE See Illustration CONTROL VALVE ASSEMBLY/ D2099 6-spool

32

6665002

VALVE See Illustration OUTLET VALVE SECTION/ C3232 3-spool

32

6666878

VALVE See Illustration CONTROL VALVE ASSEMBLY/ B24429 3-spool

33

6587013

COVER

34

29CM1055

BOLT

35

15K5

FITTING W/Ref. 36

36

79K6

O RING 10

37

6667829

BLOCK Drain - W/Screen - Was 6587437 - A

37

6667830

DRAIN BLOCK Drain - W/O Screen

38

MANIFOLD See Illustration CONTROL VALVE ASSEMBLY/ D2099 Joystick

39

21K5

TEE W/Ref. 36

40

24K5

PLUG W/Ref. 36

41

15K3

CONNECTOR W/Ref. 30

42

11K3

ELBOW

43

6589997

TUBE

44

11K3

ELBOW

45

6665375

RESTRICTOR Restrictor/Check Valve

46

6586848

BRACKET L.H. & R.H.

47

1CM825

BOLT
