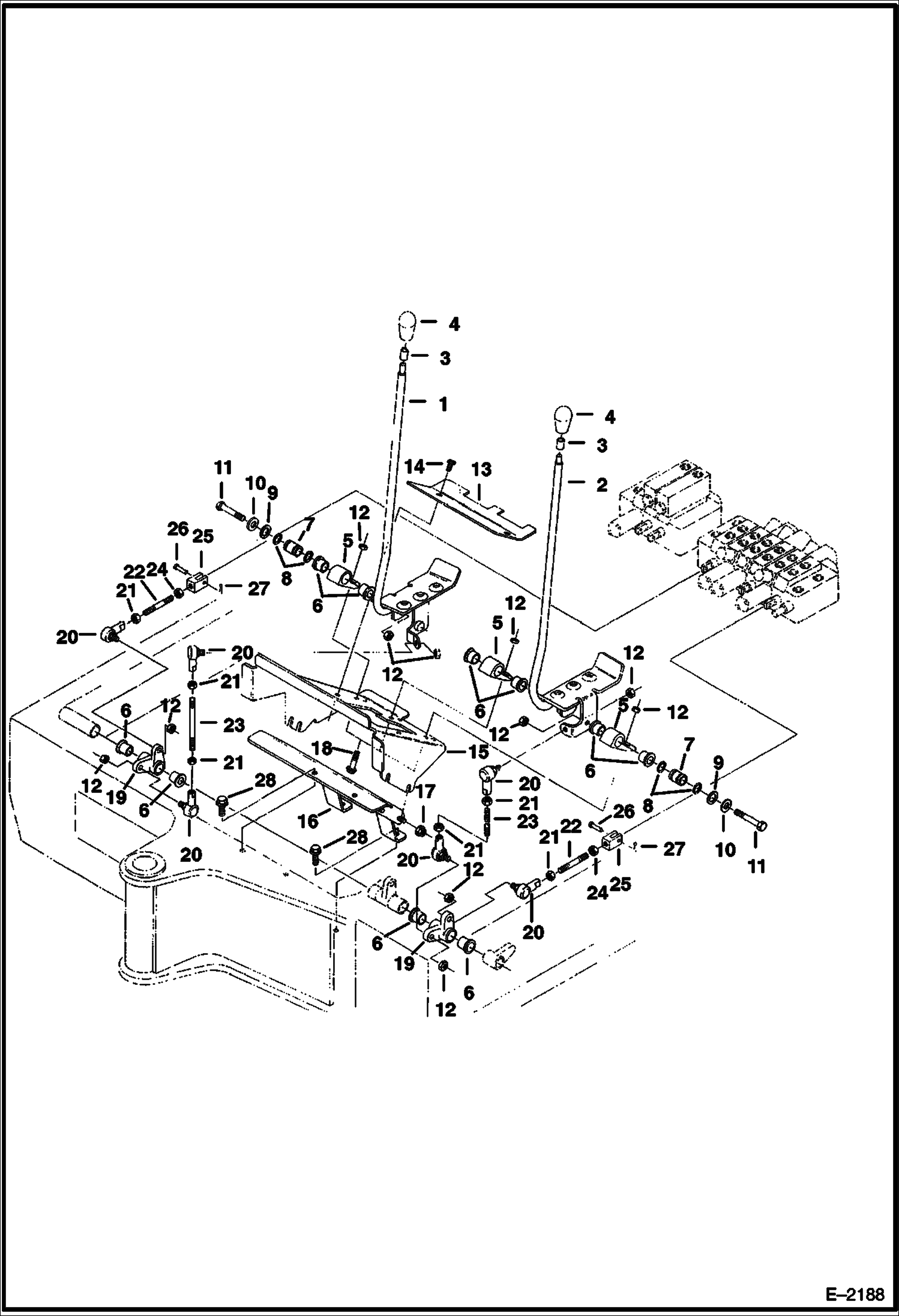

Запчасти Bobcat 320 TRAVEL/STEERING LEVERS CONTROLS

1

6588434

LEVER R.H. travel

1

6589983

LEVER RH travel

2

6588431

LEVER L.H. travel

2

6589981

LEVER LH travel

3

6660787

RING tolerance

4

6658184

KNOB

5

6537481

MOUNT Pivot

6

6536801

BUSHING

7

6536545

SLEEVE

8

58K015

O-RING 10

9

6536802

WASHER

10

27E6

WASHER 5

11

1CM1055

BOLT

12

49DM10

NUT

13

6801982

COVER Was 6586646 - A

14

26GM10020

BOLT Was 1CM00812B - B

15

6586629

MOUNT

16

SUPPORT NLA - Order (1) 6586628 & (4) 26GM10020B - Was 6587498 - A

16

6586628

SUPPORT

17

42DM10

NUT Use W/6587498 Support - Ref.16

17

26GM10020

BOLT Use W/6586628 Support - Ref.16

18

29CM1025

BOLT

19

6536831

LEVER

20

6536531

BALL JOINT

21

1DM10

NUT

22

6587429

ROD

23

6586645

ROD

24

6587431

NUT LH thread

25

6587430

CLEVIS LH thread

26

6536543

PIN Clevis

27

1F212

PIN

28

29CM1020

BOLT
