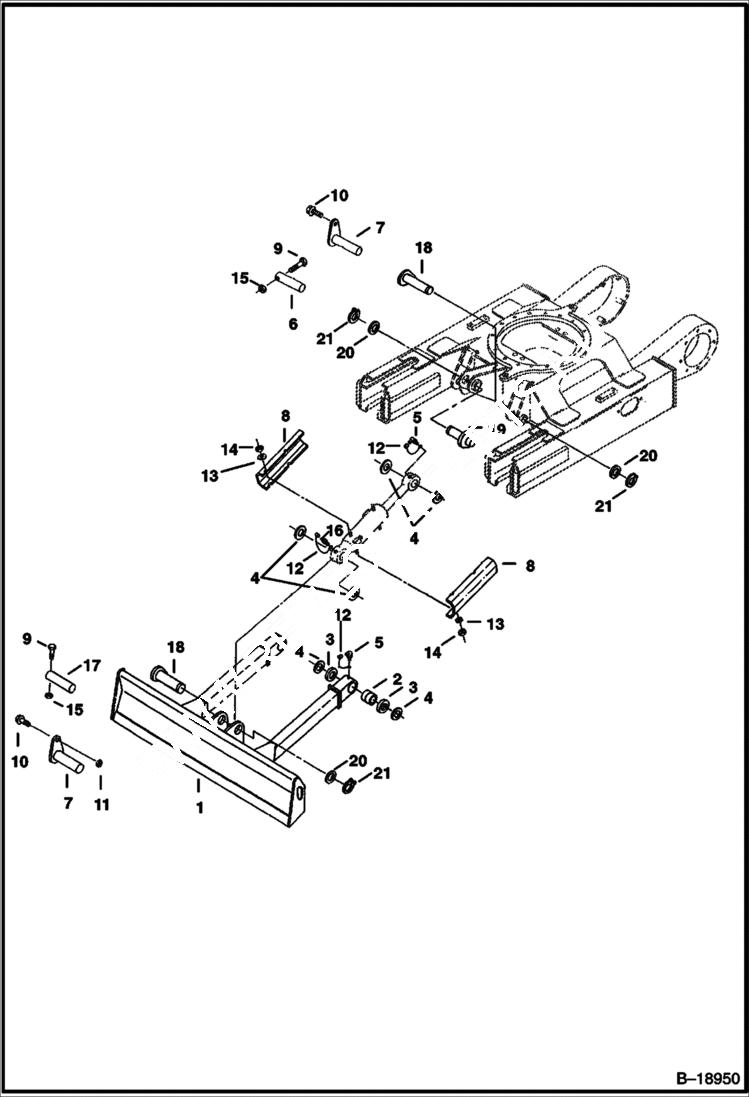

Запчасти Bobcat 320 BLADE WORK EQUIPMENT

1

6597237

BLADE Was 6589852 - A

2

6533484

BUSHING Use With Blade 6588655 only

3

6653534

SEAL Use With Blade 6588655 only

4

6533856

SHIM

5

12H15

FITTING, GREASE 5

6

6533501

PIN

7

6533507

PIN

8

6536611

SHIELD

9

1CM855

BOLT

10

29CM1020

BOLT

11

49DM10

NUT

12

6652943

COVER grease fitting

13

17EM100

WASHER Not used on later models

14

52DM10

NUT Was 49DM00010B - A

15

49DM8

NUT

16

10H25

FITTING, GREASE 5

17

6533500

PIN Blade Cylinder base end

18

6597296

PIN

19

6597305

PIN

20

6589699

WASHER

21

6512132

SNAP RING
