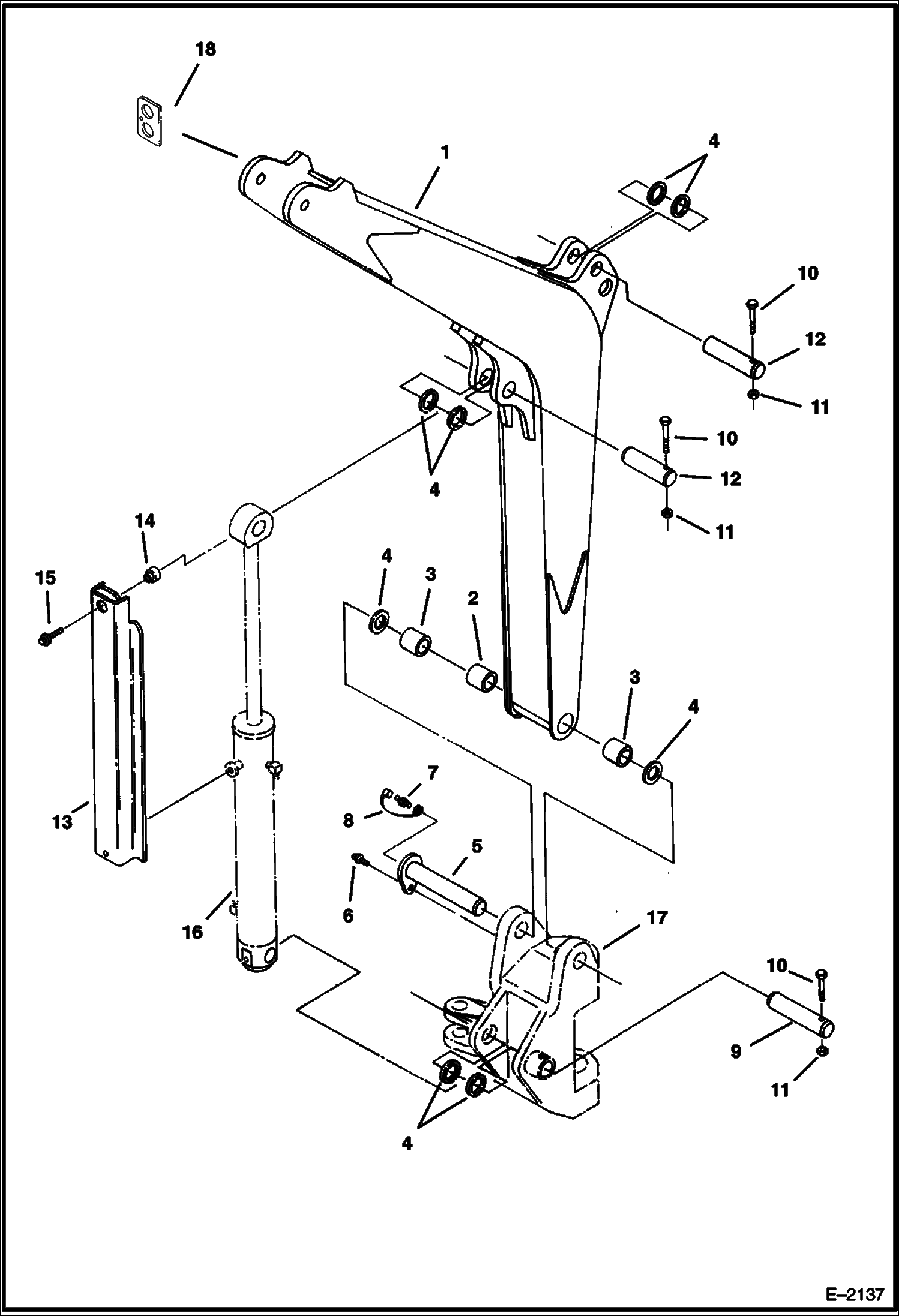

Запчасти Bobcat 320 BOOM (S/N 511720001-511721115) WORK EQUIPMENT

1

6588063

BOOM Also Order Refs. 2, 3 & 4

2

6533428

SPACER

3

6587765

BUSHING, PRESS FIT

4

6533856

SHIM

5

6587353

PIN

6

29CM1020

BOLT

7

10H25

FITTING, GREASE 5

8

6652943

COVER grease fitting

9

6587355

PIN

10

1CM855

BOLT

11

49DM8

NUT

12

6533496

PIN

13

6587469

SHIELD

14

6587472

SPACER

15

59CM1035

BOLT Was 29CM01035B - B

16

CYLINDER See Illustration BOOM CYLINDER/ C3316 boom

17

6587258

SWING POST See Illustration SWING POST/ E2138

18

6589353

PLATE Welded on the Boom
