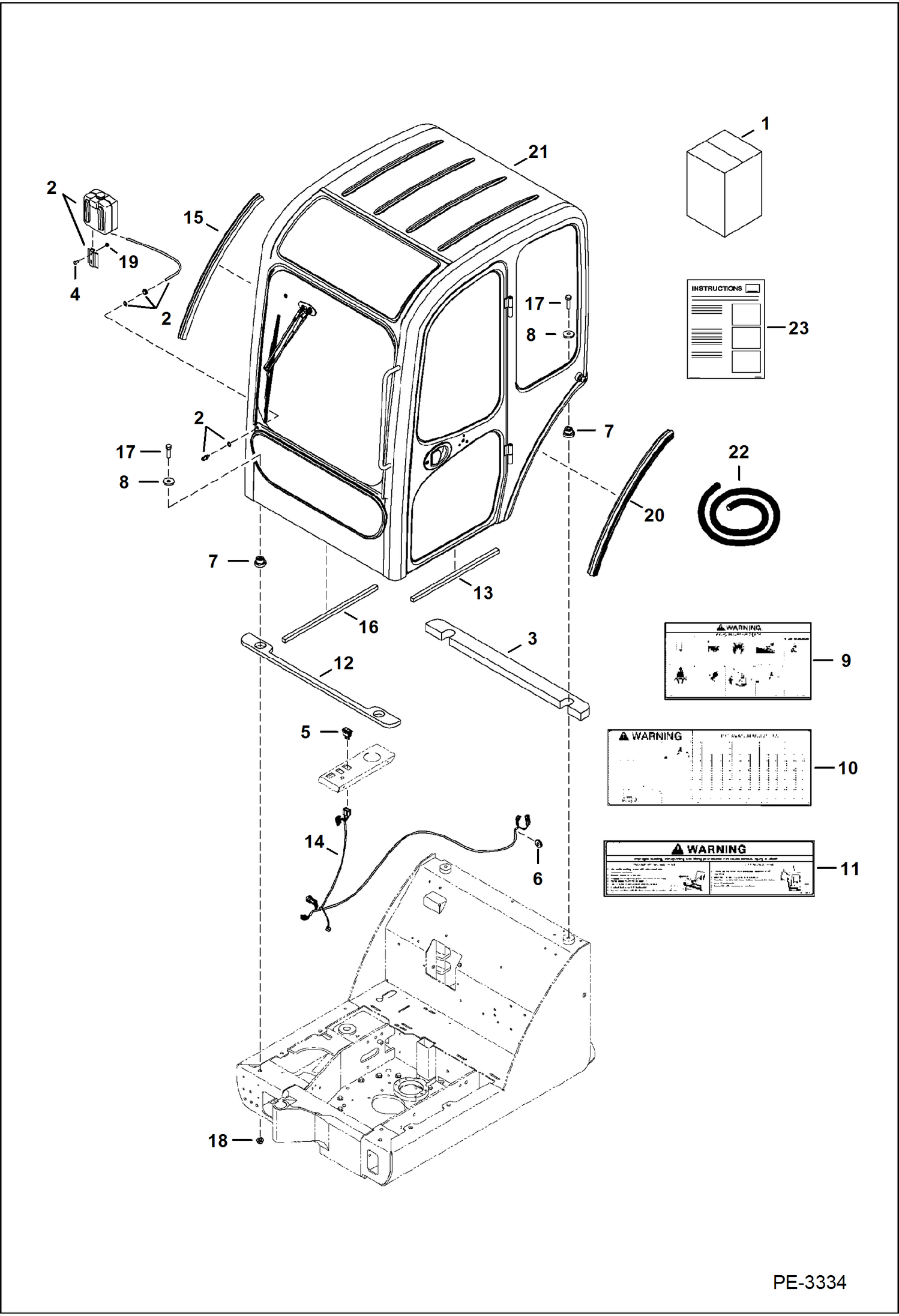

Запчасти Bobcat 320 CAB KIT ACCESSORIES & OPTIONS

1

CAB ASSY. NLA - Order components - Was 7103483 - A

2

WASHER NLA - kit - Order 6666767 nozzle, 6691499 tank assy, 6664557 bracket, & 5 feet of 6708310 bulk hose - Was 6664438 - A

3

6816177

SEAL

4

6667196

BOLT

5

6671113

SWITCH

6

6682697

GROMMET

7

7001052

MOUNT, ENG Was 6804026 - A

8

6805244

WASHER

9

6807776

DECAL warning - text

9

7120576

DECAL warning - ESA No-text

10

6808183

DECAL lift capacity - text - 322

10

6808184

DECAL lift capacity - text - 320

10

7120919

DECAL lift capacity - ESA No-text - 320

10

7104069

DECAL lift capacity - text - 323

10

7120920

DECAL lift capacity - ESA No-text - 323

11

6808185

DECAL warning - text

11

7120577

DECAL warning - ESA No-text

12

6816176

SEAL

13

7101051

SEAL

14

7103407

HARNESS,CAB

15

SEAL NLA - 33.1'' (841 mm) long - Order Ref. 23

16

SEAL NLA - 26.7'' (679 mm) long - Order Ref. 23

17

10CM1455

BOLT

18

43DM14

NUT

19

61D4

NUT 5

20

SEAL NLA - 33'' (839 mm) long - Order Ref. 23

21

CAB NLA - Was 7103482 - A

21

7222242

KIT, CAB see cab illustrations for other cab piece parts - Ref. 9 & 11

21

6990466

INSTRUCTIONS

22

6817343

SEAL 951 mm (3.12') long

23

6902931

INSTRUCTIONS
