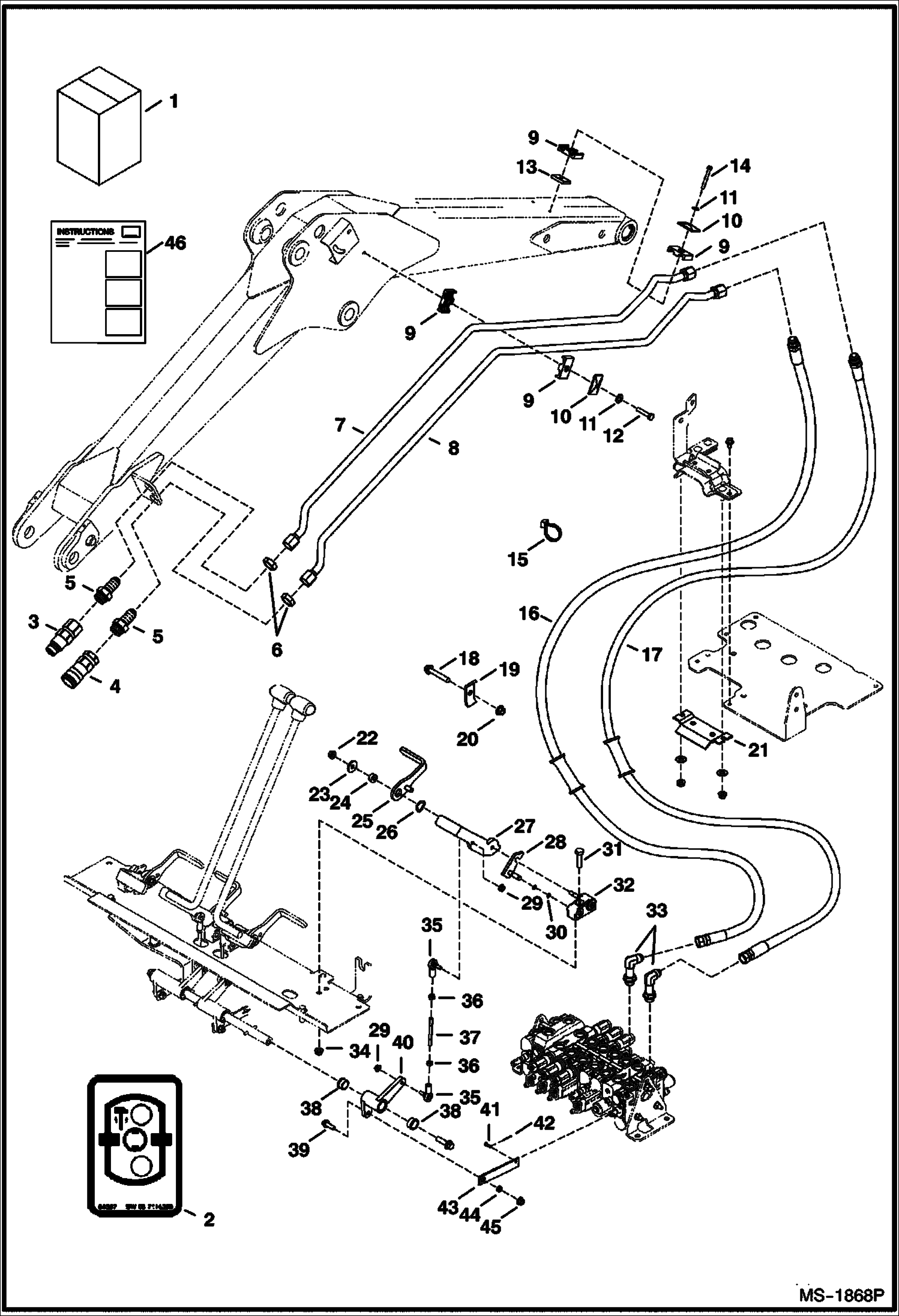

Запчасти Bobcat 320 AUXILIARY HYDRAULICS KIT (320L) ACCESSORIES & OPTIONS

1

6818146

AUX HYD KIT

2

7115386

DECAL VALVE

3

6674688

COUPLER, FF MALE straight - Was 6667808 - A

4

6672960

COUPLER, FF FEMALE straight

5

6812816

ADAPTER

6

86F7

LOCK NUT

7

7115960

TUBE

8

7115961

TUBE

9

6577697

CLAMP

10

6652521

PLATE

11

15EM80

WASHER

12

1CM840

BOLT

13

6589130

COVER

14

1CM650

SCREW

15

6624289

STRAP, TIE

16

6675907

HOSE

17

6675786

HOSE

18

29CM1060

SCREW

19

6502426

CLAMP

20

43DM10

NUT

21

6806848

BRACKET

22

47DM8

NUT

23

6701174

WASHER

24

6810303

SPACER

25

6810511

PEDAL

26

6536803

WASHER

27

6816110

PEDAL

28

6808930

LOCK

29

98D4

NUT

30

54K20008

O-RING

31

1CM1040

BOLT

32

6677904

BEARING

33

6812820

ELBOW

34

51DM10

NUT

35

6631036

JOINT

36

62D4

NUT

37

6807228

ROD

38

6536801

BUSHING

39

29CM825

BOLT

40

6807321

BELLCRANK

41

6801068

PIN

42

1F212

PIN

43

6807222

LINK

44

6807220

SPACER

45

51DM8

NUT

46

6902670

INSTRUCTIONS
