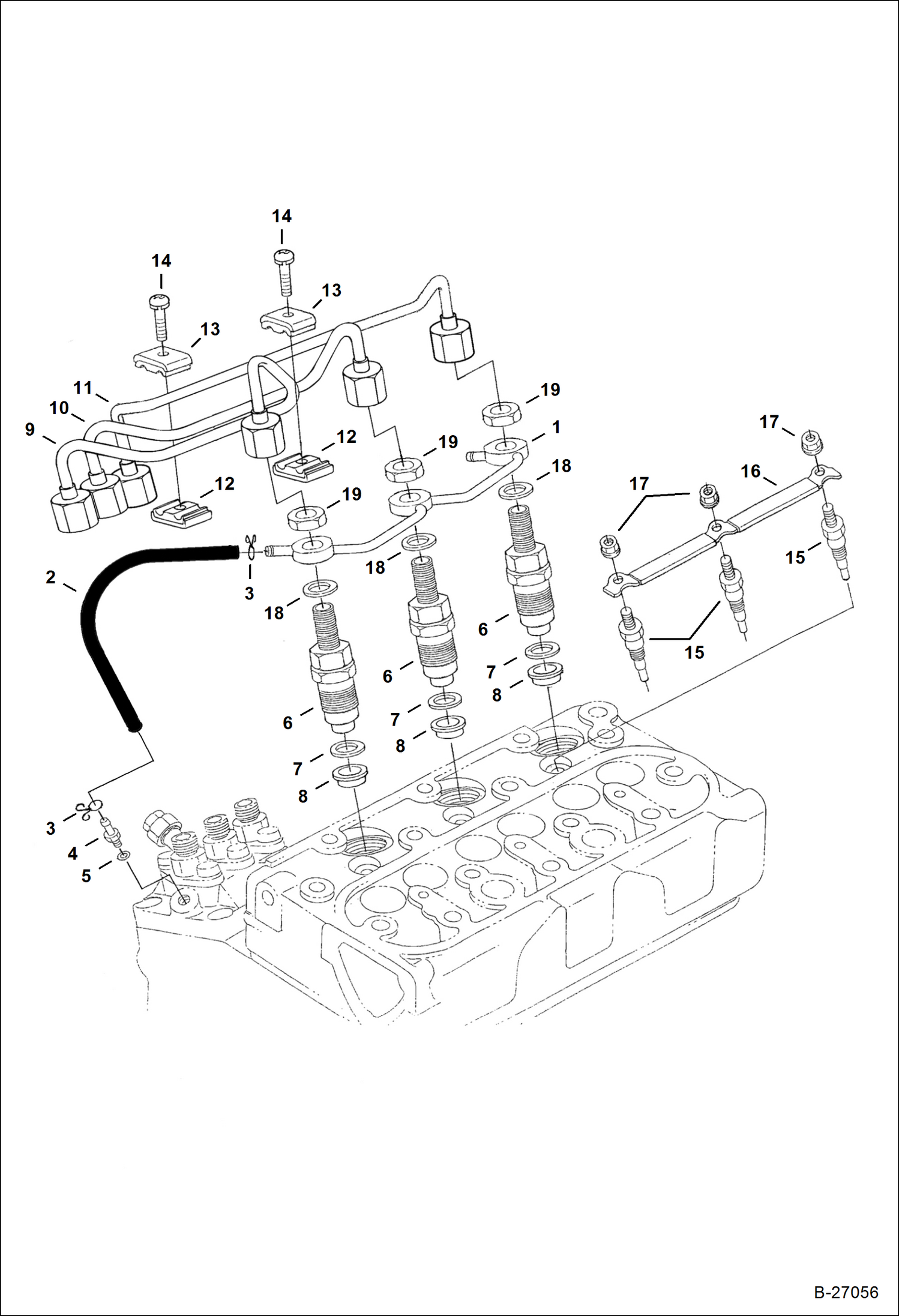

Запчасти Bobcat 320 INJECTOR NOZZLES (Kubota - D722-E3B-BC-5) (Tier IV Replacement) REPLACEMENT ENGINE

1

6670463

PIPE injector return

2

6670464

HOSE overflow - W/Ref. 3

3

6654718

CLAMP

4

6657446

SCREW bleeder

5

3974972

GASKET

6

NOZZLE HOLDER See Illustration NOZZLE HOLDER/ B14862A - Was 6670465 - B

7

6655218

GASKET

8

6655872

HEAT SEAL

9

6698158

PIPE, INJECTION

10

7000380

PIPE, INJECTION

11

7000381

PIPE, INJECTION

12

6652688

CLAMP

13

6652689

CLAMP

14

3974260

SCREW

15

6670470

GLOW PLUG

16

6670471

WIRE

17

6670472

NUT

18

6657463

WASHER W/ 2 bleed holes
