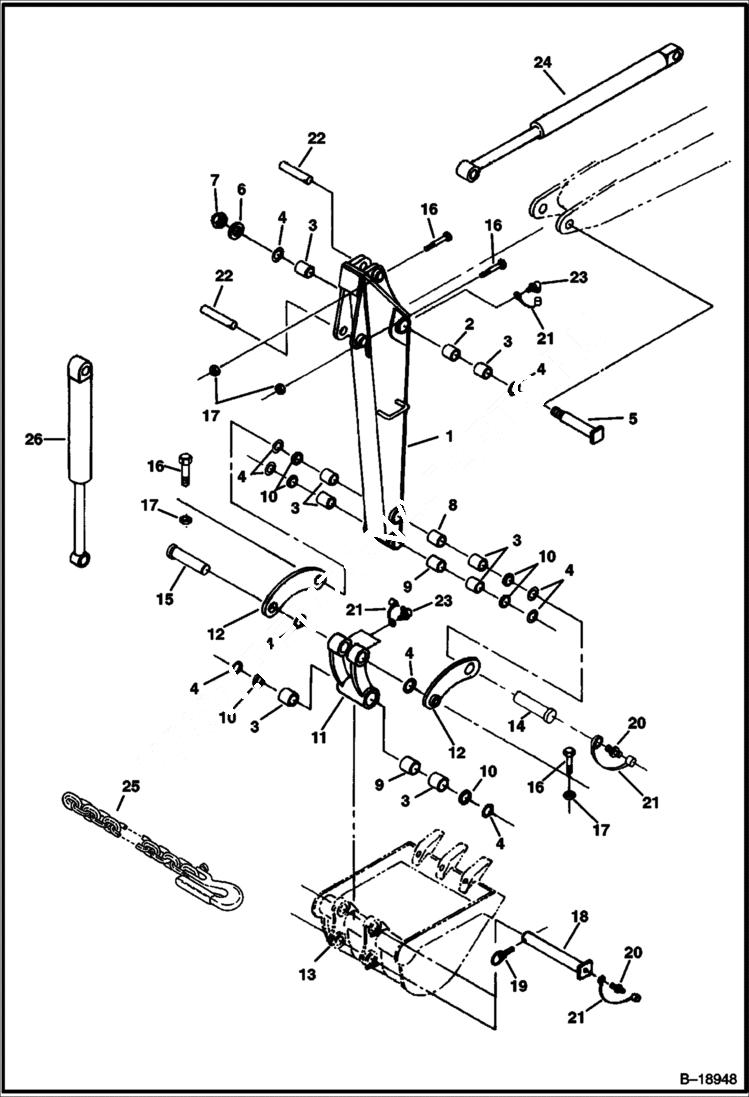

Запчасти Bobcat 320 ARM (S/N 511720001-21115) WORK EQUIPMENT

1

6587834

ARM Also Order Refs. 2, 3, 8 & 10

2

6533447

SPACER

3

6539270

BUSHING Was 6587765 - B

4

6533856

SHIM

5

6588065

PIN

6

1EM240

WASHER

7

49DM24

NUT

8

6533458

SPACER

9

6536851

SPACER

10

6653534

SEAL

11

6586425

LINK

12

6587741

LINK Bucket

13

BUCKET

14

6533498

PIN

15

6539526

PIN

16

1CM855

BOLT

17

49DM8

NUT

18

6539737

PIN, PIVOT

19

6560382

PIN, LOCK Retainer

20

10H25

FITTING, GREASE 5

21

6652943

COVER grease fitting

22

6533496

PIN

23

12H15

FITTING, GREASE 5

24

CYLINDER See Illustration ARM CYLINDER/ C3314 arm

25

6665374

CHAIN Lifting - Available thru BOBCAT Parts - Not Factory Installed

26

CYLINDER See Illustration BUCKET CYLINDER/ C3339 bucket
