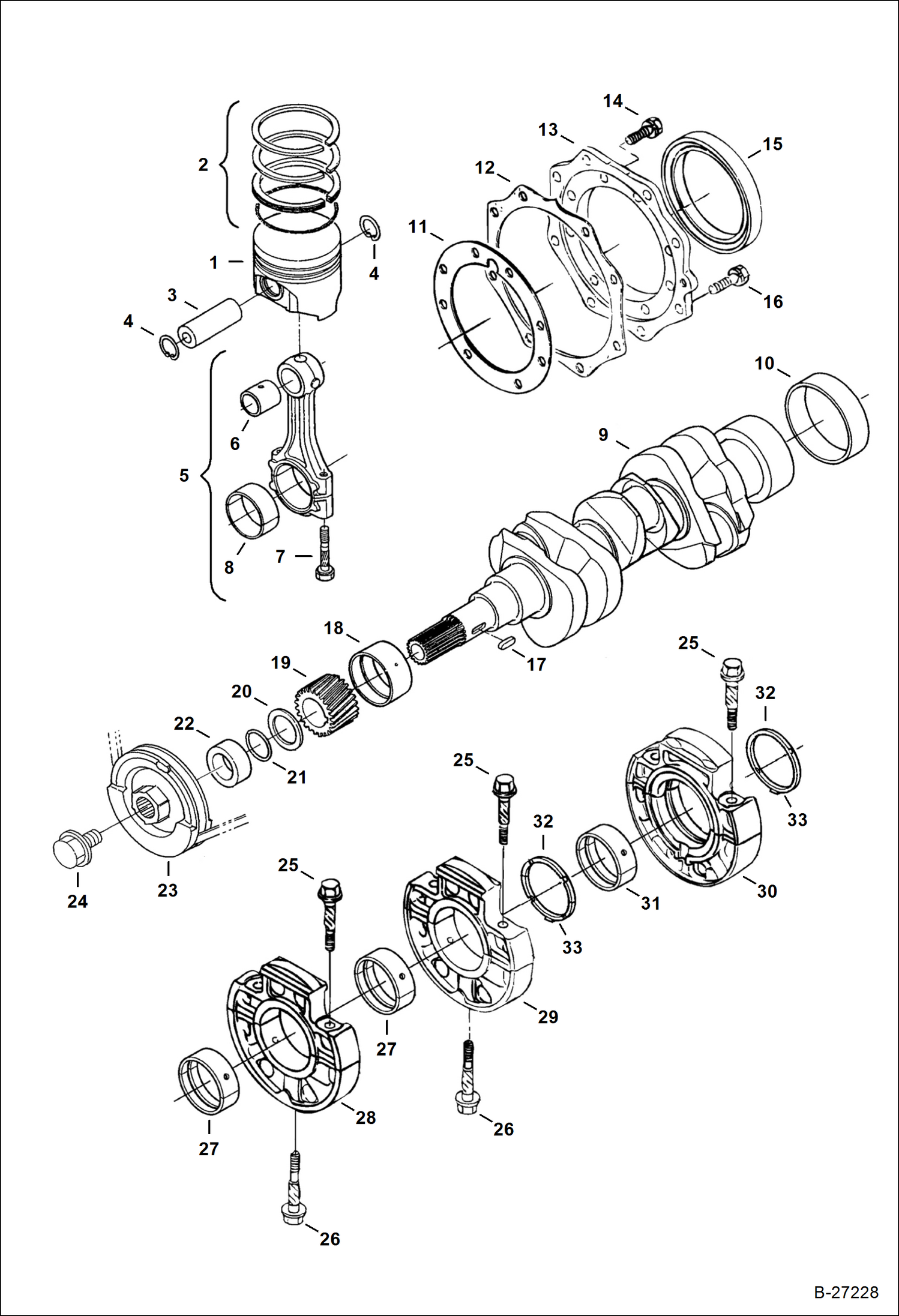

Запчасти Bobcat 320 PISTON & CRANKSHAFT (Kubota - D722-E3B-BC-5) (Tier IV Replacement) REPLACEMENT ENGINE

1

7000376

PISTON, ENG std. - piston only - (16851-2111) - Was 6670393

1

6670394

PISTON +0.25mm

2

6670395

RING ASSY piston - std - for 1 piston

2

6670396

RING ASSY piston (+0.25 mm) - for 1 piston

3

6670397

PIN

4

3974216

RING

5

6690166

ROD, CONNECTING W/Ref. 6-8

6

6670399

BUSHING

7

6670400

BOLT

8

6670401

BEARING rod - std

8

6670402

BEARING rod (+0.2 mm)

8

6670403

BEARING rod (+0.4 mm)

9

6670404

CRANKSHAFT W/Ref. 10

10

3986830

SLEEVE

11

6670377

GASKET bearing case

12

7000494

GASKET case cover - Was 6670379 - A

13

6670378

COVER, BEARING CASE

14

6653584

BOLT

15

3918818

SEAL

15

6687691

SEAL

16

4CM622

BOLT

17

3974226

KEY

18

6670406

BEARING main - std

18

6670407

BEARING main (-0.2 mm)

18

6670408

BEARING main (-0.4 mm)

19

6670405

GEAR

20

6670414

OIL SLINGER

21

6683014

SEAL

22

6670413

COLLAR

23

6670783

PULLEY

24

6670784

BOLT

25

6670376

BOLT bearing case

26

6670382

BOLT flange head

27

6670409

BEARING main - std

27

6670410

BEARING main (-0.2 mm)

27

6670411

BEARING main (-0.4 mm)

28

6693052

CASE, BEARING ASSY

29

6693205

CASE, BEARING ASSY

30

7000375

CASE, BEARING ASSY

31

7023260

BEARING, ENG CRANKSHAFT std - rear - (1) bearing - Was 6670412 - A

31

6660336

BEARING main (-0,2mm)

31

6660337

BEARING main (-0,4mm)

32

6652636

WASHER thrust - std. - 1/2 thrust washer

32

6513613

WASHER thrust (+0.2 mm) - 1/2 thrust washer

32

6513615

WASHER thrust (+0.4 mm) - 1/2 thrust washer

33

7000492

WASHER, THRUST SIDE Std - 1/2 thrust washer - Was 6652637 - A

33

6698149

WASHER, THRUST SIDE thrust - (+0.2 mm) 1/2 thrust washer - Was 6513614 - A

33

6513616

WASHER thrust (+0.4 mm) - 1/2 thrust washer
