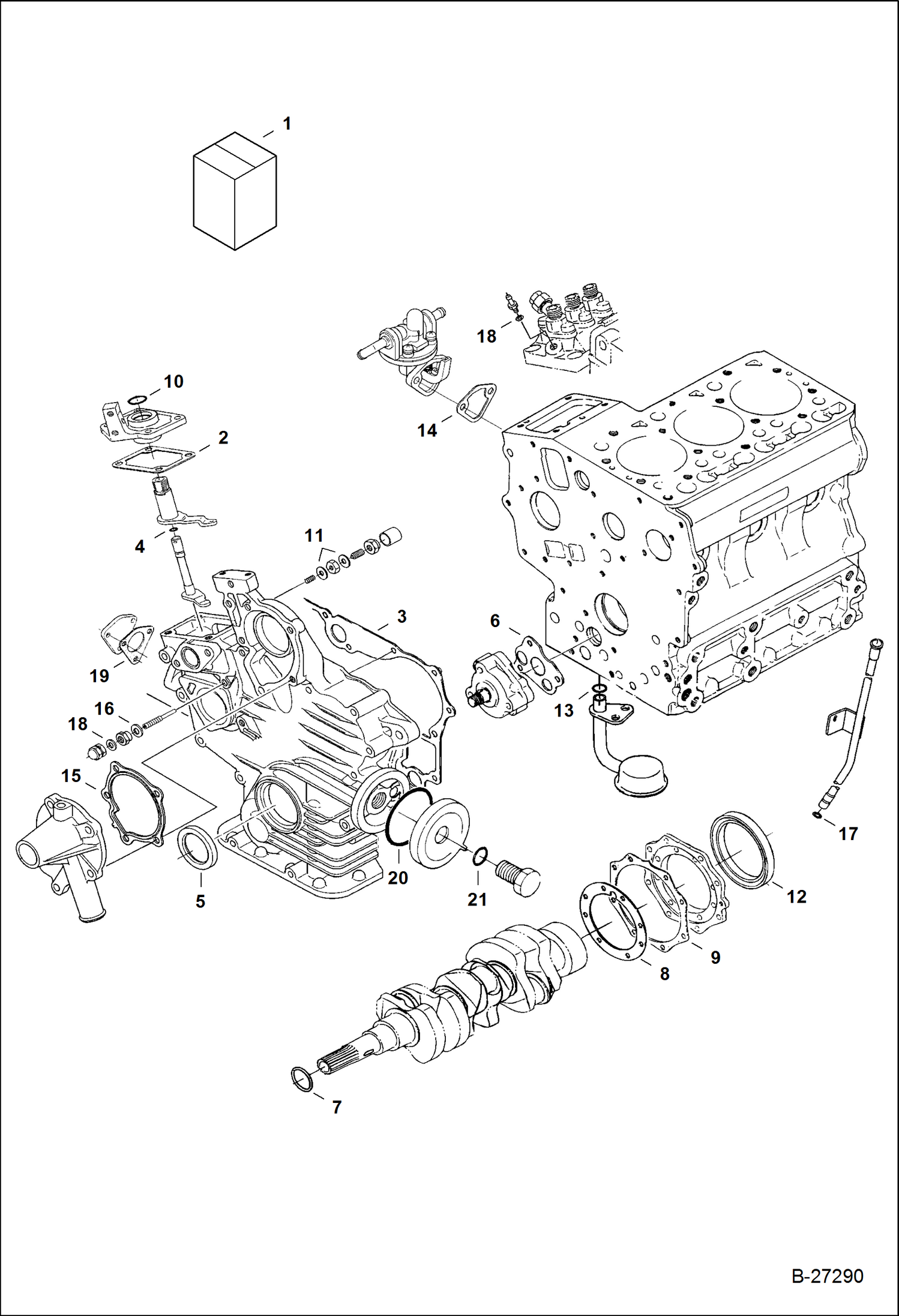

Запчасти Bobcat 320 LOWER GASKET KIT (Kubota - D722-E3B-BC-5) (Tier IV Replacement) REPLACEMENT ENGINE

1

7000446

KIT, GASKET ENG LOWER Ref. 3-21

2

6670457

GASKET See Illustration SPEED CONTROL & STOP LEVER/ B27057 speed control plate

3

7000382

GASKET, GEARCASE See Illustration GEARCASE/ B27075 - Was 7000394 - B,D

4

6683023

O-RING See Illustration SPEED CONTROL & STOP LEVER/ B27057 - speed control shaft

5

6670358

SEAL See Illustration GEARCASE/ B27075 - front crankshaft

6

6688079

GASKET See Illustration CRANKCASE/ B25118A - oil pump

7

6683014

SEAL See Illustration PISTON & CRANKSHAFT/ B27228 - crankshaft

8

6670377

GASKET See Illustration PISTON & CRANKSHAFT/ B27228 - bearing case

9

7000494

GASKET See Illustration CRANKCASE/ B25118A - rear cover - Was 6670379 - A

10

6683021

SEAL See Illustration SPEED CONTROL & STOP LEVER/ B27057 - stop lever

11

3974095

MET-GASK See Illustration SPEED CONTROL & STOP LEVER/ B27057 - idle assy

12

3918818

SEAL See Illustration PISTON & CRANKSHAFT/ B27228 - rear crankshaft

13

6680284

O-RING See Illustration OIL PAN/ B25126A - oil screen

14

6670782

GASKET See Illustration FUEL & INJECTION PUMP/ B27058 - fuel pump

15

7000377

GASKET, PUMP WATER See Illustration WATER PUMP/ B25119A - water pump

16

6687687

GASKET See Illustration SPEED CONTROL & STOP LEVER/ B27057

17

6673314

O-RING See Illustration OIL PAN/ B25126A - dipstick guide - not in kit

18

3974972

GASKET See Illustration FUEL & INJECTION PUMP/ B27058 See Illustration SPEED CONTROL & STOP LEVER/ B27057

19

6688076

GASKET See Illustration GEARCASE/ B27075 flange

20

6657422

O-RING See Illustration GEARCASE/ B27075 cover

21

6670769

O-RING See Illustration GEARCASE/ B27075 cover
