Запчасти Bobcat 320 GEARCASE (Kubota D722-E2B-BC-1) (S/N 224511001 & Abv) POWER UNIT

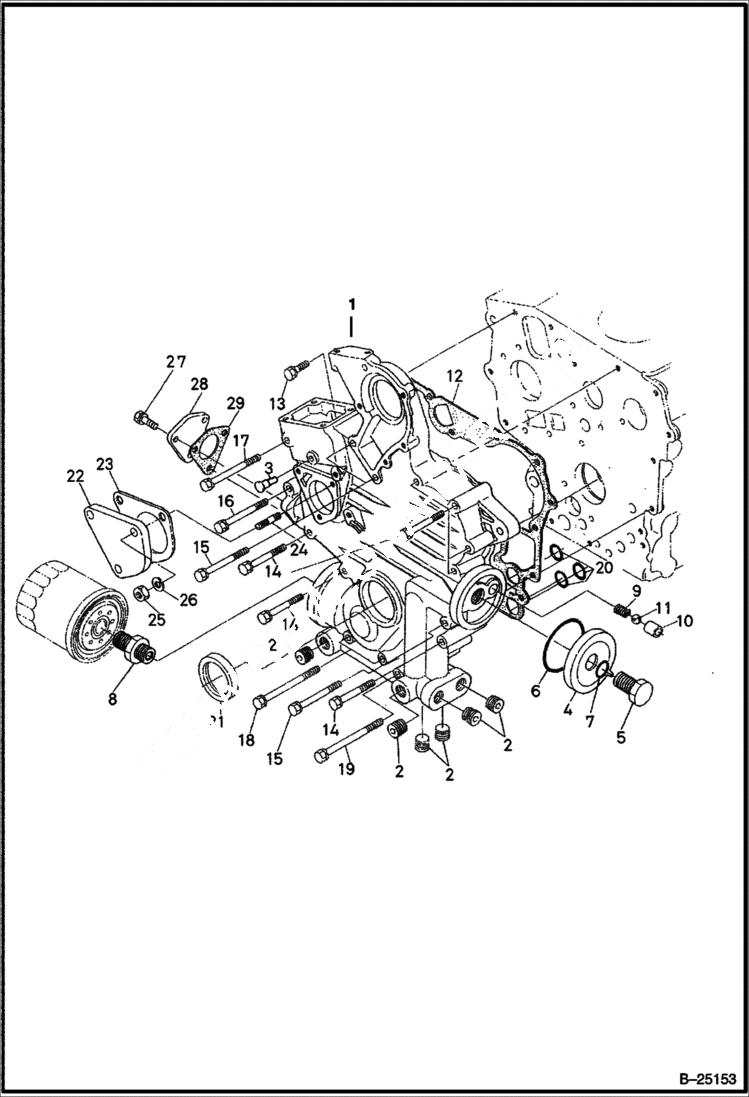

Схема запчастей Bobcat 320 - GEARCASE (Kubota D722-E2B-BC-1) (S/N 224511001 & Abv) POWER UNIT

Артикул

Название

Примечание

Количество

1

6688530

CASE

1

7018013

HOUSING, GEAR

2

6667425

PLUG

3

6670355

PIN

4

6677913

COVER

5

6688075

BOLT

6

6657422

O-RING

7

6670769

O-RING

8

6652597

ADAPTER Was 6680633 - A

9

6670359

SPRING

10

6670360

SEAT

11

6670361

BALL

12

6670356

GASKET

12

7017980

GASKET, GEARCASE

13

6652580

BOLT

14

6670770

BOLT

15

6670357

BOLT

16

6652593

BOLT

17

6670771

BOLT

18

6657414

BOLT

19

6670772

BOLT

20

6677915

SEAL

21

6670358

SEAL front crankshaft

22

6670362

COVER

23

6670363

GASKET

24

6652764

STUD Was 3974462B - A

25

1DM6

NUT

26

6667419

WASHER

27

6652580

BOLT

28

7000378

COVER, PLATE Was 6670773 - A

29

6688076

GASKET

Выбрано товаров: 31
