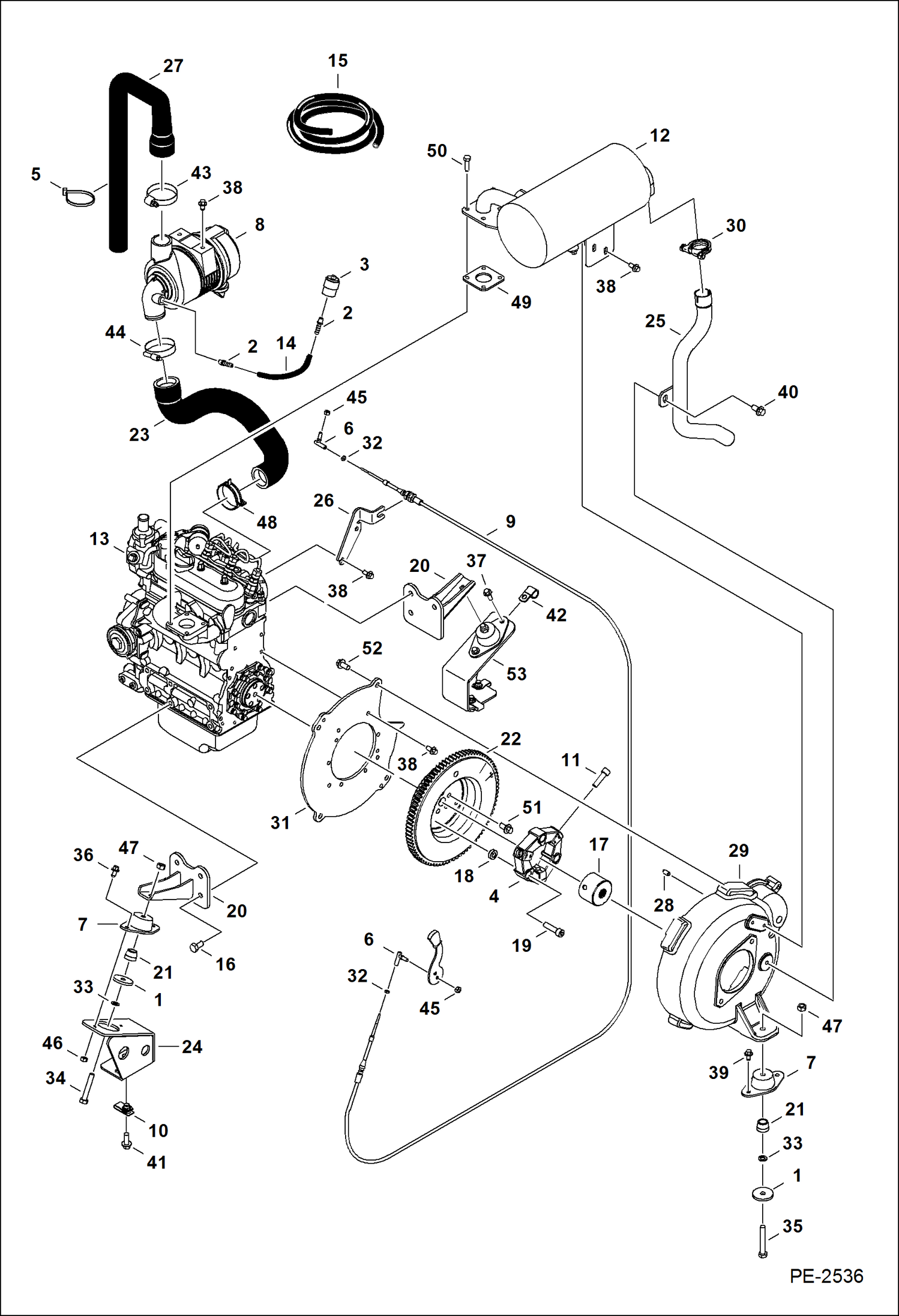

Запчасти Bobcat 320 ENGINE & ATTACHING PARTS (Air Cleaner, Muffler, Engine Mounts) POWER UNIT

1

872229

WASHER

2

6505813

CONNECTOR

3

6515007

GAUGE

4

6535210

COUPLER

5

6624289

STRAP, TIE

6

6644965

BALL JOINT

7

6653764

MOUNT

8

6675529

FILTER See Illustration AIR FILTER/ C3528 assy

9

6675668

CABLE, THROTTLE

10

6675722

NUT

11

6678768

BOLT

12

6685916

MUFFLER

13

ENGINE, V722-E2B-BC-5 See Illustration ENGINE & GASKET KITS/ B16486

14

HOSE NLA - Order 11'' (280mm) of Ref 15.

15

6557720

HOSE bulk - sold per foot

16

6733378

SCREW

17

6734042

HUB

18

6734043

SPACER

19

6734049

SCREW

20

6736967

MOUNT ENGINE

21

6804522

SPACER

22

6804875

FLYWHEEL for 6686064 engine

22

7152933

FLYWHEEL for 6692565 engine

23

6806886

HOSE

24

6807160

MOUNT

25

6807185

TUBE

26

6807744

BRACKET throttle

27

6808932

HOSE

28

7101341

PIN

29

7104073

MOUNT

30

7108173

CLAMP

31

7109401

PLATE

32

14D10

NUT

33

15EM100

WASHER

34

1CM1060

BOLT

35

1CM1070

BOLT

36

26GM8016

SCREW

37

26GM8020

SCREW

38

29CM816

SCREW

39

29CM820

SCREW

40

29CM1020

BOLT

40

29CM1016

BOLT

41

29CM1025

BOLT

42

30H38

CLIP

43

42H32

HS CLAMP5

44

42HC250

CLAMP

45

8D4

NUT

46

51DM8

NUT

47

53DM10

NUT

48

5HM53

CLAMP

49

6575580

GASKET muffler

50

4CM822

BOLT

51

6678065

BOLT flywheel

52

7144820

SCREW

53

MOUNT ASSY NSS - Order Ref. 1, 7, 10, 21, 24, 33, 34, 36, 37, 41, 46, & 47
