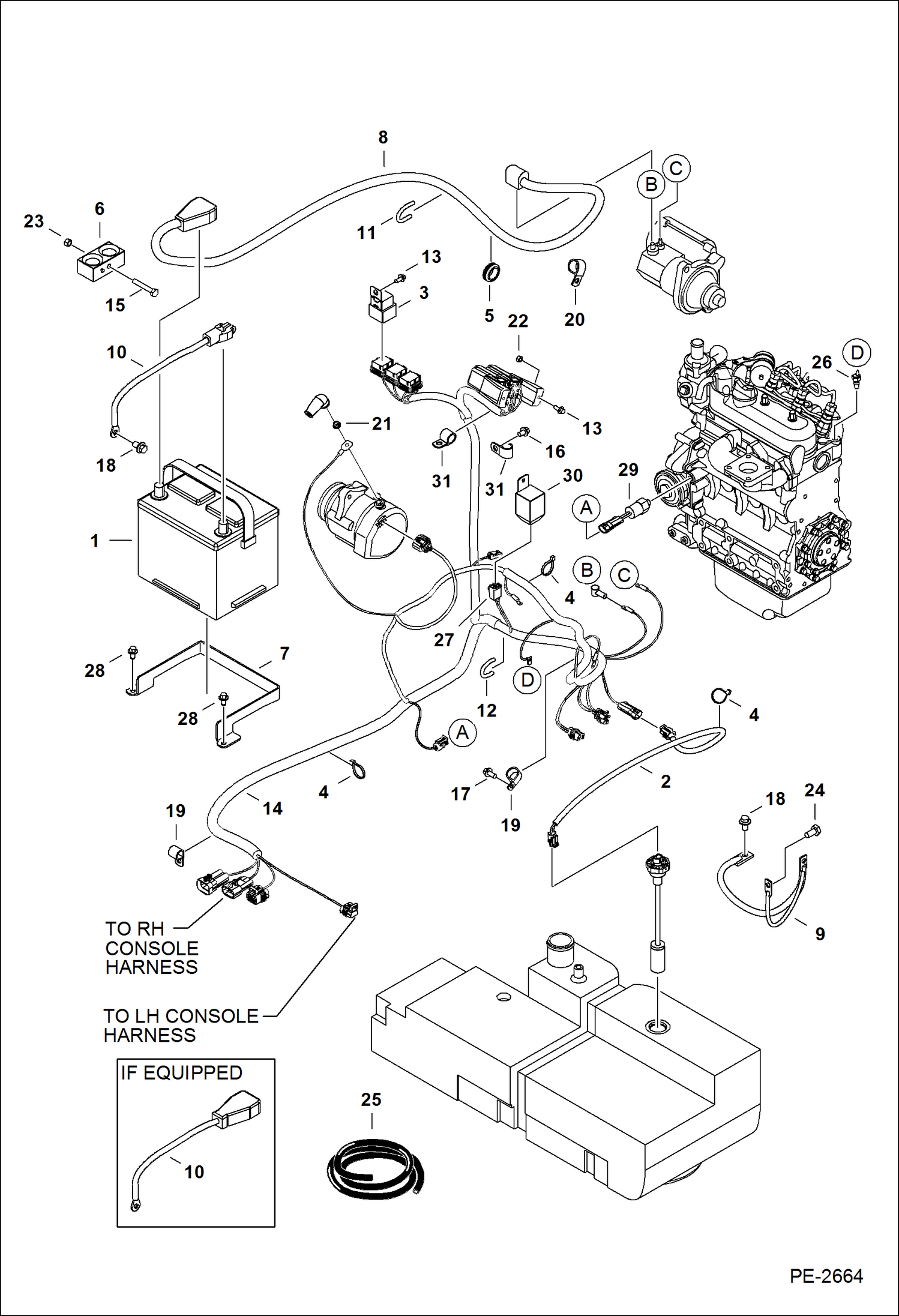

Запчасти Bobcat 320 ELECTRICAL (Engine) ELECTRICAL SYSTEM

1

6669600

BATTERY

2

6587177

HARNESS fuel sender

3

6670312

SWITCH, MAGNETIC relay

4

6610510

TIE

5

6676508

GROMMET

6

6715197

CLAMP

7

6806991

BRACKET

8

6807430

CABLE positive

9

6807489

CABLE (BATTERY) negative

10

6807431

CABLE negative

11

TUBE NLA - 4.5''(115mm) long - Order Ref 25

12

TUBE NLA - 3.5''(89mm) long - Order Ref 25

13

6810157

BOLT

14

7108914

HARNESS

14

6707620

FUSE, 10A MINI 5

14

6707621

FUSE, 15A MINI 5

14

6707622

FUSE, 20A MINI 5

15

1CM850

BOLT

16

29CM812

BOLT

17

29CM816

SCREW

18

29CM1016

BOLT

19

30H46

CLIP

20

30H55

CLIP

21

43DM6

NUT

22

1DM6

NUT Was 4DM6 - A

23

53DM8

NUT

24

5CM1020

SCREW

25

6578657

TUBE bulk - sold per foot

26

6671584

SENDER eng. temp. - spade connector

27

6567537

DIODE

27

3675725

DIODE

28

26GM8016

SCREW

29

6676053

SWITCH pressure

30

6670872

TIMER fuel shut off

31

30H38

CLIP
