VALVE SECTION (Boom Offset) (320L/323J)

Запчасти Bobcat 320 VALVE SECTION (Boom Offset) (320L/323J) HYDRAULIC SYSTEM

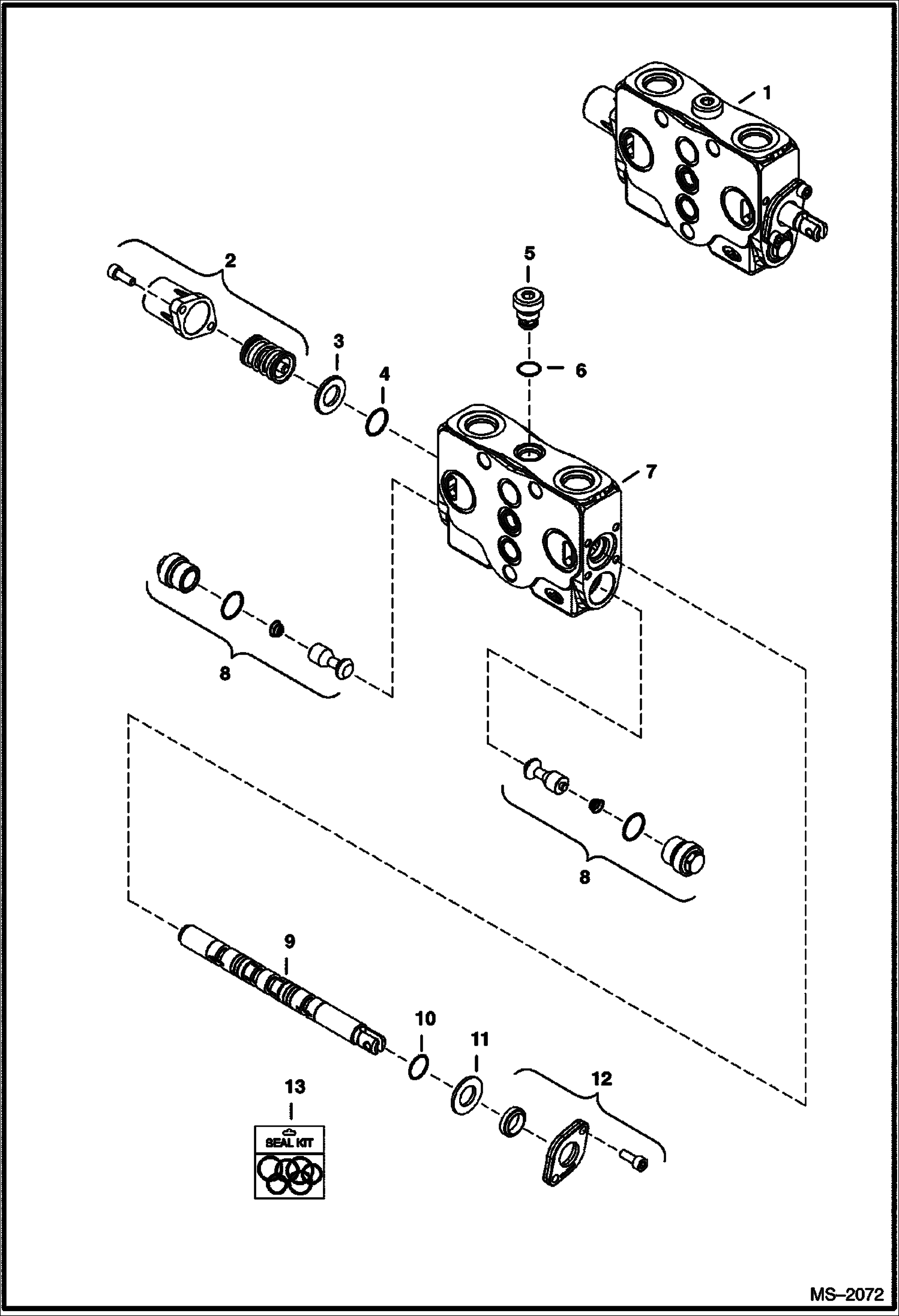

Схема запчастей Bobcat 320 - VALVE SECTION (Boom Offset) (320L/323J) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6688419

VALVE boom offset - 320L, 323J

2

6680068

KIT

3

SEAL NSS - Order Ref. 13

4

O-RING NSS - Order Ref. 13

5

6680092

VALVE, LOCK LOAD

6

O-RING NSS - Order Ref. 13

7

BLOCK NSS - Order Ref. 1

8

6680247

VALVE

9

SPOOL NSS - Order Ref. 1

10

O-RING NSS - Order Ref. 13

11

SEAL NSS - Order Ref. 13

12

6680097

KIT cover

13

6680124

SEAL KIT
