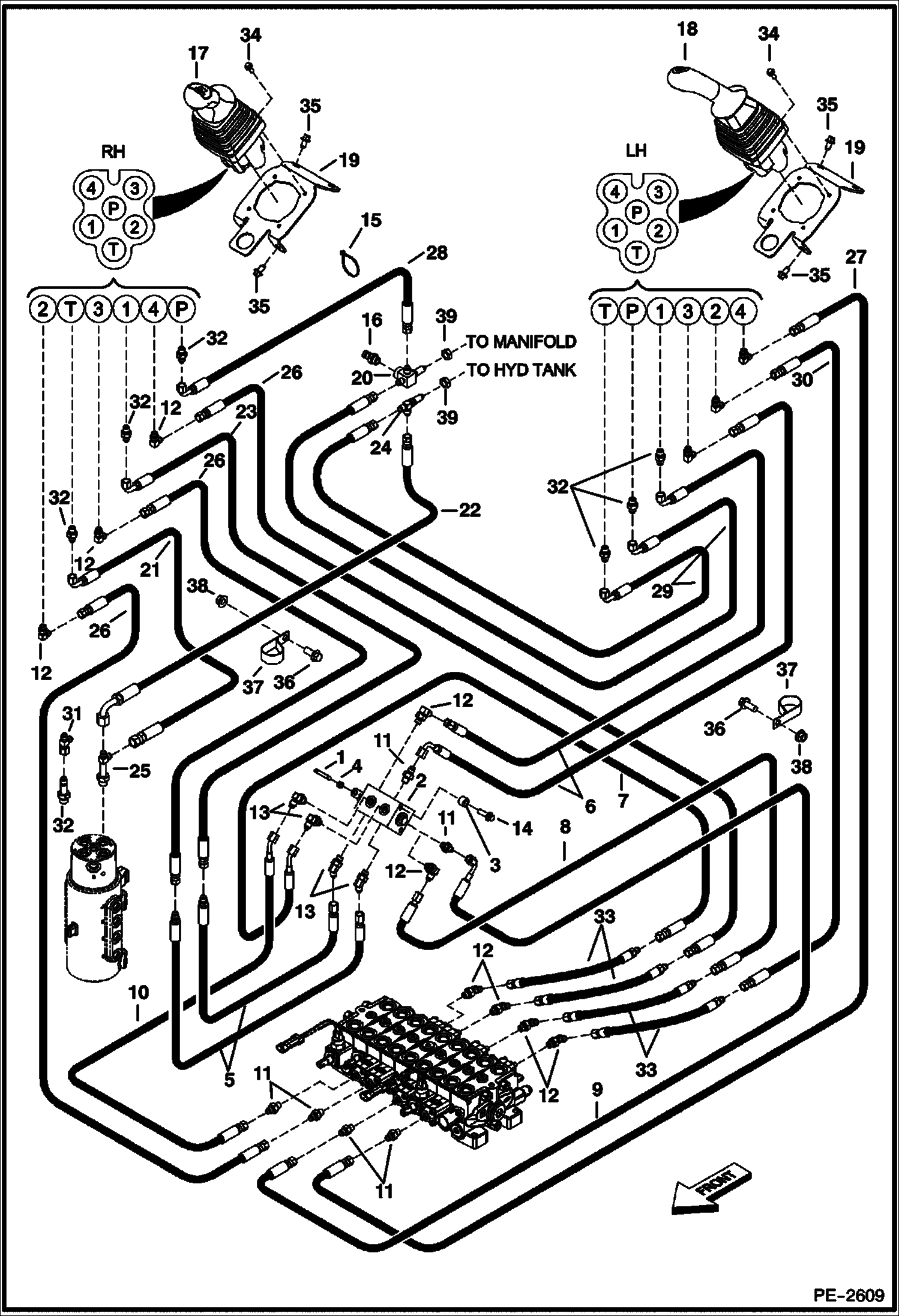

Запчасти Bobcat 320 HYDRAULIC CIRCUITRY (Pilot) (ISO/STD) (320J/323J) HYDRAULIC SYSTEM

1

6597403

HANDLE

2

6805768

VALVE

3

6807444

SPACER

4

53DM6

NUT Was 1DM6 - A

5

7106602

HOSE

6

7106603

HOSE

7

7106604

HOSE

8

7106605

HOSE

9

7106606

HOSE

10

7106607

HOSE

11

15KB0404

FTG HYD S Connector

11

79K4

O RING 10

12

17KB0404

FTG HYD ELBOW 90

12

79K4

O RING 10

13

18KB0404

FTG HYD ELBOW 45

13

18KB0404

FTG HYD ELBOW 45

14

29CM825

BOLT

15

6624289

STRAP, TIE

16

6630168

COUPLER

17

6677893

JOYSTICK See Illustration RH JOYSTICK CONTROLS/ MS1353

18

6677894

JOYSTICK See Illustration LH JOYSTICK CONTROLS/ MS1354

19

6810924

MOUNT

19

6810924

MOUNT

20

6814191

TEE

21

7106587

HOSE

22

7106588

HOSE

23

7106594

HOSE

24

91K3

TEE

25

7126024

TEE

26

7106597

HOSE

27

7106598

HOSE

28

7106599

HOSE

29

7106600

HOSE

30

7107648

HOSE

31

13K3

TEE

32

ADAPTER NLA - Order Ref. 41 - Was 16KB406 - A

32

79K6

O RING 10

33

7106602

HOSE

34

26GM6020

SCREW

35

26GM8016

SCREW

36

29CM1025

BOLT

37

30HJ624

CLAMP

38

43DM10

NUT

39

86F3

LOCKNUT
