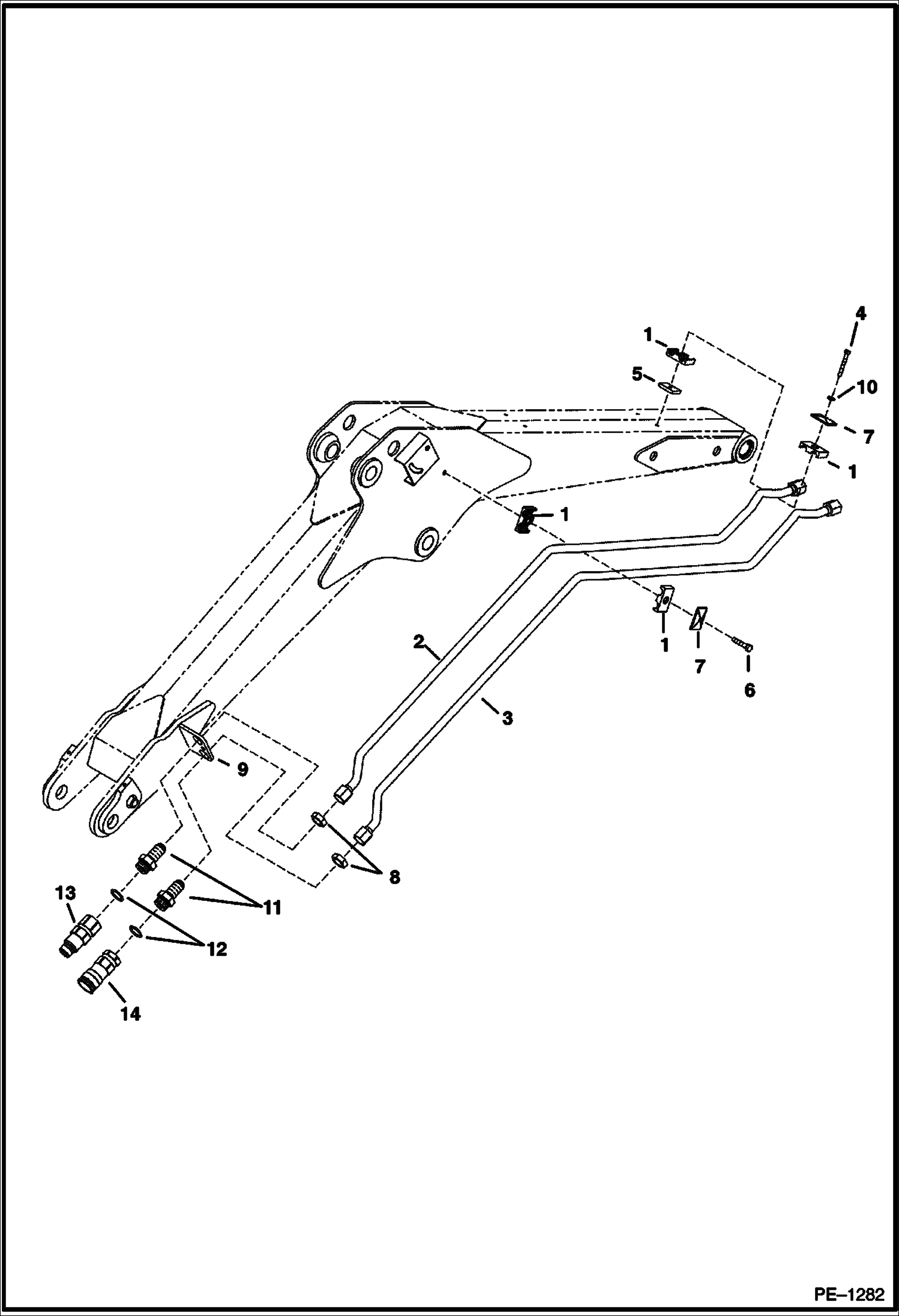

Запчасти Bobcat 320 HYDRAULIC CIRCUITRY (Auxiliary) HYDRAULIC SYSTEM

1

CLAMP NLA for 323J - Order 6577697 clamp - Was 6701893 - B

1

6577697

CLAMP for use on 320J & 323J

2

6803507

TUBE

2

7115960

TUBE

3

6803508

TUBE

3

7115961

TUBE

4

1CM650

SCREW

5

6589130

COVER Clamp

6

1CM840

BOLT

7

6652521

PLATE Clamp

8

86F7

LOCK NUT for bulk head fittings

9

6803509

PLATE welded on the boom

10

15EM80

WASHER

11

6812816

ADAPTER Bulkhead - W/Ref. 12

12

79K12

O RING 10

13

6674688

COUPLER, FF MALE straight - Was 6667808 - A

13

6679841

SEAL Was 6672026 - A

14

6672960

COUPLER, FF FEMALE straight
