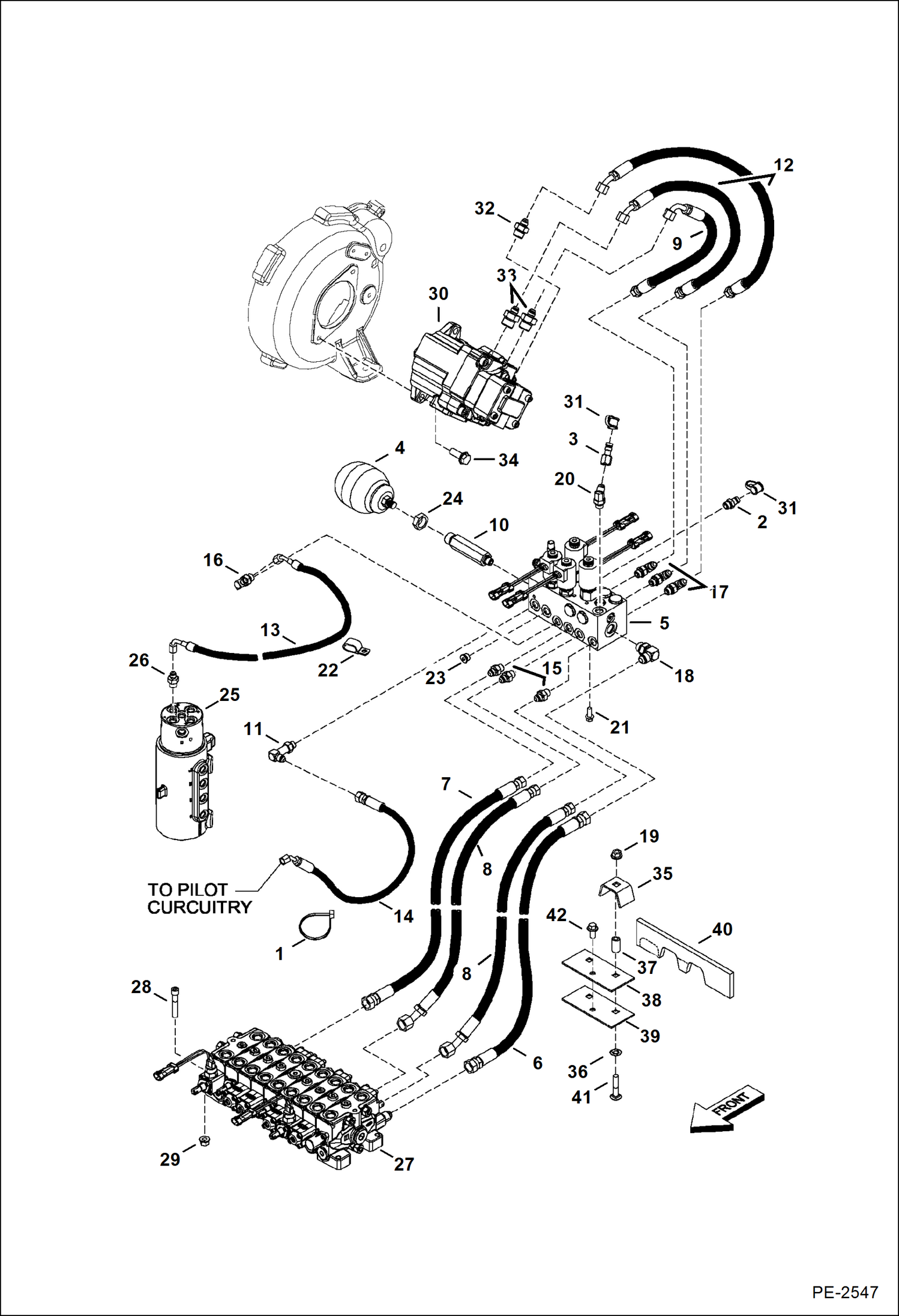

Запчасти Bobcat 320 HYDRAULIC CIRCUITRY (Manifold) (323J) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6630168

COUPLER

3

6661753

PLUG

4

6685832

ACCUMULATOR

5

6686330

MANIFOLD See Illustration HYDRAULIC CIRCUITRY/ PE2545

6

6806778

HOSE

7

6809854

HOSE

8

6809855

HOSE

9

6811876

HOSE

10

6812814

FITTING

11

6812815

FITTING

12

7105889

HOSE

13

7105891

HOSE

14

7105892

HOSE

15

15KB0606

FITTING, HYD CONNECTOR

16

17KB0406

FITTING, HYD ELBOW

17

17KB0606

FITTING

18

17KB0808

FITTING, HYD ELBOW

19

43DM10

NUT

20

18KB0606

FITTING, HYD ELBOW

21

29CM820

SCREW

22

31H38

CLAMP Was 31H000027B - B

23

47K5

PLUG

24

86F7

LOCK NUT

25

7102237

SWIVEL See Illustration SWIVEL JOINT/ MS2041

26

15KB0406

FTG HYD S CONNECTOR

27

6686157

VALVE See Illustration CONTROL VALVE/ MS2069 control

28

3GM840

SCREW

29

51DM8

NUT

30

6686159

PUMP See Illustration HYDRAULIC CIRCUITRY/ PE2545

31

6630367

CAP

32

15KB0608

FITTING, HYD CONNECTOR

33

15KB0610

FITTING, HYD CONNECTOR

34

29CM1230

BOLT W/flange

34

55CM1235

BOLT W/O flange - Use W/ 15EM120 washer

34

15EM120

WASHER Use W/ 55CM1235 bolt

35

6597380

CLAMP

36

6674264

RETAINER NUT

37

6805602

SPACER

38

6807628

PLATE

39

6813924

INSULATION

40

7104967

INSULATION

41

28CM1050

BOLT

42

29CM1020

BOLT
