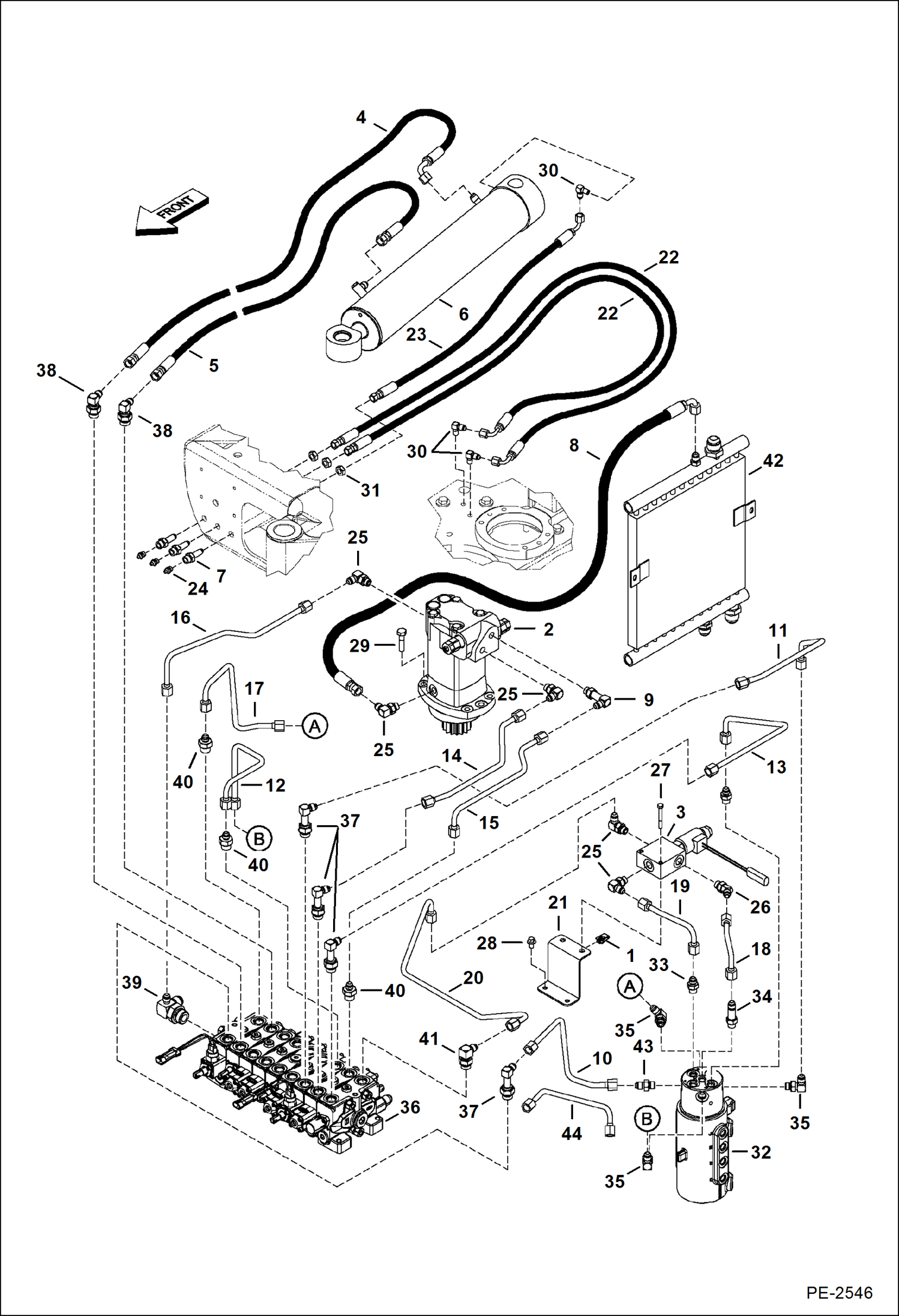

Запчасти Bobcat 320 HYDRAULIC CIRCUITRY (Swing) (W/Track Expansion) HYDRAULIC SYSTEM

1

6676026

NUT

2

6686218

MOTOR See Illustration SLEW MOTOR/ PE2616 - slew

3

6686508

BLOCK See Illustration BLOCK VALVE/ MS1468

4

6806782

HOSE

5

6806783

HOSE

6

6810486

CYLINDER See Illustration SWING CYLINDER/ PE2528

7

6807184

FITTING

8

6807939

HOSE

9

6812815

FITTING

9

79K6

O RING 10

10

7149482

TUBELINE

11

7103630

TUBELINE

12

7103631

TUBELINE

13

7113116

TUBELINE

14

7104155

TUBELINE

15

7104156

TUBELINE

16

7104157

TUBELINE

17

7149481

TUBELINE Was 7104158 - A

18

7113117

TUBELINE

19

7106186

TUBELINE

20

7106187

TUBELINE

21

7106225

BRACKET

22

7106608

HOSE

23

7106609

HOSE

24

10H25

FITTING, GREASE 5

25

17KB0606

FITTING

26

18KB0606

FITTING, HYD ELBOW

27

1CM650

SCREW

28

29CM812

BOLT

29

53CM1040

SCREW

30

53CM1040

SCREW

31

86F3

LOCKNUT

32

7102237

SWIVEL See Illustration SWIVEL JOINT/ MS2041

33

15KB0606

FITTING, HYD CONNECTOR

34

16KB0606

FTG HYD L CONNECTOR

35

17KB0606

FITTING

36

6686157

VALVE See Illustration CONTROL VALVE/ MS2069 - control

37

6812817

ELBOW

37

79K8

O RING 10

38

6812818

ELBOW

38

79K8

O RING 10

39

6812819

FITTING

39

79K12

O RING 10

40

15KB0608

FITTING, HYD CONNECTOR

40

79K8

O RING 10

41

17KB0608

FITTING, HYD ELBOW

41

79K8

O RING 10

42

6675291

COOLER

43

17KB0606

FITTING elbow - Use W/Ref. 44 - not shown

43

15KB0606

FITTING, HYD CONNECTOR straight - Use W/Ref. 10

43

79K6

O RING 10

44

TUBELINE NLA - Order Ref. 10 & 15KB0606 straight adapter to replace the existing attaching elbow on the swivel joint - Was 7103628
