SWING FRAME

Запчасти Bobcat 320 SWING FRAME WORK EQUIPMENT

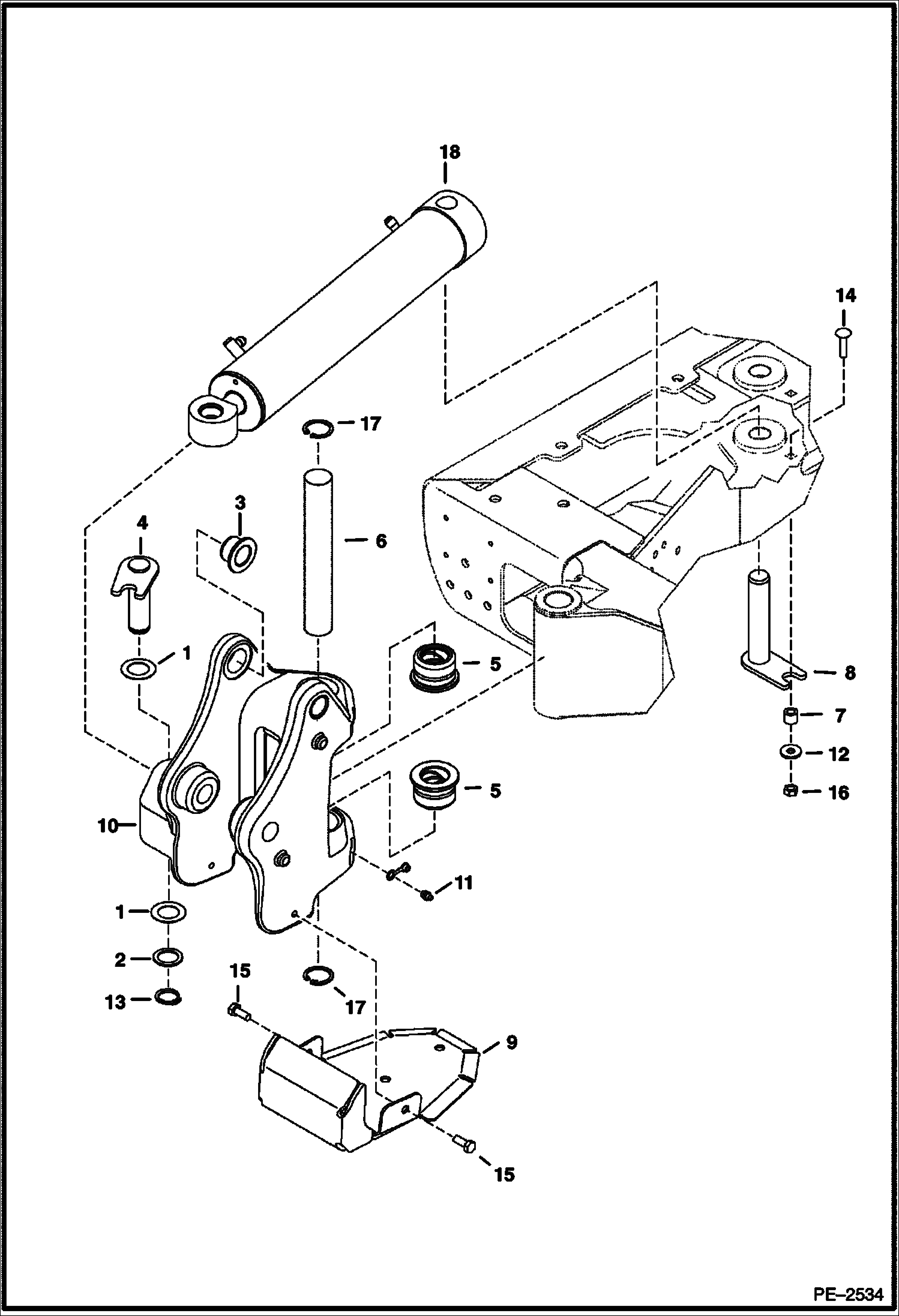

Схема запчастей Bobcat 320 - SWING FRAME WORK EQUIPMENT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6533856

SHIM

2

6589699

WASHER

3

6677918

BUSHING

4

6805807

PIN

5

6805808

BUSHING

6

6805809

PIN

7

6806901

SPACER

8

6806903

PIN

9

6810541

BRACKET

10

6810606

SWING FRAME

11

10H25

FITTING, GREASE 5

12

17EM100

WASHER

13

22J19

SNAP RING

14

28CM1040

BOLT

15

7140538

SCREW Was 53CM1025 - B

16

53DM10

NUT

17

8JM40

SNAP RING

18

CYLINDER See Illustration SWING CYLINDER/ PE2528
