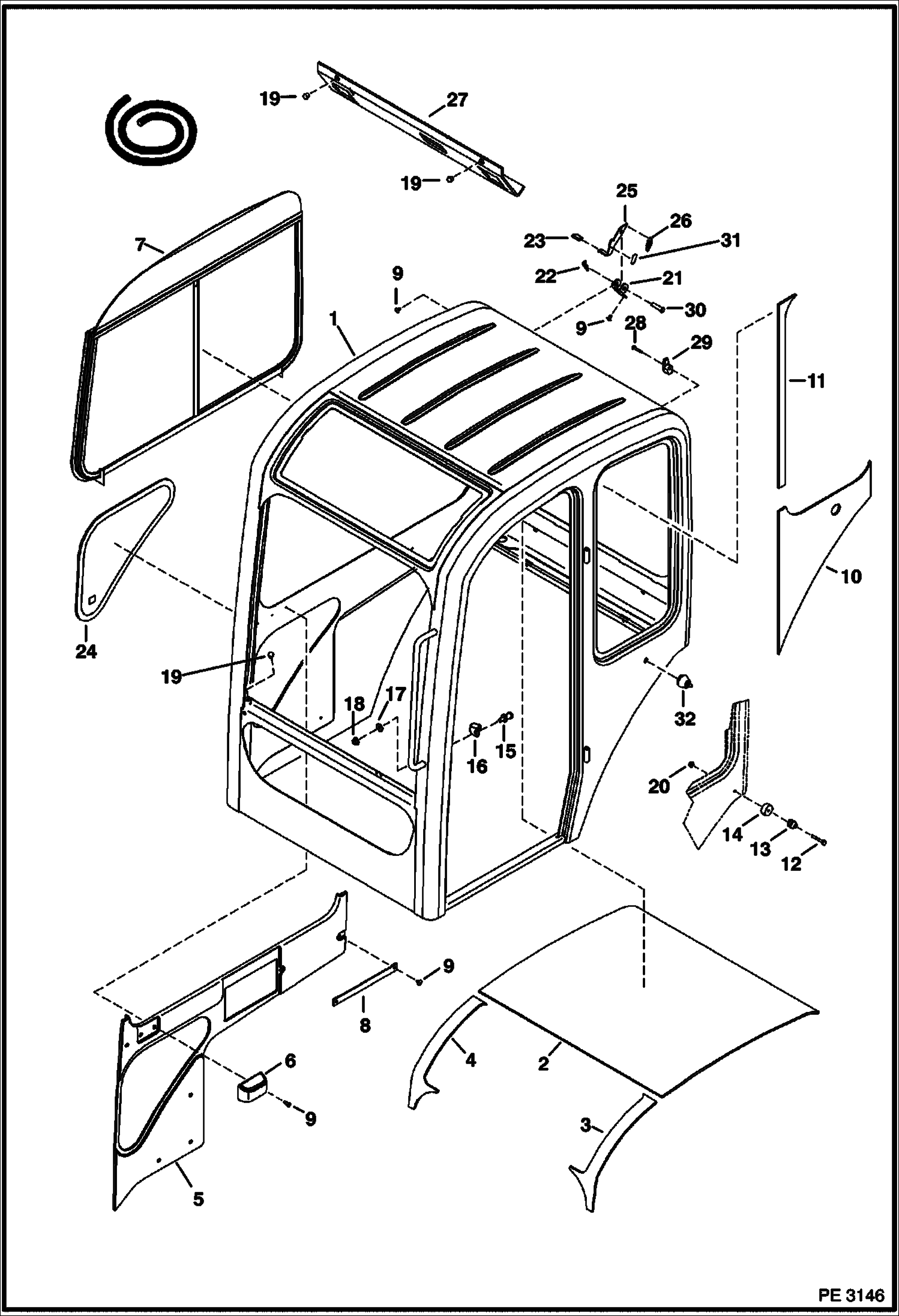

Запчасти Bobcat 320 OPERATOR CAB (RH Window & Insulation) MAIN FRAME

1

CAB NLA - Was 7109077 - A

1

7222242

KIT, CAB W/decals & instructions - Was 7103483 - A

1

6990466

INSTRUCTIONS

2

6816185

INSULATION roof

3

6818362

INSULATION L.H. - front

4

6818275

INSULATION RH - front

5

7101010

INSULATION right

6

6664075

ASH TRAY

7

WINDOW R.H.

8

6589347

STRAP elastic

9

6589675

SCREW

10

7117115

INSULATION SIDE side - Was 6816187 - A

11

6816189

INSULATION

12

17C428

BOLT

13

6675385

PLUG hold open

14

6808446

SPACER

15

6654170

STRIKER BOLT

15

6689007

STRIKER BOLT

16

6664083

COVER

16

6688999

STRIKER GUARD cover

17

27E6

WASHER 5

18

55D7

NUT

19

6597572

BUMPER

20

55D4

NUT

21

6814724

LATCH

22

1306637

CLIP lock - Was 59D000005B - B

23

6677500

HANDLE lever

24

6811792

WINDOW RH - Use 6808882 adhesive, 7102268 primer, & 7110861 cleaner

25

6814721

HANDLE latch

26

6714210

SPRING

27

7108627

INSULATION rear

28

6808424

SCREW

29

6658289

HOOK coat

30

1303190

PIN, CLEVIS Was 38C000620B - B

31

6815985

DECAL latch

32

6689001

STRIKER hold open
