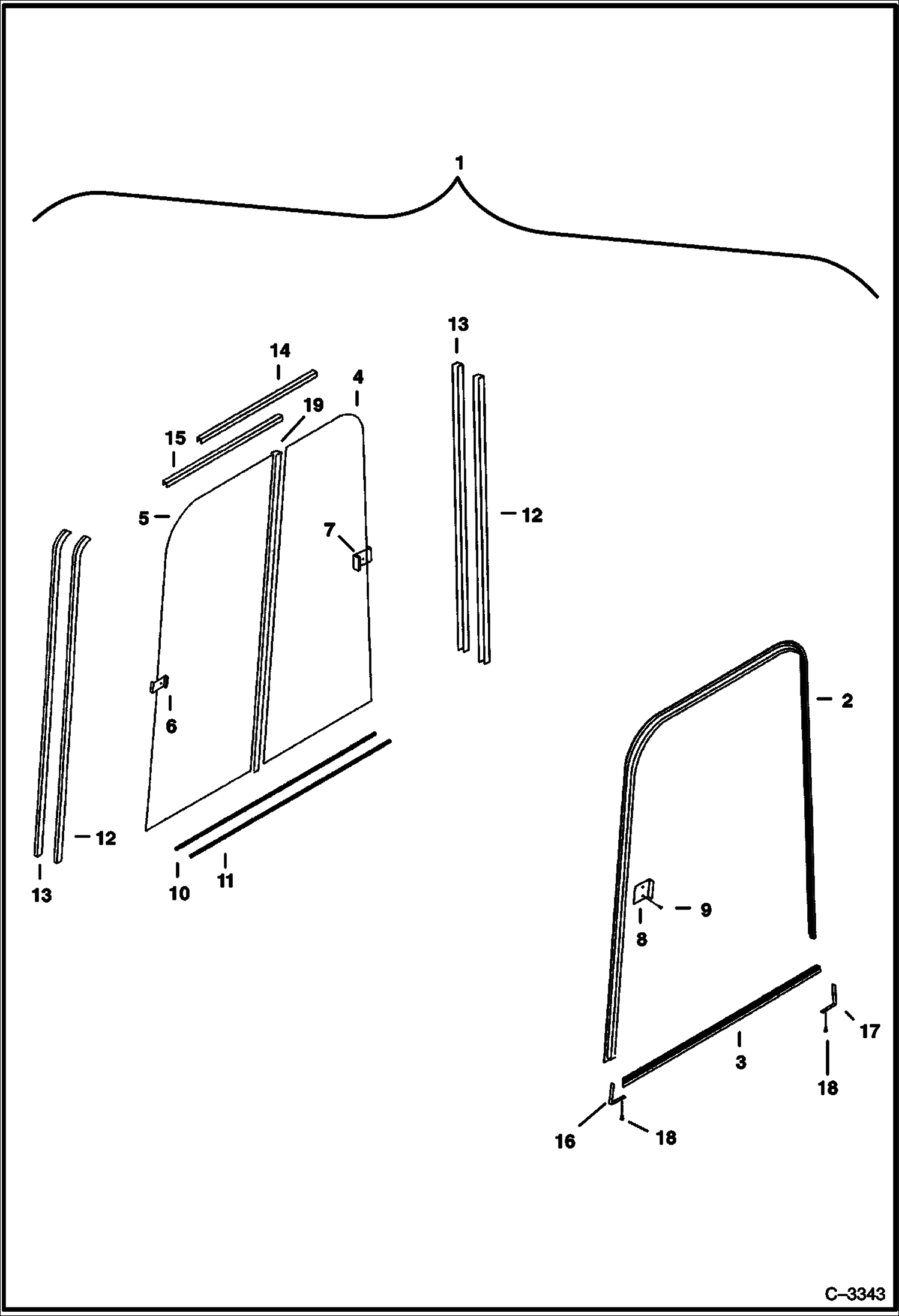

Запчасти Bobcat 320 OPERATOR CAB (RH Window) (2 Piece Glass) MAIN FRAME

1

WINDOW ASSY. NLA - Sliding - W/Refs. 2-18 - Order 6667616 - Was 6664173 - A

2

6664865

FRAME Top

3

6664866

FRAME Bottom

4

6664863

GLASS Rear Side

5

6664864

GLASS Front side - W/Ref. 6

6

6665026

LATCH ASSY Front - Incl. Mtg. Hardware

7

6665027

LATCH Rear - Incl. Mtg. Hardware

8

RETAINER NLA - latch - Was 6664862 - A

9

SCREW NLA - Was 6664875 - A

10

6664872

CHANNEL Front Inner

11

6664868

CHANNEL Window Stop

12

6664867

CHANNEL Rear Inner

13

6664871

CHANNEL Rear Outer

14

6664869

CHANNEL Top Outer

15

6664870

CHANNEL Top Inner

16

6664860

BRACKET Front Corner

17

6664861

BRACKET Rear Corner

18

6664876

SCREW

19

SUPPORT NLA - Window - Was 6665914 - A
