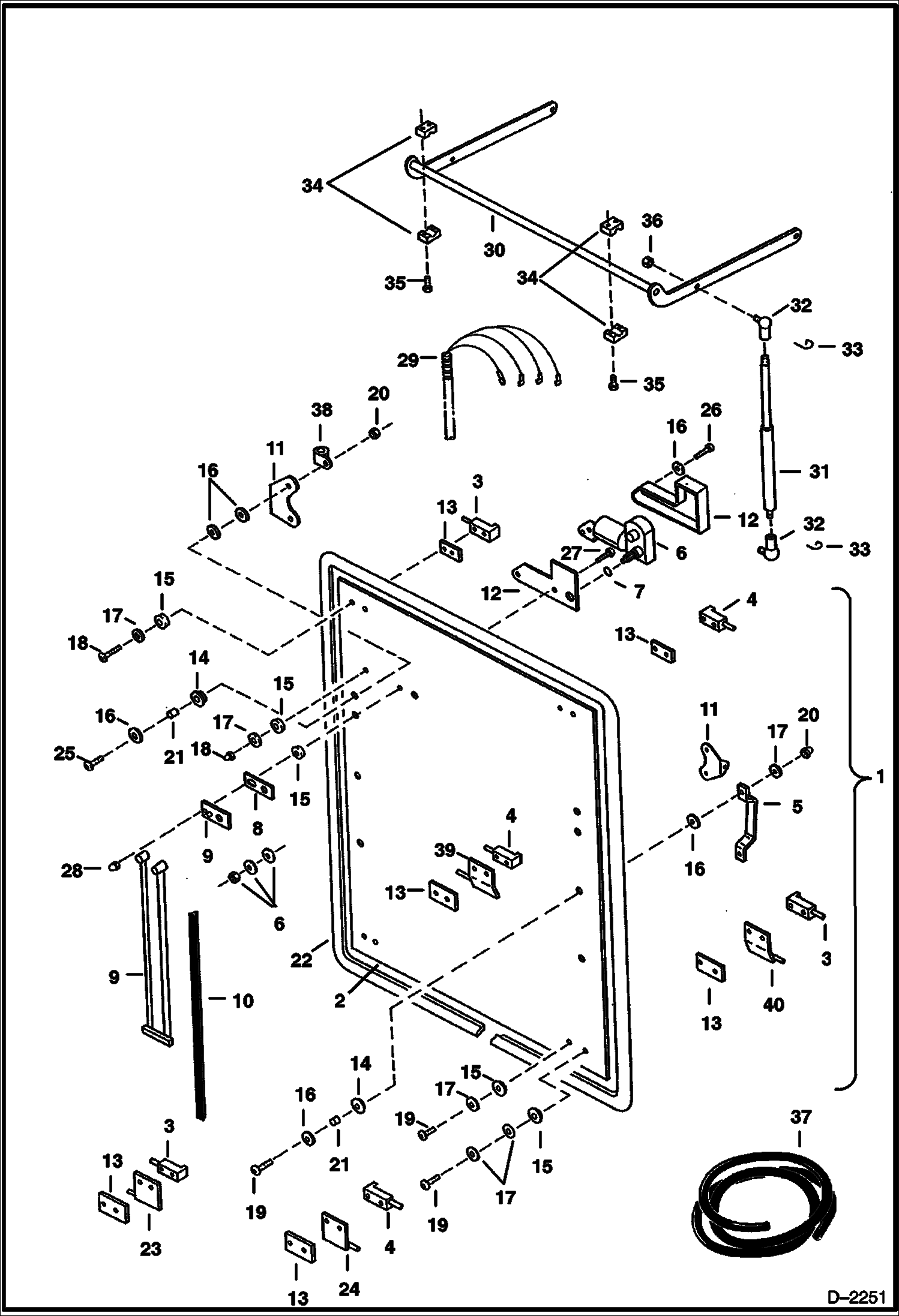

Запчасти Bobcat 320 OPERATOR CAB (Front Window) (S/N 511720001-511722538) MAIN FRAME

1

WINDOW See BTIE-042 NLA - Assy. Front - W/Ref. 2-29 - Order 6667155 - Was 6664152 - A

2

GLASS See Illustration OPERATOR CAB/ B17981 See BTIE-042 NLA - front - Order 6667155 - Was 6664174 - A

3

6664158

LATCH Window

4

6664157

LATCH Window

5

6664109

HANDLE Front Window

6

6664094

WIPER MOTOR 2 Speed

6

6668137

MOTOR, WIPER single speed

7

25K30020

O-RING 10 Wiper Motor Shaft - Was 6664098 - A

8

6664178

GASKET

9

6664095

ARM, WIPER W/pivot mount

10

6664096

BLADE, WIPER WINDOW

11

6664151

HINGE Front Window

12

6664177

COVER Wiper - Motor

13

SPACER NLA - Latch - Plastic - 1/4'' (8mm) thick - Early style - Was 6664159 - A

13

6668119

SPACER Latch - Rubber - 1/8'' (4 mm) thick - Early Style

14

6800788

GROMMET .813 Mounting Hole - Was 6664087 - A

15

6664089

GROMMET .406 Mounting Hole - A

16

6664090

WASHER 1'' (25mm) OD

17

6664065

WASHER 11/16'' O.D.

18

6664064

BOLT 7/8'' long - /4'' (8mm) Thick Spacer - Ref. 13

18

6668410

BOLT 3/4'' Long -/8'' (4mm) Thick Spacer - Ref. 13

19

6664068

BOLT 1 1/4'' long

20

7031515

NUT Acorn 1/4'' - Was 6664056 - A

21

6664086

SPACER

22

SEAL NLA - Order Ref. 37 - 136'' (3455 mm) long

23

6664153

GUIDE PIN R.H. - Straight Body - Early Style

24

6664154

GUIDE PIN L.H. - Straight Body - Early Style

25

25G416

BOLT 1'' (25.4mm) long - Was 6664067 - A

26

6664565

BOLT 7/8'' long

27

6664566

BOLT 3/4'' long

28

6664103

NUT Acorn #10

29

6669142

HARNESS Wiper Motor - Single speed

29

HARNESS NLA - Wiper Motor - Two Speed

29

6669141

HARNESS Cab - Was 6628903 - A

30

6803154

LINKAGE Window Pivot - Was 6664148 - A

31

6664074

CYLINDER Gas Spring - When 2 Gas Springs are used

31

6667348

CYLINDER Gas Spring - with single gas spring - R.H. side only

32

6664073

CLIP Ball Joint Retainer

33

6649244

BALL STUD Cylinder - Was 6664072 - A

34

6664560

BLOCK Linkage Mount

35

6664059

BOLT

36

6648364

NUT

37

6664088

SEAL Bulk - Order Per Foot

38

30H21

CLAMP 10 Wire Harness - Was 30H000018B - A

39

6628879

GUIDE PIN RH - Bent Body - Later Style - Was 6667190 - A

40

6628880

GUIDE PIN LH - Bent Body - Later Style - Was 6667191 - A
