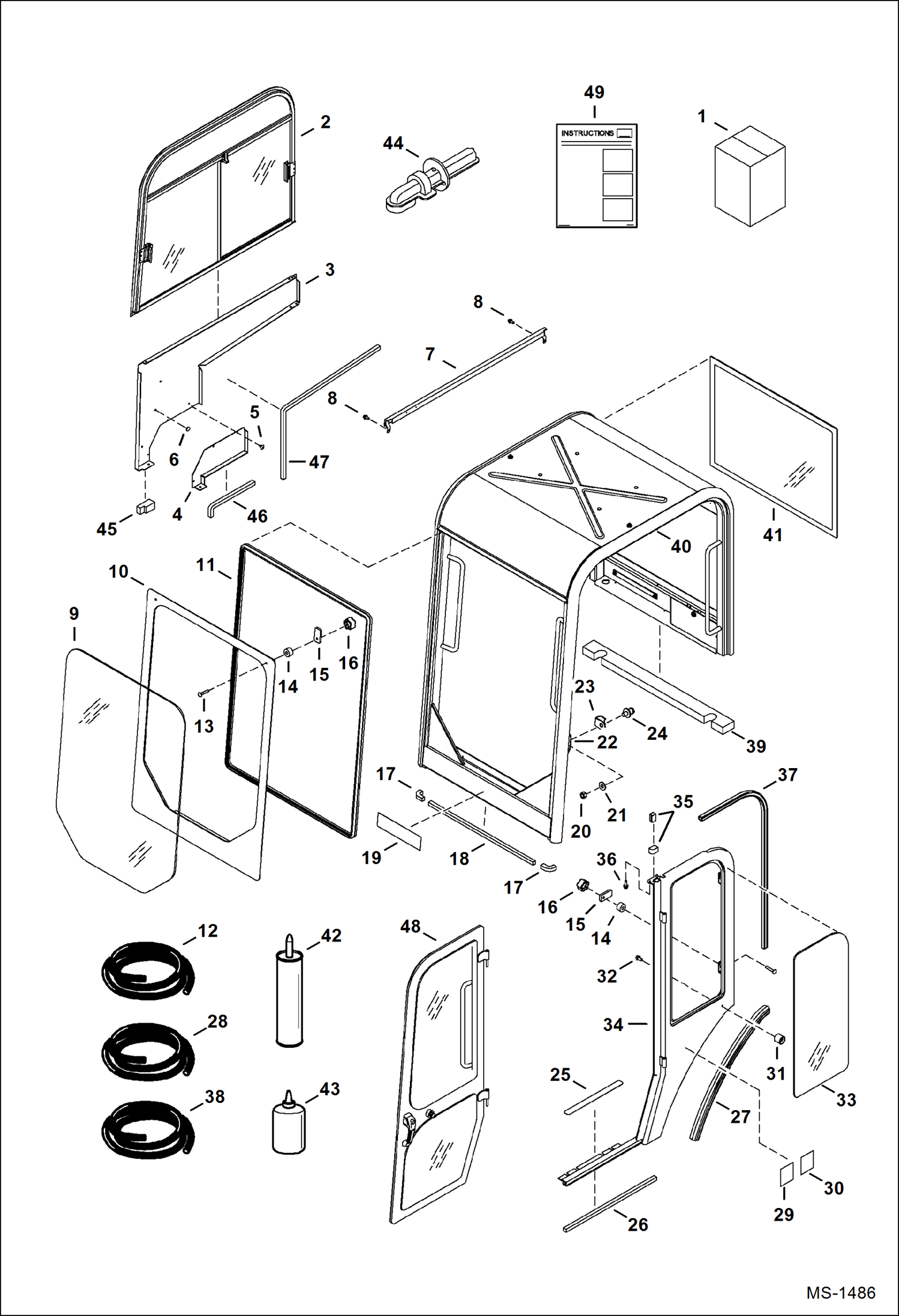

Запчасти Bobcat 320 CANOPY ENCLOSURE KIT ACCESSORIES & OPTIONS

1

6810575

KIT Ref. 2-43 & 45-47

2

6680997

WINDOW RH sliding

3

6805888

PANEL RH Cab

4

6806460

WINDOW RH panel

5

15EM100

WASHER flat

6

6503451

SPACER

7

6809520

CROSSMEMBER

8

26GM6016

SCREW

9

6809527

WINDOW front

10

6809514

FRAME window

11

SEAL NLA - window - 166'' (4216,4 mm) long - use Ref. 12

12

6555351

SEAL bulk - sold per foot

13

6678022

BOLT carriage

14

6810949

SPACER

15

6810948

PLATE

16

6681614

KNOB handle

17

6809491

SEAL cab

18

6808577

SEAL cab

19

6808185

DECAL warning

20

61D7

NUT hex

21

27E6

WASHER 5 hardened plain

22

6628851

BRACKET striker - weld on

23

6664083

COVER striker pin

24

6649483

STRIKER BOLT

25

6807327

SAFETY TREAD

26

6810607

SEAL cab

27

SEAL NLA - cab - 58'' (1473 mm) long - use Ref. 28

28

6807611

SEAL bulk - sold per foot

29

6579398

DECAL warning

30

6809737

DECAL warning

31

6675386

SOCKET hold open

32

1C508

BOLT

33

6806459

WINDOW LH panel

34

6809523

PANEL LH side

35

35C412

BOLT

36

6809729

INSULATION

37

SEAL NLA - cab - 54'' (1371,6 mm) long - use Ref. 38

38

6675410

SEAL bulk - sold per foot

39

6809712

SEAL cab

40

6809513

PLATE weld on

41

6664172

WINDOW rear

42

6808882

ADHESIVE, URETHANE 10.5 fluid oz.

43

6987926

THREADLOCK, 242-MED STRENGTH BLUE -6L Was 6661648 - A

44

7102268

PRIMER 4.2 fluid oz. - not in kit - Was 6808881 - A

45

6674264

RETAINER NUT

46

26GM10030

BOLT

47

DOOR ASSY See Illustration OPERATOR CAB/ PE1005 - NLA - Order components - Was 6807782 - A

48

6901409

INSTRUCTIONS installation
